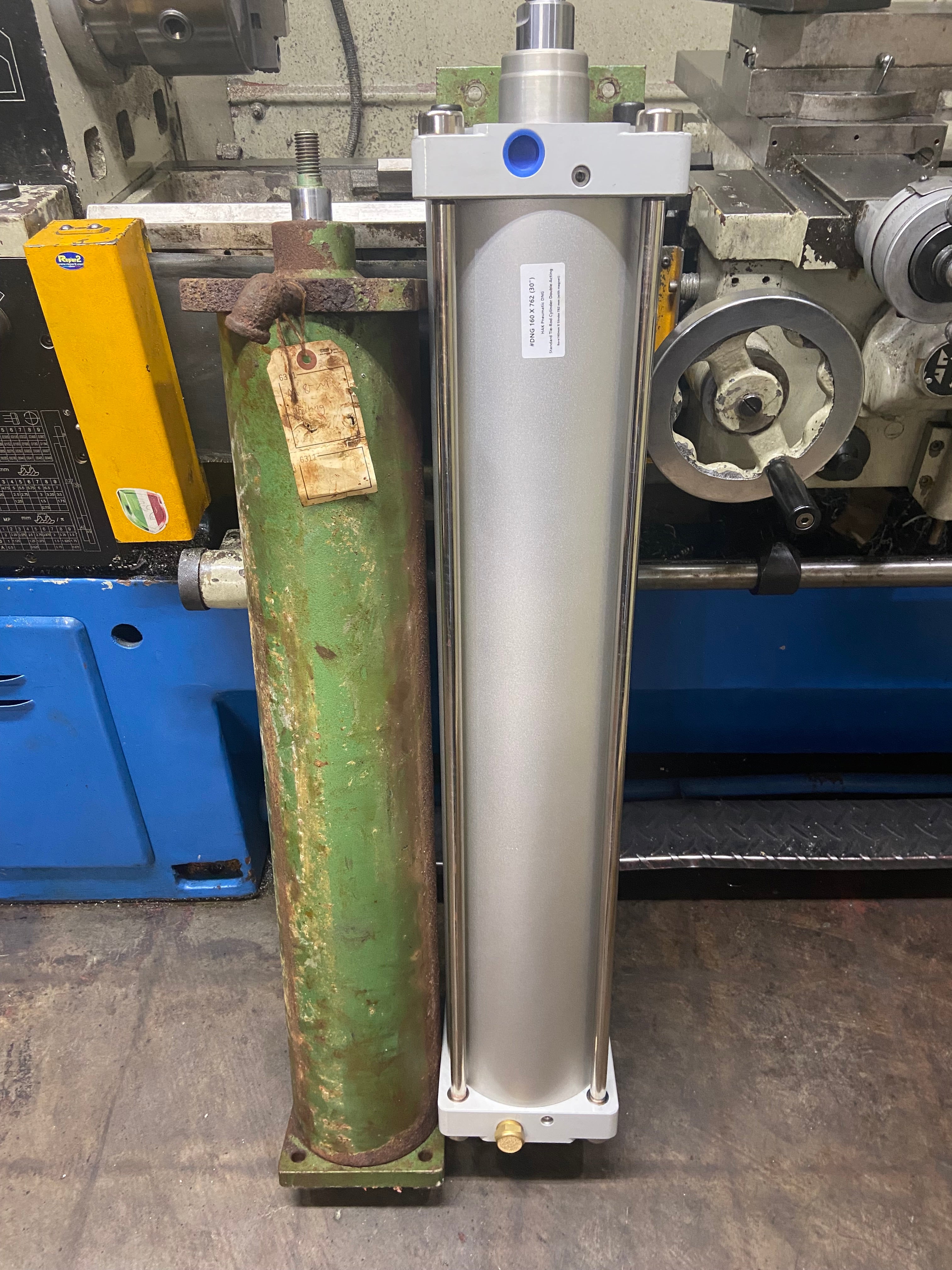

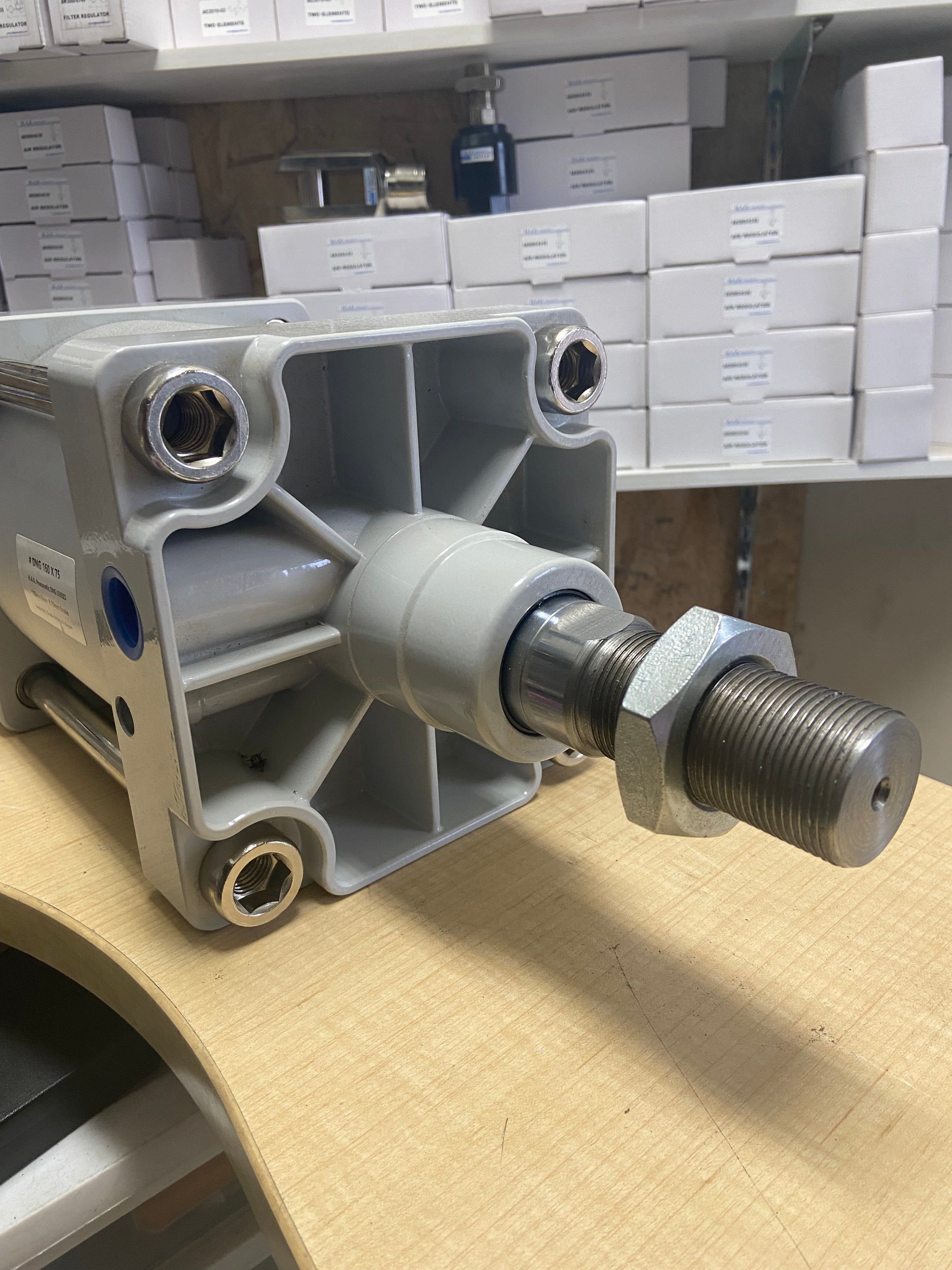

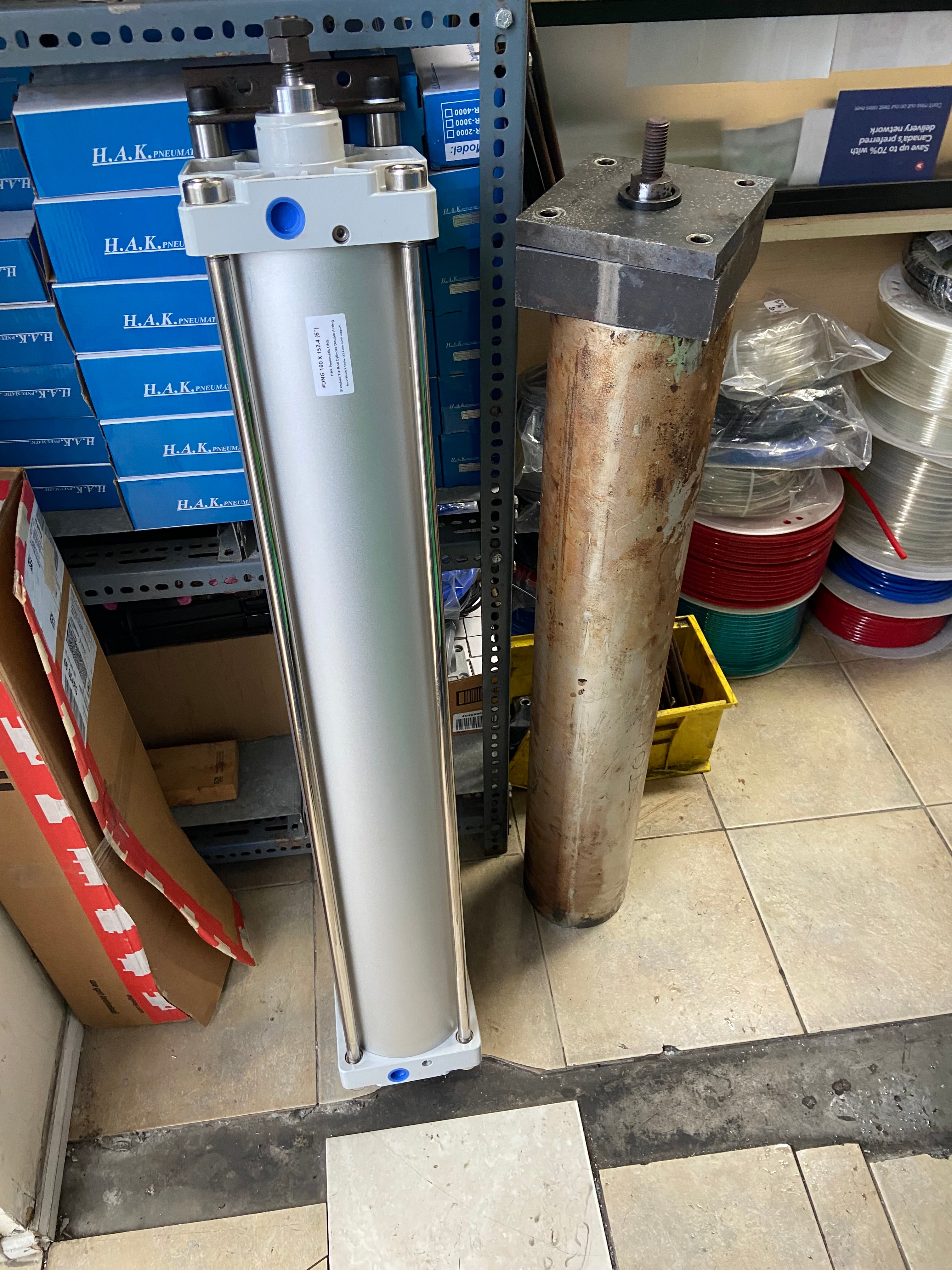

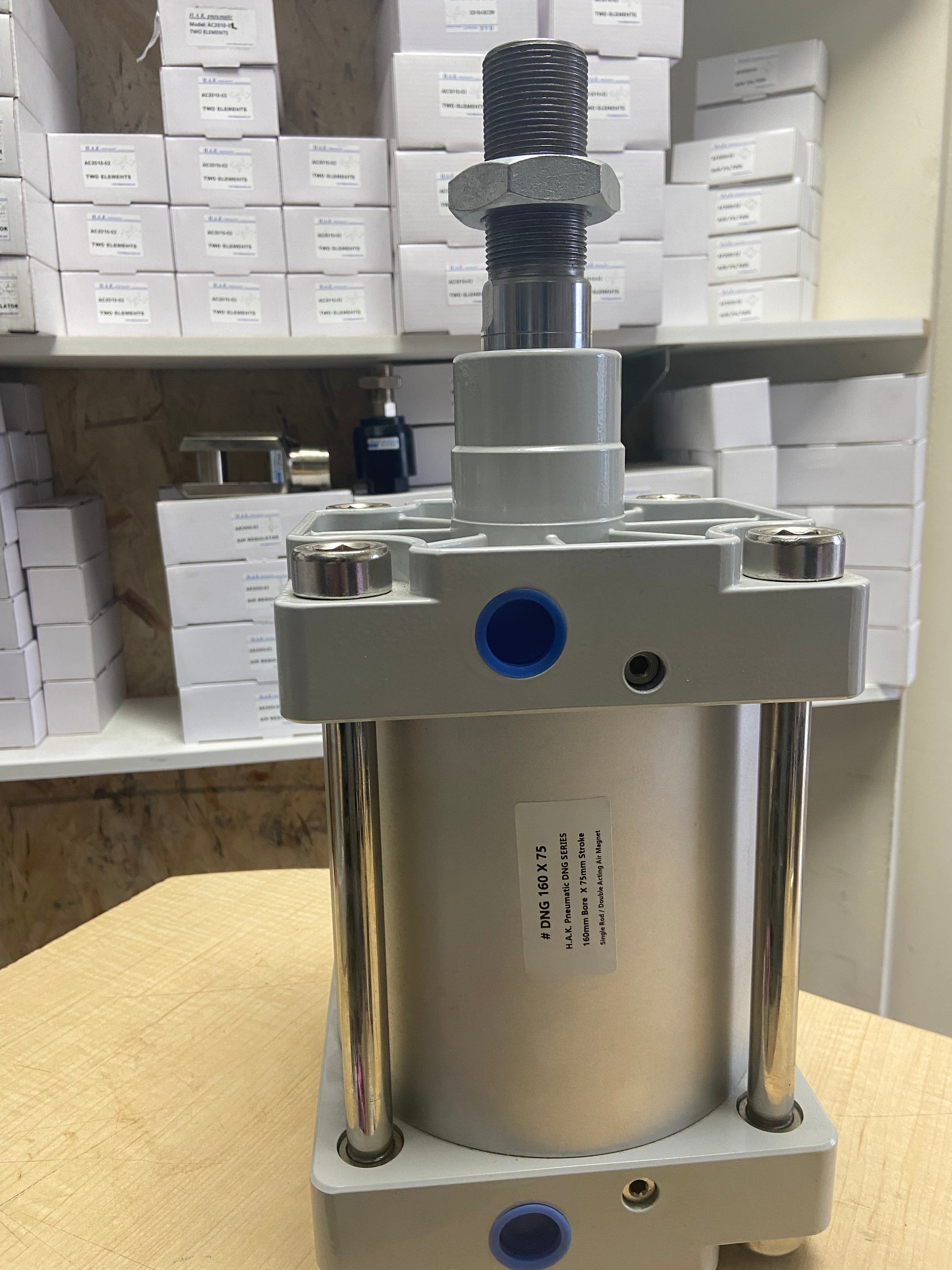

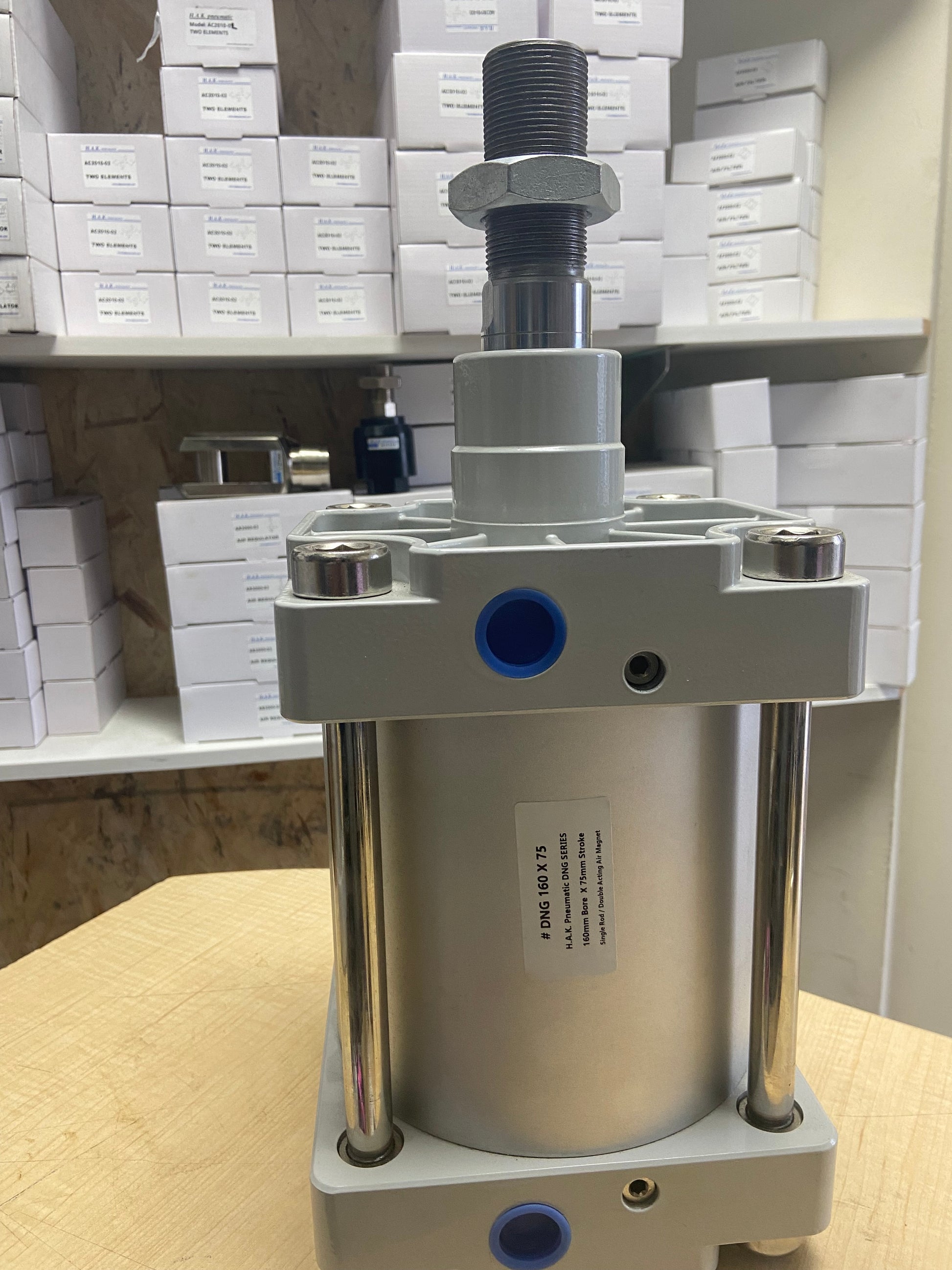

HAK Pneumatic DNG Series ISO 15552 Air Cylinder – 160mm Bore, Magnetic, Double Acting, ISO 6431 Standard Pneumatic Cylinder
Regular price
$372.09
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Internal Structure
| NUMBER | NAME | NUMBER | NAME |
|---|---|---|---|
| 1 | PISTON ROD | 8 | PISTON |
| 2 | HEXAGON NUT | 9 | Y RING |
| 3 | SHAFT SEAL | 10 | MAGNET |
| 4 | FRONT COVER | 11 | ANTI-FRICTION RING |
| 5 | COPPER TUBE | 12 | BARREL |
| 6 | CUSHION ADJUST SCREW | 13 | BACK COVER |
| 7 | CUSHION SEAL | 14 | O RING |
How to Order a Cylinder
| Series | Bore Size(mm) | X | Stroke(mm) | S | Mount |
|---|---|---|---|---|---|
| DNG | 160mm | X | 150mm | Magnet | CA |
Standard Stroke:
| Bore Size(mm) | Standard Stroke(mm) |
|---|---|
| 160mm | 25,40,50,80,100,125,160,200,250,320,400,500 |
For stroke lengths beyond 500mm, please contact us directly for pricing and availability.
Overall Dimensions
Specification
| Available Stroke | 25mm~ 500mm |
|---|---|
| Working Medium | Air |
| Working Pressure Range | 14.5 ~ 145 PSI |
| Insured Pressure Resistance | 195 PSI |
| Operating Temperature Range | (-50~70°C) |
| Operating Speed Range | 50~800 mm/s |
| Cylinder Type | Adjustable Cushion |
| Motion Pattern | Double Acting |
DNC Series Cylinder Accessories
Eye Bracket
| Item Number | S | T | DC | DD | DE | DJ | DQ |
|---|---|---|---|---|---|---|---|
| CA-160mm | 180 | 140 | 55 | 30 | 30 | 30 | 90 |
Clevis Bracket
| Item Number | CC | CD | CE | CJ | CP | CT | PA1 | PB1 | S | T |
|---|---|---|---|---|---|---|---|---|---|---|
| CB-160mm | 56 | 30 | 30 | 30 | 90 | 160 | 170 | 161.5 | 180 | 140 |
Front OR Rear Flange
| Item Number | AJ | AK | BA | BB | BC | BD | BE | BF | BH | BP | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CRFNG-160 | 25 | 16.5 | 63 | 20 | 180 | 115 | 280 | 230 | 12.5 | 18 | 140 |
Foot Mount Bracket
| Item Number | AA | AC | AD | AE | AF | AG | AH | AP | AT |
|---|---|---|---|---|---|---|---|---|---|
| HP-160mm | 328 | 288 | 20 | 180 | 115 | 60 | 115 | 18 | 8 |
Rod Clevis
| Item Number | Bore | CK | CM | KK | BL | LE | CE | ER | CL |
|---|---|---|---|---|---|---|---|---|---|
| SG-M36X2.0 | 160mm | 35 | 35 | M36X2.0 | 80 | 72 | 144 | 47 | 70 |
Rod End Bearing
| Item Number | Bore | PA | PB | PC | PD | PE | PF | PG | PH |
|---|---|---|---|---|---|---|---|---|---|
| SGS-M36X2.0 | 160mm | 43 | 80 | 35 | 56 | 125 | 165 | M36X2.0 | 16 |
Self-Aligning Rod Coupler
| Item Number | Bore | MA | MB | MC | MD | ME | MF | MG | MH | MI | MK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FK-M36X2.0 | 160 mm | 147 | 43 | 23 | 58 | 88 | 35 | 13.5 | 36 | M36X2.0 | 15 |
Reed Switch and Sensor
| Item Number | Description |
|---|---|
| HAK-DNG-2W-R-5M | Reed Switch with 5 Meter Cable |
| HAK-DNG-2W-R-0.3 | Reed Switch with 0.3 Meter Plug |
| HAK-DNG-3W-NPN-5M | NPN Sensor With 5 Meter Cable |
| HAK-DNG-3W-NPN-0.3 | NPN Sensor With 0.3 Meter Plug |
| HAK-DNG-3W-PNP-5M | PNP Sensor With 5 Meter Cable |
| HAK-DNG-3W-PNP-0.3 | PNP Sensor With 0.3 Meter Plug |
| HAK-DNG-2W-P-5M | Plug with 5 Meter Cable |
