HAK Pneumatic CU Free Installation Cylinder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

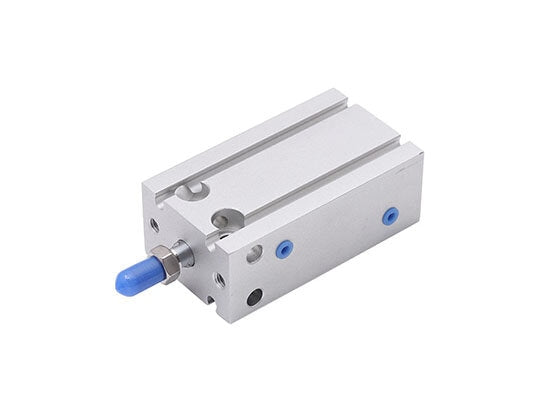

The CU Series Free Installation Cylinder is a highly versatile and space-saving pneumatic actuator featuring a square, bracket-free body that allows for direct mounting from multiple surfaces, including the top, bottom, and sides. This "free mount" design integrates the cylinder body and head to improve installation accuracy, enhance the parallelism of the piston rod, and provide high rigidity in compact automation environments. Available in bore sizes ranging from 6mm to 32mm and typically offering stroke lengths up to 50mm, the series supports double-acting and single-acting modes with options for non-rotating piston rods. Its lightweight aluminum construction, standard rubber bumpers for impact relief, and compatibility with built-in magnets for auto-switch position sensing make it an ideal choice for high-precision tasks in the electronics, printing, and robotics industries where space efficiency is critical.
Click to download CU Free Installation Cylinder Catalogue
