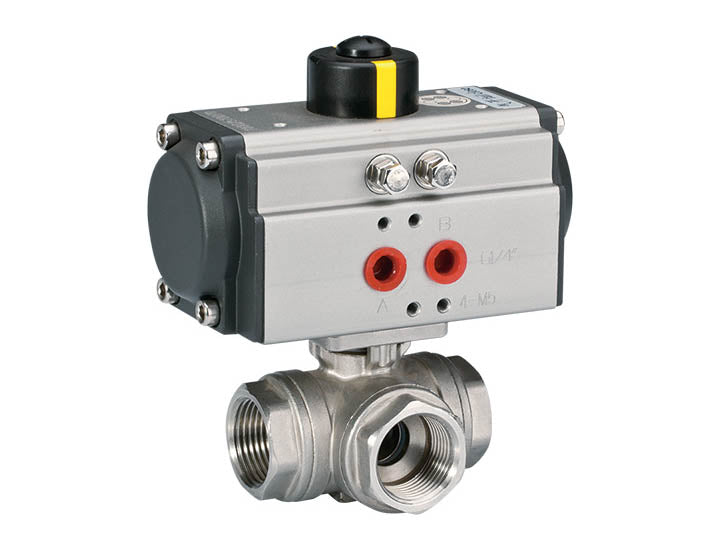

H.A.K. Pneumatic Three-way Stainless Steel Actuated Ball Valve - Double Acting
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Description
The HAK Pneumatic 3500 Series Air Actuated Ball Valve features a robust stainless steel 3-piece body, designed for long-lasting performance and easy maintenance with a slide-out center section. This three-way pneumatic actuated ball valve is ideal for automated flow control of air, gas, water, steam, and other industrial fluids in demanding environments.
Configured with a double-acting pneumatic actuator, the valve uses compressed air to both open and close, providing precise bi-directional control without relying on internal springs. This setup is ideal for systems that require consistent, powered actuation in both directions. The 3500 Series is available in both L-port and T-port flow configurations, offering flexible solutions for diverting, mixing, or isolating media based on application needs.
Compared to direct-acting valves, the 3500 Series delivers higher flow capacity, expanded pressure and temperature compatibility, and enhanced operational durability. Its reliable and efficient design makes it a trusted solution for industrial automation, chemical processing, and fluid handling systems where accurate flow routing is critical.
Construction/Specification
| Valve Type | 3-Way Ball Valve with Spring Return Actuator |
| Material: Body | 316 Stainless Steel / CF8M |
| Service Media | Air, Gas, Liquid, Water, Steam |
| Actuator Operating Pressure | 100 PSI Standard |
| Actuator Operating Pressure Range | 45 – 120 PSI |
| Seal Material | Teflon (PTFE) |
| Operating Pressure | 0 to 1000 PSI at 100 °F |
| Media Temperature | -51 to 230 °C (-60 to 450 °F) |
| Ambient Temperature | -20 to 80 °C (-4 to 176 °F) |
| L-port (Optional and same price) | Provides directional control between two outlets. Valve shifts flow from A→B or A→C using air pressure in both directions. Ideal for diverting applications. |
| T-port (optional and same price) | Enables flow mixing or distribution between three ports. Air pressure in both directions allows flow from A→B and A→C or isolation of one port. |
Sizing Information
| Item Number | Thread | Thread |
|---|---|---|
| HAK-3500-15-S-9 | 1/2" | 1/2" |
| HAK-3500-20-S-9 | 3/4" | 3/4" |
| HAK-3500-25-S-9 | 1" | 1" |
| HAK-3500-35-S-9 | 1-1/4" | 1-1/4" |
| HAK-3500-40-S-9 | 1-1/2" | 1-1/2" |
| HAK-3500-50-S-9 | 2" | 2" |
HAK Pneumatic 3500 Series Air Actuator – NAMUR Valve & Visual Indicator Compatible
The HAK Pneumatic 3500 Series air actuator is designed for direct integration with both 5-way NAMUR solenoid valves OR 5-way NAMUR air pilot valves, allowing seamless control without the need for additional mounting hardware.
Additionally 3500 Series actuator supports the installation of a Visual Position Indicator, providing a clear and immediate visual reference of valve open/closed status. This feature enhances operational safety and monitoring, especially in industrial automation and process control environments.
Together, the NAMUR-compatible valve interface and Visual indicator options make the 3000 Series actuator a versatile and high-performance solution for automated valve systems.
