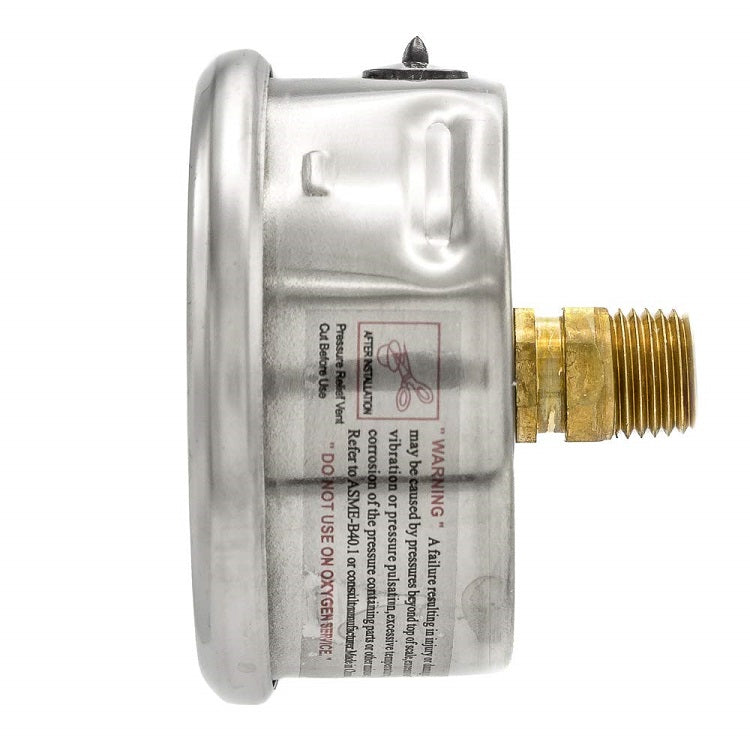

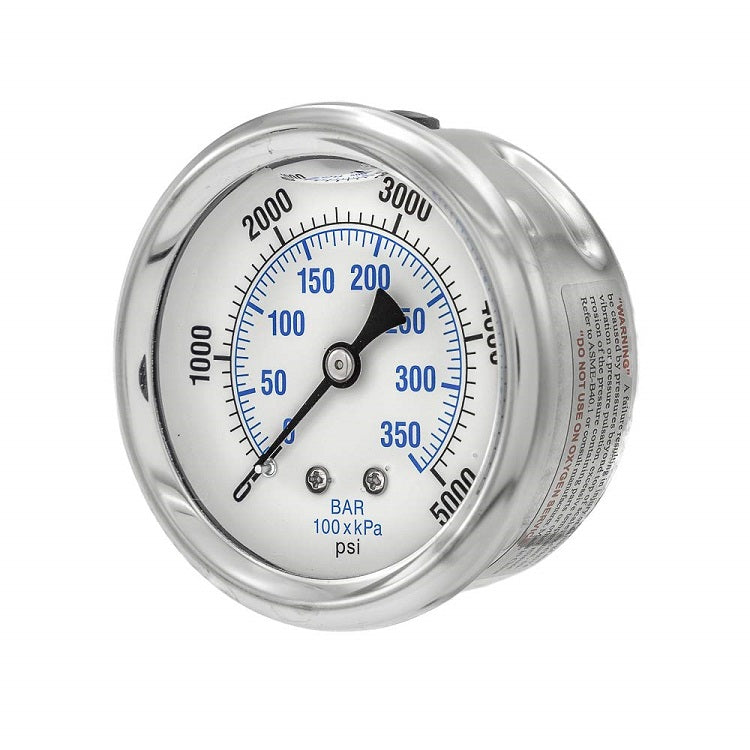

HAK Pneumatic Stainless Steel Housing Liquid Filled Pressure Gauge Central Back Mount
Regular price
$16.46
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
HAK PNEUMATIC CENTRAL BACK MOUNT PRESSURE GAUGE
HAK PNEUMATIC has a complete line of pneumatic Pressure Gauges. HAK PNEUMATIC PRESSURE GAUGE is widely used in machinery, petroleum, the chemical industry, metallurgy, mining, electric power, and other departments' brass connection thread.
Specification
| Min. pressure | 0-15 PSI / 0-1.03 BAR |
| Max. pressure | 0-15000 PSI / 0-1034 BAR |
| Dial Size | Ø 2.5" |
| Port Size (NPT) | 1/4” NPT |
| Mounting Type | Central Back |
| Gauge Type | Liquid Field |
| Connection | Brass |
| Working Temperature | -18°C~60°C |
| Accuracy | ±1.6% of Full Scale |
Additional Information
Central Back Mount
| Item Number | Dial Size | Pressure Range (PSI) | Port Size |
|
HAK-LPG25-30Hg-CBM
|
2.5" | 30Hg | 1/4" NPT |
| HAK-LPG25-15-CBM | 2.5" | 0-15 | 1/4" NPT |
| HAK-LPG25-30-CBM | 2.5" | 0-30 | 1/4" NPT |
| HAK-LPG25-60-CBM | 2.5" | 0-60 | 1/4" NPT |
| HAK-LPG25-100-CBM | 2.5" | 0-100 | 1/4" NPT |
| HAK-LPG25-160-CBM | 2.5" | 0-160 | 1/4" NPT |
| HAK-LPG25-200-CBM | 2.5" | 0-200 | 1/4" NPT |
| HAK-LPG25-300-CBM | 2.5" | 0-300 | 1/4" NPT |
| HAK-LPG25-400-CBM | 2.5" | 0-400 | 1/4" NPT |
| HAK-LPG25-600-CBM | 2.5" | 0-600 | 1/4" NPT |
| HAK-LPG25-1000-CBM | 2.5" | 0-1000 | 1/4" NPT |
| HAK-LPG25-1500-CBM | 2.5" | 0-1500 | 1/4" NPT |
| HAK-LPG25-2000-CBM | 2.5" | 0-2000 | 1/4" NPT |
| HAK-LPG25-3000-CBM | 2.5" | 0-3000 | 1/4" NPT |
| HAK-LPG25-5000-CBM | 2.5" | 0-5000 | 1/4" NPT |
| HAK-LPG25-10000-CBM | 2.5" | 0-10000 | 1/4" NPT |
| HAK-LPG25-15000-CBM | 2.5" | 0-15000 | 1/4" NPT |
