HAK Pneumatic Shuttle Valves ,ST Type , NPT Thread
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

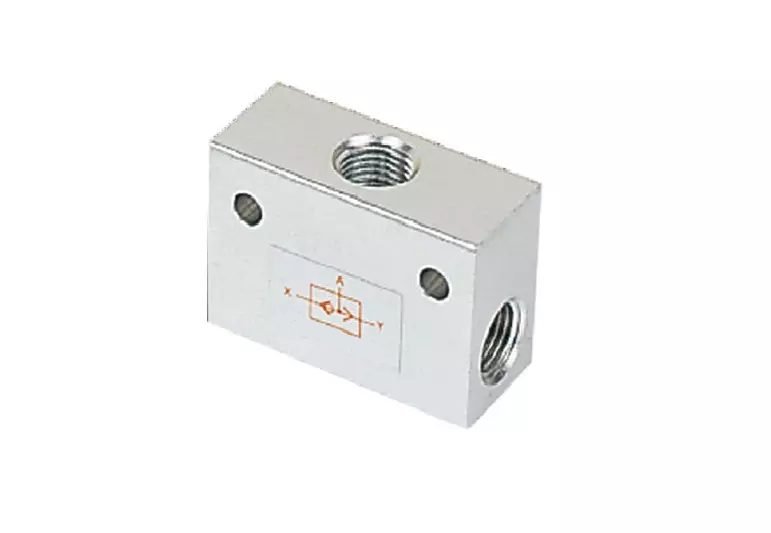

HAK PNEUMATIC SHUTTLE VALVE ST Type
HAK PNEUMATIC has a complete line of pneumatic Shuttle valveShuttle valves are designed to direct flow of fluid from two sources. A simple sealing element is designed and installed to move freely within the shuttle valve. When pressurized fluid enters the shuttle valve chamber the pressure of this fluid forces the shuttle sealing element to the opposite end of the chamber.When landed, the sealing element provides a shut off of the chamber from the second flow source, but allows flow through the middle opening The shuttle valve prevents backflow from one flow source to the other flow source
Construction/Specification
| TECHNICAL DATA | |
|---|---|
| Temperature | 0-60°C (32°-140°F) |
| Max. pressure | 174 PSI |
| Min. pressure | 7.25 PSI |
| Operating pressure | 0 - 145 PSI |
| Available Sizes | 1/8" - 1/4" - 3/8" - 1/2" NPT |
Dimensions
| NPT (thread) | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| ST-N01 (1/8" NPT) |
40 |
24 |
16 |
4.5 |
25 |
20.5 |
| ST-N02 (1/4" NPT) |
50 |
35 |
22 |
5.5 |
35 |
25 |
| ST-N03 (3/8" NPT) |
75 |
48 |
30 |
7 |
50 |
42 |
| ST-N04 (1/2" NPT) |
75 |
48 |
30 |
7 |
50 |
42 |
