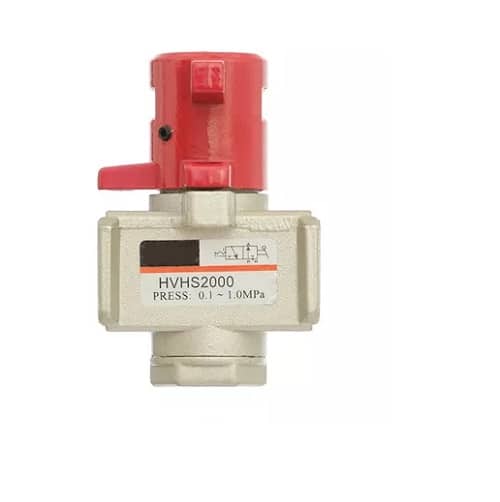

HAK Pneumatic Safety Shut Off/Lock Out Valve for 2000 Series 1/4" NPT, 5-125 PSI
Regular price
$39.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Dimensions
| Model | G, P Port (NPT) | R, Vent Port | Cv (In-out) | Cv (Out-Exh) | A | B | C | D | E | F | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HVHS2000-02 | 1/4" | R1/8" | 0.75 | 0.85 | 40 | 59 | 39 | 28 | 22 | 40 | 32 | 53 | Ø6 |
Description
HAK Pneumatic safety lock-out valve, also known simply as a safety lockout valve, is a type of valve used in pneumatic systems to ensure the safety of personnel and equipment. These valves are designed to isolate and lock out the flow of compressed air or other pneumatic fluids to a specific piece of equipment or a pneumatic system as a whole. They are commonly used in industrial settings where machinery and equipment are powered by compressed air.Specification
| Model | HVHS2000-02 |
|---|---|
| Port Size | NPT 1/4″ |
| Working-pressure | 21.75～116 PSI |
| Working Tempreture | -20～ 70℃ |
| Effective Cross Section Area | 30 mm² (CV = 1.68) |
| Pressure relief | 3 port valve |
| Suitable for | 2000 series AR/AF/AW/AL |
