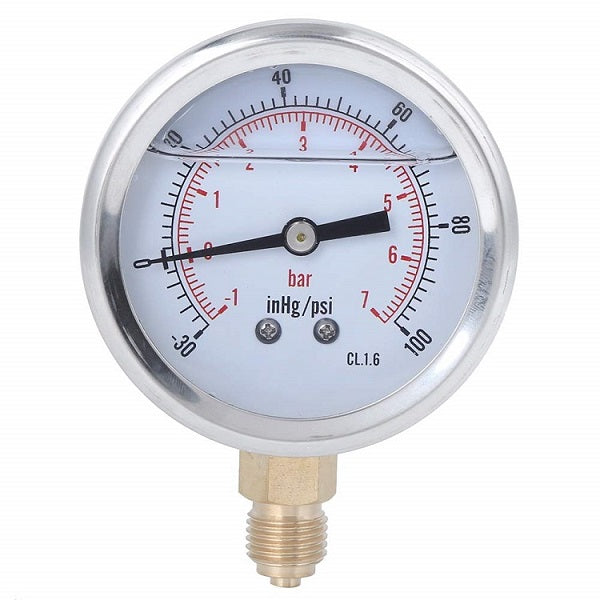

HAK Pneumatic Stainless Steel housing Liquid Filled Lower Bottom Mount Pressure Gauge (SAE Thread)
Regular price
$16.60
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
HAK PNEUMATIC LOWER BOTTOM MOUNT PRESSURE GAUGE
HAK PNEUMATIC has a complete line of pneumatic Pressure Gauges.HAK PNEUMATIC PRESSURE GAUGE is widely used in machinery, petroleum, the chemical industry, metallurgy, mining, electric power, and other departments.NPT connection thread.Construction/Specification
| TECHNICAL DATA | |
|---|---|
| Min. pressure | 0-160 PSI / 0-11.03 BAR |
| Max. pressure | 0-10000 PSI / 0-689.47 BAR |
| Dial Size | Ø 2.5" |
| Port Size (SAE Thread) | 1/4” |
| Mounting Type | lower Bottom |
| Gauge Type | Liquid Field Pressure Gauge |
| Connection | Brass |
| Working Temperature | -18°C~60°C |
| Accuracy | ±2.5% of Full Scale |
| Housing | Stainless Steel |
Additional Information
Lower Bottom Mount
| Item Number | Dial Size | Pressure Range (PSI) | Port Size |
HAK-LPG25-160-S-LM |
2.5" | 0-160 | 1/4" |
HAK-LPG25-500-S-LM |
2.5" | 0-500 | 1/4" |
HAK-LPG25-1000-S-LM |
2.5" | 0-1000 | 1/4" |
HAK-LPG25-1500-S-LM |
2.5" | 0-1500 | 1/4" |
HAK-LPG25-2000-S-LM |
2.5" | 0-2000 | 1/4" |
HAK-LPG25-3000-S-LM |
2.5" | 0-3000 | 1/4" |
HAK-LPG25-5000-S-LM |
2.5" | 0-5000 | 1/4" |
HAK-LPG25-10000-S-LM |
2.5" | 0-10000 | 1/4" |
