HAK Pneumatic

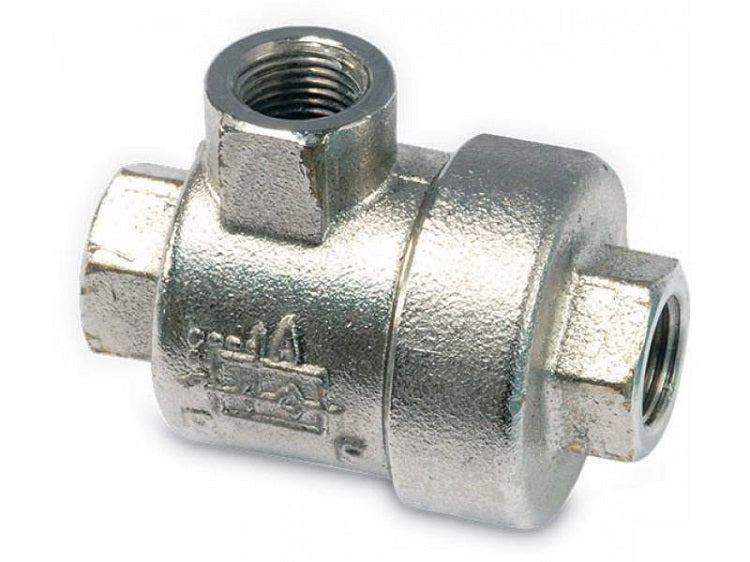

HAK Pneumatic Cylinder Quick Exhaust Valve, NPT Thread

$47.98
Port Size

Use this text to encourage communication or promote sharing on social networks.

You can also add links

HAK PNEUMATIC QUICK EXHAUST VALVES

HAK PNEUMATIC has a complete line of pneumatic Quick exhaust valves.Quick exhaust valves (QEV) increase cylinder rod speed by dumping exhaust air directly at the cylinder instead of back through the control valve. Use one QEV in each cylinder port to increase rod speed in both directions. Using a quick exhaust valve to increase cycling speed allows a smaller, less expensive control valve to be used.

Construction/Specification

71
TECHNICAL DATA
Temperature 0-80°C (32°-176°F)
Max. pressure 174 PSI
Min. pressure 7.25 PSI
Operating pressure 0 - 145 PSI
Available Sizes 1/8" - 1/4" - 3/8" - 1/2" NPT

Dimensions

71
Cod. Ref. F I H H1 CH CH1 E Conf.
QEA-06 (1/8" NPT) 500/A 1/8 8 42 28 14 14 19.5 10
QEA-08 (1/4" NPT) 500/A 1/4 11 53 34.5 19 19 25 10
QEA-10 (3/8" NPT) 500/A 3/8 12 58 36 21 21 26 5
QEA-15 (1/2" NPT) 500/A 1/2 14 71 44 26 26 35 5
