HAK Pneumatic

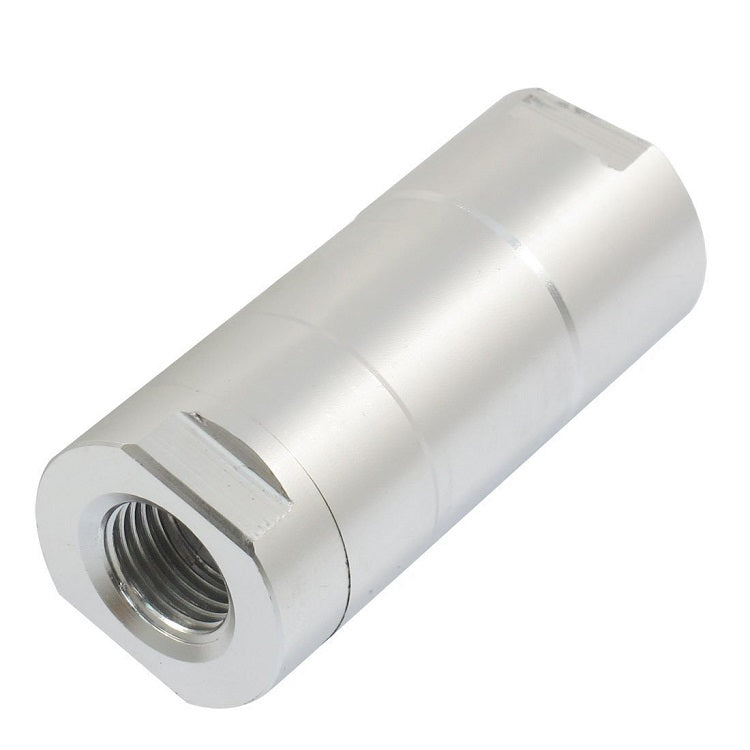

HAK Pneumatic KA Series Check Valve - Available in Various NPT Thread Sizes

$29.16
Port Size

Use this text to encourage communication or promote sharing on social networks.

You can also add links

HAK PNEUMATIC ALUMINIM KA Type CHECK VALVE

HAK PNEUMATIC has a complete line of pneumatic CHECK VALVE

A check valve allows the flow of air in and prevents it from going out. They are often simply just called one-way air valves. The most common application is for an air compressor. They allow the compressor to keep certain parts pressurized and other parts de-pressurized.

Construction/Specification

H7ce48c09a9d0463581766d93a73bc337E
TECHNICAL DATA
Temperature 0-80°C (32°-176°F)
Max. pressure 174 PSI
Min. pressure 7.25 PSI
Operating pressure 0 - 145 PSI
Available Sizes 1/8" - 1/4" - 3/8" - 1/2" NPT

Dimensions

H7ce48c09a9d0463581766d93a73bc337E
Cod. F L O.D. Diameter
KA-06 (1/8" NPT) 1/8 58.25 24.22
KA-08 (1/4" NPT) 1/4 58.25 24.22
KA-10 (3/8" NPT) 3/8 71.78 36.25
KA-15 (1/2" NPT) 1/2
71.78
36.25
