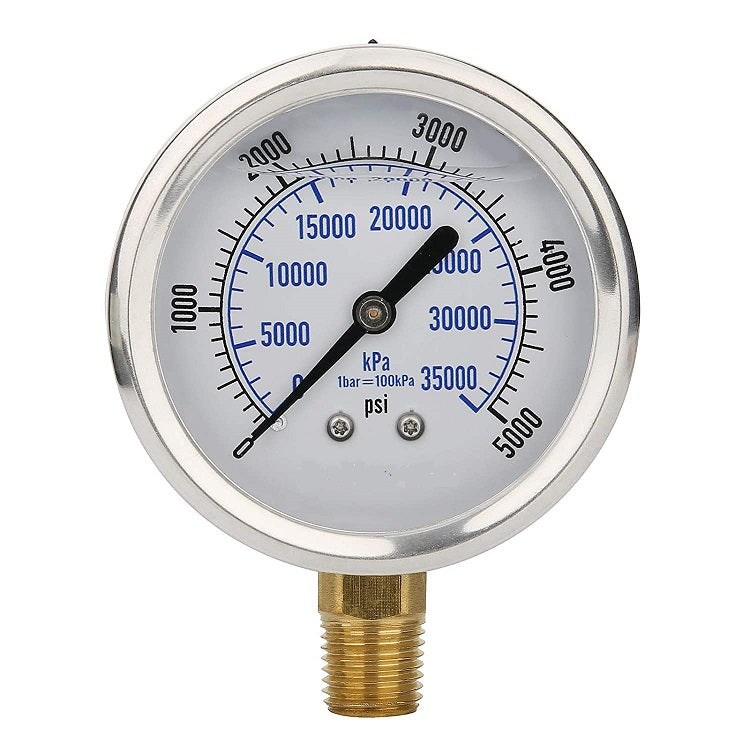

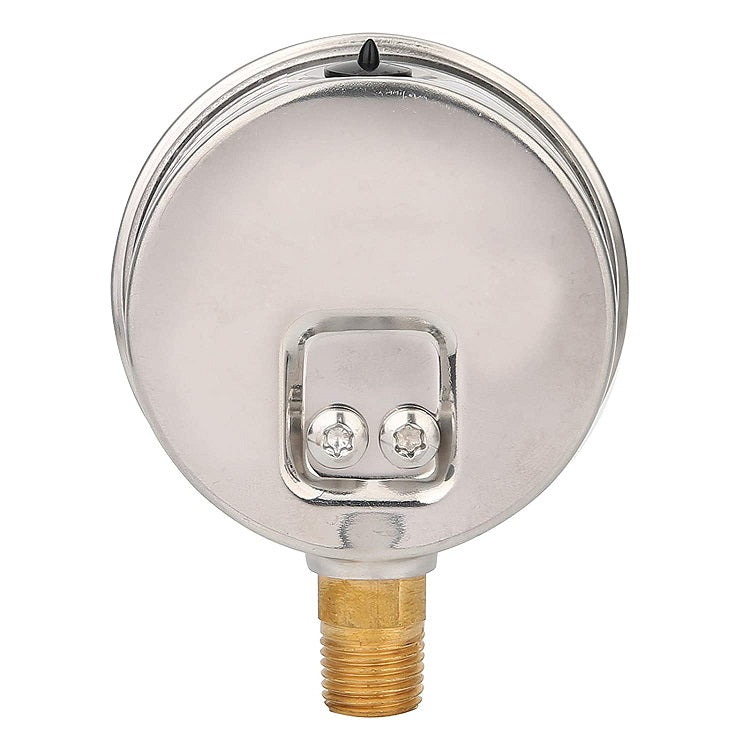

HAK Pneumatic Stainless Steel Housing Liquid Filled Pressure Gauge lower bottom Mount
Regular price
$15.84
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
HAK PNEUMATIC LOWER BOTTOM MOUNT PRESSURE GAUGE
HAK PNEUMATIC has a complete line of pneumatic Pressure Gauges. HAK PNEUMATIC PRESSURE GAUGE is widely used in machinery, petroleum, the chemical industry, metallurgy, mining, electric power, and other departments. NPT Brass connection thread.
Construction/Specification
| TECHNICAL DATA | |
|---|---|
| Min. pressure | 0-15 PSI / 0-1.03 BAR |
| Max. pressure | 0-15000 PSI / 0-1034 BAR |
| Dial Size | Ø 2.5" / 4" |
| Port Size (NPT) | 1/4” |
| Mounting Type | Lower Bottom |
| Gauge Type | Liquid Field |
| Connection | Brass |
| Working Temperature | -18°C~60°C |
| Accuracy | ±1.6% of Full Scale |
Additional Information
Lower Bottom Mount
| Item Number | Dial Size | Pressure Range (PSI) | Port Size |
|
HAK-LPG25-30Hg-LM
|
2.5" | 30Hg | 1/4" |
|
HAK-LPG25-15-LM
|
2.5" | 0-15 | 1/4" |
|
HAK-LPG25-30-LM
|
2.5" | 0-30 | 1/4" |
|
HAK-LPG25-60-LM
|
2.5" | 0-60 | 1/4" |
|
HAK-LPG25-100-LM
|
2.5" | 0-100 | 1/4" |
|
HAK-LPG25-160-LM
|
2.5" | 0-160 | 1/4" |
|
HAK-LPG25-200-LM
|
2.5" | 0-200 | 1/4" |
|
HAK-LPG25-300-LM
|
2.5" | 0-300 | 1/4" |
|
HAK-LPG25-400-LM
|
2.5" | 0-400 | 1/4" |
|
HAK-LPG25-500-LM
|
2.5" | 0-500 | 1/4" |
|
HAK-LPG25-600-LM
|
2.5" | 0-600 | 1/4" |
|
HAK-LPG25-1000-LM
|
2.5" | 0-1000 | 1/4" |
|
HAK-LPG25-1500-LM
|
2.5" | 0-1500 | 1/4" |
|
HAK-LPG25-2000-LM
|
2.5" | 0-2000 | 1/4" |
|
HAK-LPG25-3000-LM
|
2.5" | 0-3000 | 1/4" |
|
HAK-LPG25-5000-LM
|
2.5" | 0-5000 | 1/4" |
|
HAK-LPG25-6000-LM
|
2.5" | 0-6000 | 1/4" |
|
HAK-LPG25-10000-LM
|
2.5" | 0-10000 | 1/4" |
|
HAK-LPG25-15000-LM
|
2.5" | 0-15000 | 1/4" |
|
HAK-LPG40-160-LM
|
4" | 0-160 | 1/4" |
|
HAK-LPG40-200-LM
|
4" | 0-200 | 1/4" |
|
HAK-LPG40-300-LM
|
4" | 0-300 | 1/4" |
|
HAK-LPG40-600-LM
|
4" | 0-600 | 1/4" |
