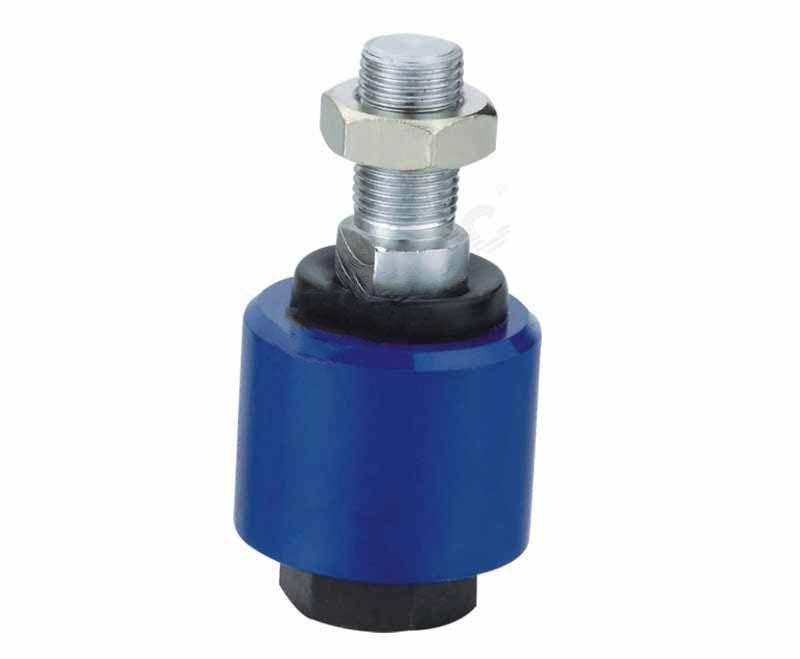

HAK Pneumatic Self Aligning Rod Coupler For ISO 15552 Series Air Cylinder
Regular price
$15.64
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Overall Dimensions
| Item Number | Bore | MA | MB | MC | MD | ME | MF | MG | MH | MI | MK |
| FK-M10X1.25 | 32mm | 58 | 22 | 7 | 21 | 26 | 11.5 | 7 | 10 | M10X1.25 | 12 |
| FK-M12X1.25 | 40mm | 58 | 22 | 8 | 21 | 28 | 11.5 | 8 | 12 | M12X1.25 | 12 |
| FK-M16X1.25 | 50mm | 90 | 27 | 10 | 41 | 44.5 | 20 | 10 | 17 | M16X1.5 | 7 |
| FK-M16X1.25 | 63mm | 90 | 27 | 10 | 41 | 44.5 | 20 | 10 | 17 | M16X1.5 | 7 |
| FK-M20X1.25 | 80mm | 102 | 29 | 13 | 46 | 53 | 24 | 13 | 22 | M20X1.5 | 10 |
| FK-M20X1.25 | 100mm | 102 | 29 | 13 | 46 | 53 | 24 | 13 | 22 | M20X1.5 | 10 |
| FK-M27X1.25 | 125mm | 147 | 54 | 13 | 64 | 62 | 39 | 14 | 30 | M27X2.0 | 9 |
