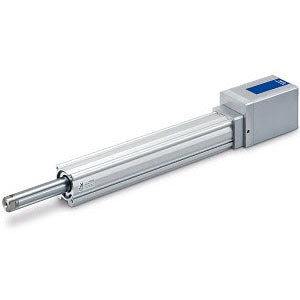

The EQY rod offers the same form and capability of the LEY electric actuator, but with an integrated motor controller. Simplified movement mimics a pneumatic cylinder, with two end of stroke positions plus a user-defined intermediate position. Save space while reducing programming labor and wiring complexity. Easier setting modes are available for speed, acceleration, and cycle time. Operation can be tested immediately after setting, along with graphical confirmation of the cycle. M12 cable connectors at the motor enclosure offer strength, security and standardization. EQ series motors are high performance with battery-less absolute encoders.
- Body sizes: 16, 25, 32
- Maximum work load: 100 kg (horizontal); 46 kg (vertical)
- Maximum pushing force: 707 N
- Maximum speed: 900 mm/s
- Maximum stroke: 500mm
- Positioning repeatability: ±0.02mm
