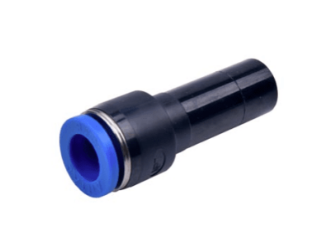

HAK Pneumatic EPGJ SERIES "Push to Connect Plug-in Reducer"
Regular price
$2.36
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
PUSH IN FITTINGS, PNEUMATIC PUSH IN FITTINGS.
The push-in fittings (also called pneumatic push-in fittings, push-to-connect fittings, and one-touch fittings in some locations).Inside the push-in fittings, stainless steel tube gripping claw, collar, and release sleeve (collet) are assembled to offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing with no tools necessary.PUSH IN FITTINGS WITH METRIC AND INCH SIZE TUBE, NPT CONNECTION THREAD.
H.A.K. NPT thread push-in fittings cover a complete line of types, models, and sizes to satisfy various tube demands.H.A.K. push-to-connect fittings are designed for use with soft and stiff tubing, such as nylon and polyethylene tubing.H.A.K. push-in fittings are designed for use with nylon and polyethylene tubing that accommodate metric tubing O.D. ranging from 4mm to 16mm and accommodate inch tubing from 1/8” to 1/2”. Thread sizes range from 1/8” NPT to 1/2” NPT.Construction/Specification
| Fluid | Air, Vacuum |
|---|---|
| Operating Pressure | 0～145 PSI |
| Max Pressure | 174 PSI |
| Operating Temperature | 5～60℃ |
| Applicable Tube | PU Polyurethane and Nylon |
Dimensions
| Model | Tube O.D. D1 | Tube O.D. D2 | C | E | L | H | H1 |
|---|---|---|---|---|---|---|---|
| EPGJ 06-04 | 6 | 4 | |||||
| EPGJ 08-04 | 8 | 4 | |||||
| EPGJ 08-06 | 8 | 6 | |||||
| EPGJ 10-06 | 10 | 6 | |||||
| EPGJ 10-08 | 10 | 8 | |||||
| EPGJ 12-08 | 12 | 8 | |||||
| EPGJ 12-10 | 12 | 10 |
Learn More: Assembly Instructions
