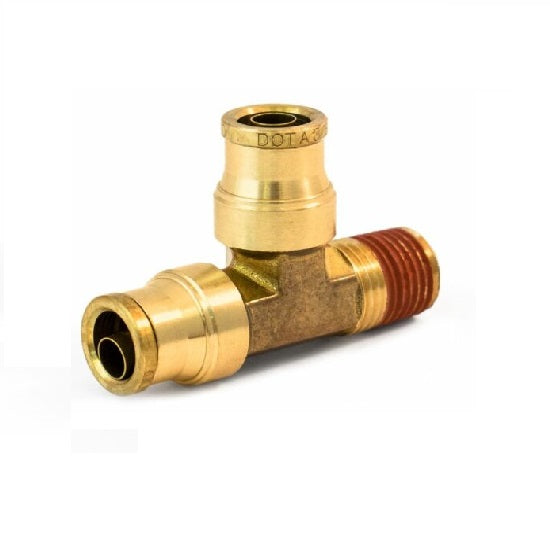

HAK Pneumatic DPD SERIES D.O.T Brass "Push to Connect Run Tee NPT Male"
Regular price
$17.38
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
D.O.T. Air Brake Pneumatic Push-In Fittings
Push-in fittings, also referred to as pneumatic push-in fittings, push-to-connect fittings, or one-touch fittings, are essential components in pneumatic systems, designed for ease of use and reliability.Each fitting features a brass tube-gripping claw, collar, and release sleeve (collet), offering a secure hold and a quick-release mechanism. This design ensures effortless tubing installation and removal without the need for tools, minimizing downtime.H.A.K. NPT-threaded push-in fittings are available in a comprehensive range of types, models, and sizes to meet diverse tubing requirements.- Compatible Tubing: These fittings are specifically designed for use with nylon tubing only, ensuring a reliable and secure connection. They accommodate inch-sized tubes ranging from 5/32” to 3/4”, with thread sizes from 1/16” NPT to 3/4” NPT.
- Durability: Crafted from high-quality materials, H.A.K. push-in fittings resist corrosion, delivering reliable performance in harsh environments.
- Vibration Resistance: Engineered to withstand vibrations commonly encountered in automotive and industrial applications, these fittings provide secure and dependable connections.
Construction/Specification
| Fluid | Air, Water and Other Fluid |
|---|---|
| Operating Pressure | 29.5 in Hg ~ 300 PSI |
| Operating Temperature | -40°C to 93°C (-40°F to 200°F) |
| Applicable Tube | PA Nylon |
| Material | Brass |
Dimensions
| Model | Tube O.D. | R | ||||
|---|---|---|---|---|---|---|
| DPD 1/4-01 | 1/4" | 1/8" NPT | ||||
| DPD 1/4-02 | 1/4" | 1/4" NPT | ||||
| DPD 3/8-02 | 3/8" | 1/4" NPT | ||||
| DPD 3/8-03 | 3/8" | 3/8" NPT | ||||
| DPD 1/2-03 | 1/2" | 3/8" NPT | ||||
| DPD 1/2-04 | 1/2" | 1/2" NPT |
Learn More: Assembly Instructions
