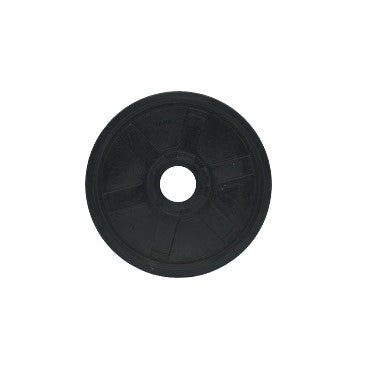

HAK Pneumatic DK Repair Seal Kits NBR Rubber-Double Acting Piston Repair Seal
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
OVERALL DIMENSIONS
| BORE DIAMETER | INSIDER DIAMETER | RING WIDTH | RING WIDTH | RING WIDTH | THIKNESS |
|---|---|---|---|---|---|
| d | B | b1 | b2 | t | |
| 32.0mm40.0mm | 8.0mm8.0mm | 15.0mm18.0mm | 3.6mm4.6mm | 6.0mm7.0mm | 3.0mm4.0mm |
| 50.0mm63.0mm80.0mm | 10.0mm16.0mm16.0mm | 18.0mm22.0mm24.0mm | 4.6mm5.6mm5.6mm | 4.0mm5.0mm5.0mm | 4.0mm5.0mm5.0mm |
| 100.0mm125.0mm | 20.0mm20.0mm | 26.0mm26.0mm | 6.6mm7.4mm | 6.0mm6.0mm | 6.0mm6.0mm |
| 160.0mm200.0mm | 27.0mm27.0mm | 30.0mm30.0mm | 9.5mm12.0mm | 8.0mm10.0mm | 8.0mm10.0mm |
SPECIFICATION
| Product Name | DK Compressor Pneumatic Seal |
|---|---|
| Material | Metal + NBR |
| Color | Black |
| Hardness | 71 ± 2A Shore |
| Working Pressure | ≤174 PSI |
| Working Speed | ≤1m/s |
| Working Temperature | -30ºC~+100ºC |
| Product Advantages | 1. Ready to fit complete piston2. Wide range of dimensions3. Low friction and smooth running due to sealing lip geometry4. Long service life5. Economical sealing solution |
