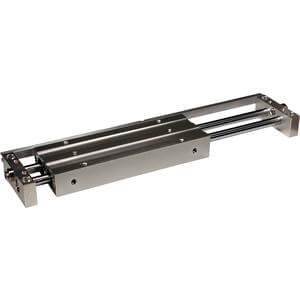

CX2, Dual Piston, Double Rod with Slide Unit

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The CX2 Series is a dual piston, double rod slide unit that offers high non-rotating accuracy and smooth operation. Its compact design and low profile can accommodate applications that require minimal space. Through-holes are in the housing for body mounting or for direct load positioning.

  • Bore sizes: 10, 15, 25mm
  • Non-rotating accuracy: ± 0.1¡ (10 mm bore), ± 0.02¡ (25 mm bore)
  • Adjustable stroke option, +2 to -25 mm adjustment range
  • Hollow piston rod option
  • Auto switch capable
  • Air-hydro type available
