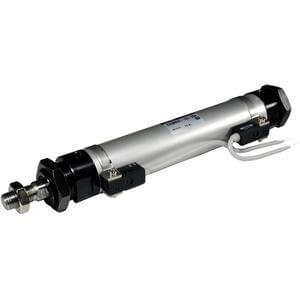

CH(D)M, Round Type, Low Pressure Hydraulic Cylinder, 20-40mm Bore

Use this text to encourage communication or promote sharing on social networks.

You can also add links

CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types. Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available, depending on the series, from 20 to 160. Auto switches are available on most models.

  • Round type low pressure hydraulic cylinder
  • Bore sizes (mm): 20, 25, 32, 40
  • Standard strokes (mm): 25 to 800
  • 3.5MPa
  • 5 mounting types
  • Auto switch capable
