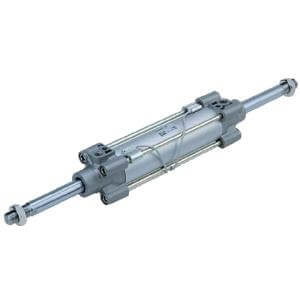

C96S(D), ISO 15552 Cylinder, Double Acting, Single/Double Rod, 125 Bore
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Series C96 cylinders conform to ISO 15552. The series is available with a single or double rod in 6 bore sizes from ¿32 to ¿125mm. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. Standard strokes range from 25 to 800mm.
- Double acting, standard type, single or double rod
- Bore size (mm): 125
- Standard stroke up to 800mm
- Auto switch capable
