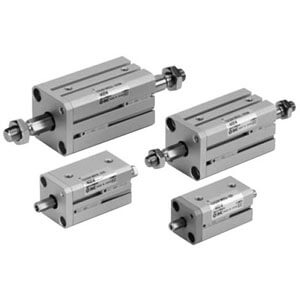

C(D)QSKW, Non-rotating Rod Type, Double Acting, Double Rod
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The CQSKW double non-rotating rod, double acting version of the compact cylinder is available for those small bore cylinder applications where saving space is a concern. The CQSKW offers standard strokes up to 50mm. Both switch capable and non-switch capable body styles are the same, and switches can be mounted on three (12-16 bore) and four (20-25 bore) sides.
- Non-rotating rods at both ends of cylinder
- Bore size: 12, 16, 20, 25 (mm)
- Strokes from 5mm through 50mm depending upon bore size
- Mounts: through hole/both ends tapped, foot, flange
- Variety of switches and lead wire lengths
