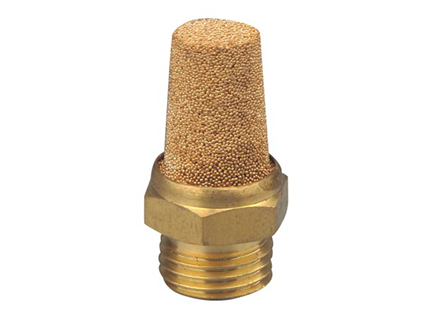

HAK Pneumatic BSL SERIES "Sintered Bronze Cone Muffler NPT"
Regular price
$11.24
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
H.A.K. pneumatic silencers and air mufflers.
For NPT connection thread.H.A.K. has a complete line of pneumatic air silencers that are made of sintered bronze.Pneumatic silencers and plastic mufflers are used on the exhaust of valves to reduce the noise and prevent dust, metal chips, abrasive grits and other contaminates from entering open exhaust ports and causing premature valve failure.Construction/Specification
| Fluid Admitted | Air, Vacuum, Water (no freezing) |
|---|---|
| Body material | Brass, Polyethylene Plastic, Stainless Steel |
| Thread Material | Brass, Polyethylene Plastic, Stainless Steel |
| Working Pressure | 0～150 PSI |
| Proof Pressure | 174 PSI |
| Negative Pressure | 100Kpa, -29.5 In Hg |
| Working Temperature | -10℃-80℃, 14°F-176°F |
Dimensions
| Model | G | L1 | L2 | HAX |
|---|---|---|---|---|
| BSL-M5 | M5 | 4 | 18 | 8 |
| BSL-01 | NPT1/8" | 6 | 24 | 12 |
| BSL-02 | NPT1/4" | 7.5 | 30 | 15 |
| BSL-03 | NPT3/8" | 9 | 39 | 19 |
| BSL-04 | NPT1/2" | 10.5 | 46 | 22 |
| BSL-06 | NPT3/4" | 11 | 55 | 27 |
| BSL-1 | NPT 1" | 14 | 70 | 34 |
