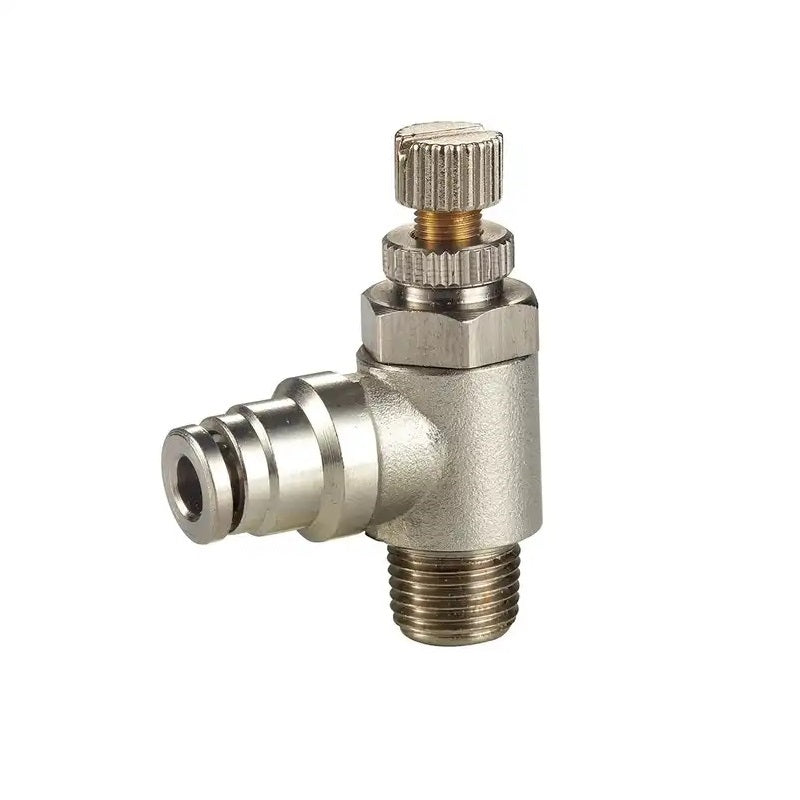

HAK Pneumatic BMJSC SERIES Nickel Plated Brass "Push to Connect Speed Control METER OUT Imperial Tube x NPT Male"
Regular price
$13.95
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
BMJSC series flow control valve / speed controller for metric and inch size tube, NPT connection thread.
HAK Pneumatic speed controller valve capable of adjusting the speed or the flow rate of compressed air. The speed controller bodies can be rotated after installation to allow for variation in piping direction.
Composite right angle flow control-out valves (pneumatic fittings – meter-out speed controllers) adjust the speed for air flow from thread to tubing.
Construction/Specification
| Fluid | Air, Vacuum |
|---|---|
| Operating Pressure | 0～145 PSI |
| Operation Vacuum | -29.5 in Hg |
| Max Pressure | 174 PSI |
| Operating Temperature | 5～60℃ |
| Applicable Tube | PU Polyurethane and Nylon |
Sizing Information
| Item Number | Tube O.D. | Thread |
|---|---|---|
| BMJSC 1/4"-U10 | 1/4" | 10-32UNF |
| BMJSC 1/4"-1/8" | 1/4" | 1/8" NPT |
| BMJSC 1/4"-1/4" | 1/4" | 1/4" NPT |
| BMJSC 5/16"-1/8" | 5/16" | 1/8" NPT |
| BMJSC 5/16"-1/4" | 5/16" | 1/4" NPT |
| BMJSC 5/16"-3/8" | 5/16" | 3/8" NPT |
| BMJSC 3/8"-1/4" | 3/8" | 1/4" NPT |
| BMJSC 3/8"-3/8" | 3/8" | 3/8" NPT |
Learn More: Assembly Instructions
