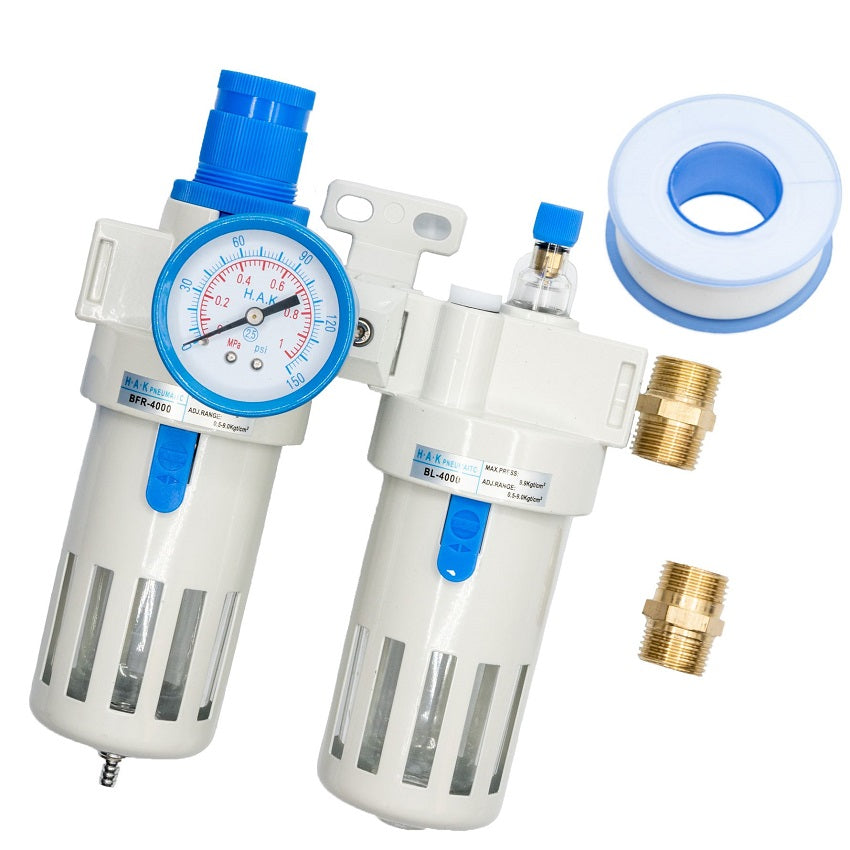

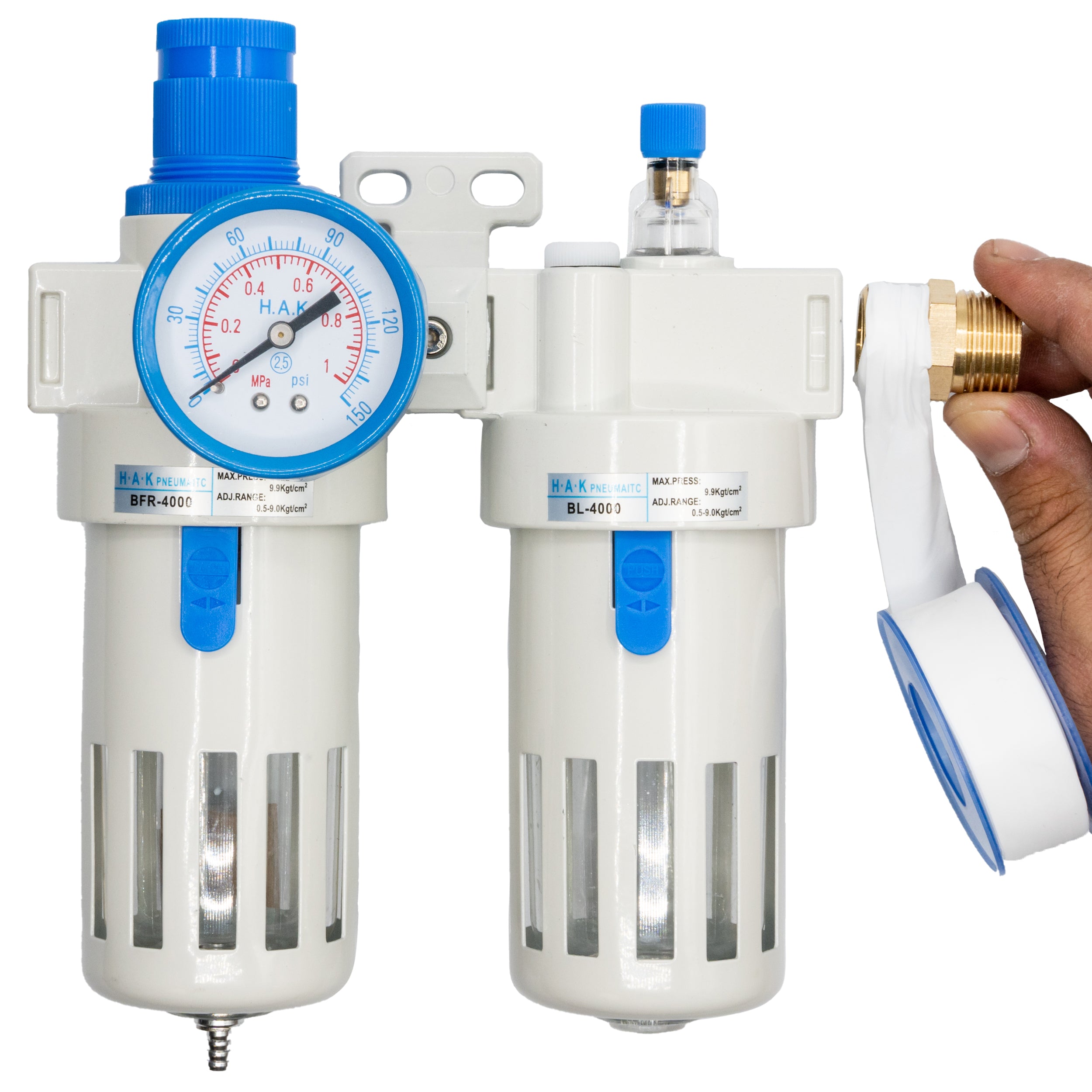

Filter-Regulator-Lubricator 1/2in Female NPT (Inlets/Outlets), 7.25-135 PSI Adjustable Range, Manual Drain, Single Gauge For Air Prep Components 40 μ (BFC4000).
Regular price
$34.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

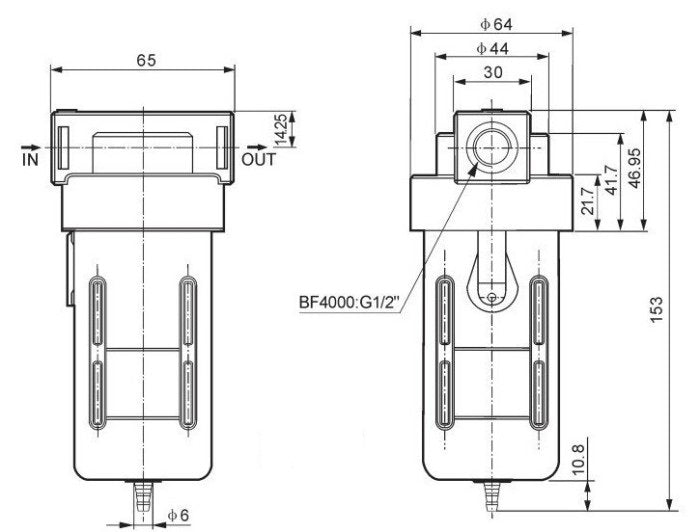

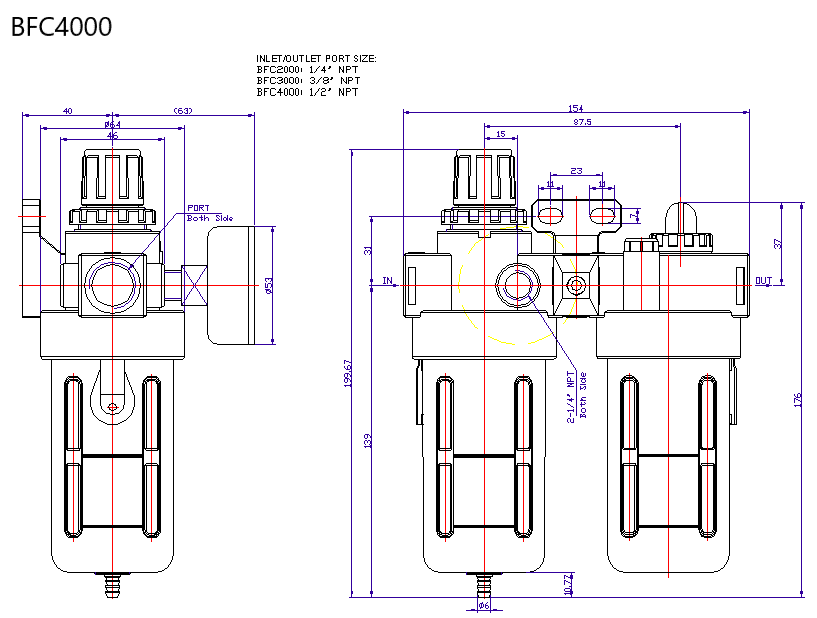

Dimensions
Description

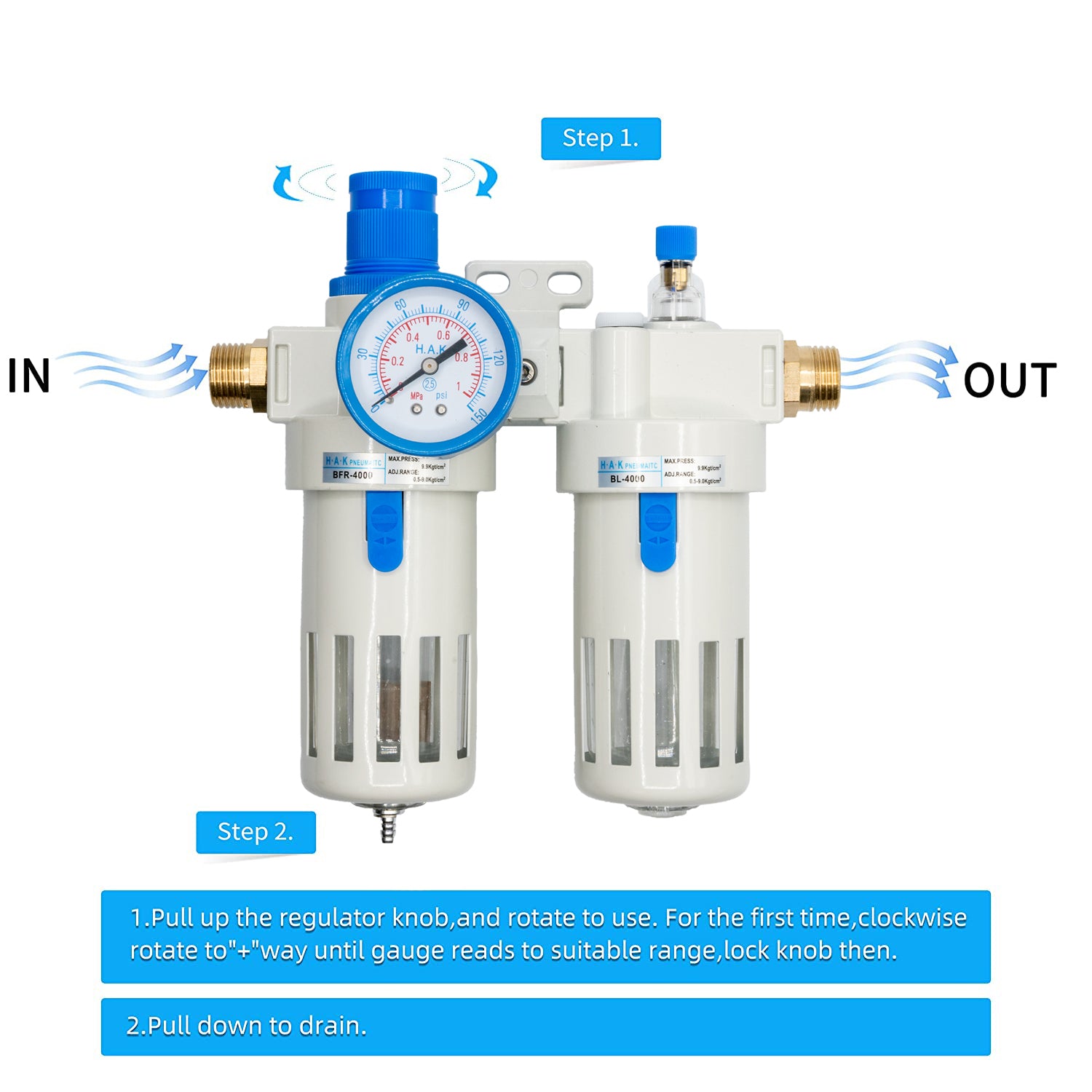

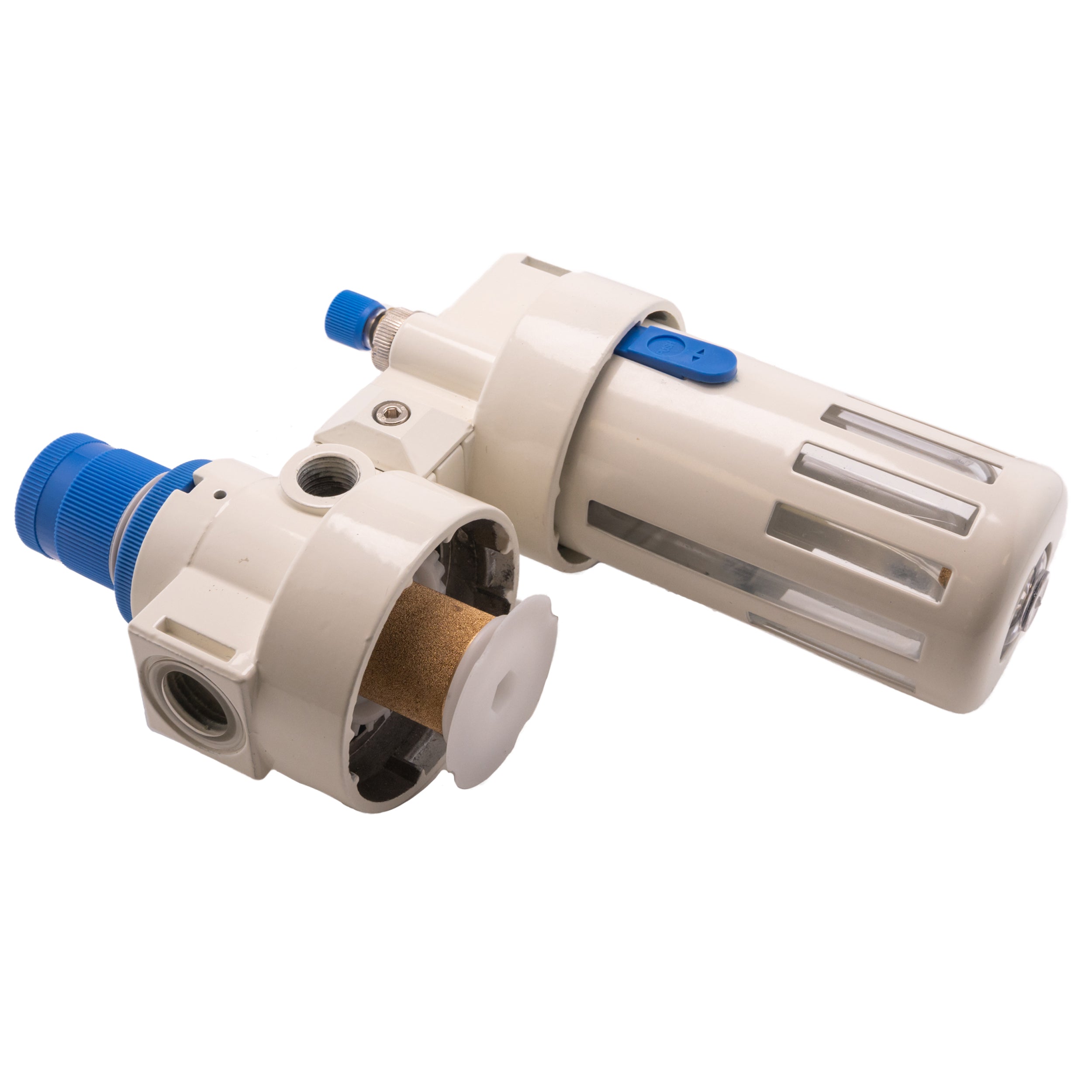

Filter: It Can Effectively Filter Impurities, Dust, Moisture and Particles in the AirRegulating Function: With Pressures Ranging from 7.25-135 PSI, You Can Pull the Blue Button on the Filter and Rotate It to Reduce the Pressure.Lubrication: Add Oil into the Oil Cup from the Oil Filling Screw (Half cup) , when the Air unit Working, Automatically the Oil Will Get an Automation Effect and Will Be Sent to the Parts and Elements of Air Tools to Lubricate and Keep Them Work Well.Specification
| Model | BFC4000 | |
|---|---|---|
| Operating Fluid | Air | |
| Port Size | 1/2″ | |
| Filter Precision | 40 μ | |
| Range of Adjustable Pressure | 7.25 ~ 135 PSI | |
| Max. Adjustable Pressure | 140 PSI | |
| Proof Pressure Resistance | 150 PSI | |
| Operating Temperature Range | 5～60 ℃ | |
| Capacity of Filter Cup | 15 cc | |
| Capacity of oil Cup | 25 cc | |
| Recommended Lubricant | ISO VG 32 or Same Grade Oil | |
| Weight | 0.5 KG | |
| MATERIAL | BODYContainer CupProtective Cover | Aluminum Alloy Die-casting FormingPCIRON |
| Components | Filter RegulatorLubricator | AFR2000AL2000 |
