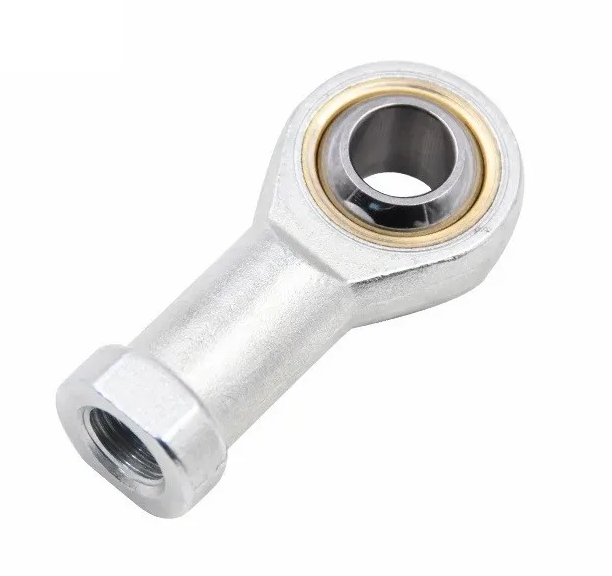

HAK Pneumatic Female Rod End Bearing Fitting Type For ISO 15552 Series Air Cylinder
Regular price
$5.32
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Overall Dimensions
| Item Number | Bore | PA | PB | PC | PD | PE | PF | PG | PH |
| SGS-M10X1.25 | 32mm | 11 | 26 | 10 | 21 | 43 | 56 | M10x1.25 | 13 |
| SGS-M12X1.25 | 40mm | 12 | 30 | 12 | 24 | 50 | 65 | M12x1.25 | 13 |
| SGS-M16X1.25 | 50mm | 15 | 38 | 16 | 33 | 64 | 83 | M16x1.5 | 15 |
| SGS-M16X1.25 | 63mm | 15 | 38 | 16 | 33 | 64 | 83 | M16x1.5 | 15 |
| SGS-M20X1.25 | 80mm | 18 | 46 | 20 | 40 | 77 | 100 | M20x1.5 | 15 |
| SGS-M20X1.25 | 100mm | 18 | 46 | 20 | 40 | 77 | 100 | M20x1.5 | 15 |
| SGS-M27X1.25 | 125mm | 37 | 70 | 30 | 51 | 110 | 145 | M27x2.0 | 15 |
