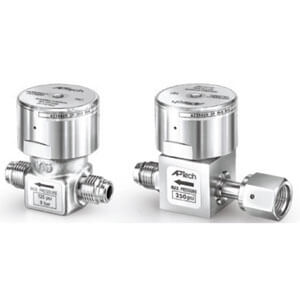

AZ3542 & AZ4542, Diaphragm Valve, Air Operated

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Series AZ is an ultra high purity (UHP)diaphragm valve for gas delivery in semiconductor and other clean industries.  This series is available in air operated.

  • Cleaned for high purity semiconductor applications
  • Cleanroom assembled and Helium leaked tested
  • Valve meets dimensional requirements of SEMI F36-0299, Option 1
  • User-friendly forged body
  • M5 actuation port
  • Compact and lightweight
