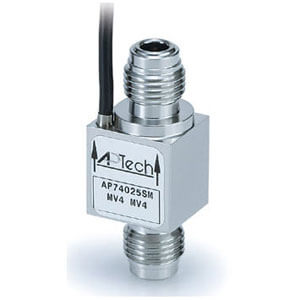

AP74, Flow Switch

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The AP 74 and AP 74B are safety devices to detect excess flow in UHP gas delivery systems. The switches are available with a wide variety of trip points and configurations. An online selection guide makes choosing the proper switch for a given gas, pressure and maximum flow rate as simple as a few key strokes.

  • 6 flow trip points available, from 2 to 100 slpm
  • Body material: 316L SS secondary remelt
  • High pressure max. 3500 psig (24.1 MPa)
  • Detect excess flow by N.C. or N.O. contact output with non-wetted reed switch tripped by float with encapsulated magnet (SPDT, 3 wire/2 position)
