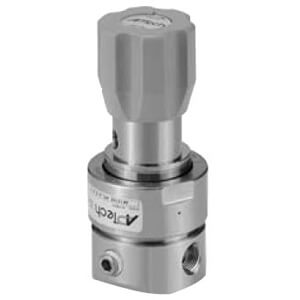

AK1200, Single Stage Regulator for General Applications, High Flow (Tied-diaphragm)

Series AK regulator was designed for general use in a wide variety of applications. The series is available in single or two stage models, with low to high flow capacities.  Some AK regulator models offer a tied-diaphragm design. Available options include Hastelloy¨ internals for corrosion resistance, panel installation, and a variety of pressure gauges in psig/bar or MPa units.

• High inlet pressure: Standard, max. 1700 psig (11.7 MPs); HR, (option) max. 3000 psig (20.7 MPa)
• Flow capacity: Standard to 800 slpm; HF (option) to 1000 slpm; FC (option) to 1500 slpm
• Body material: Stainless steel and brass available
• Hastelloy¨ internals available for corrosion resistance
• Tied-diaphragm design
• Point of use and source cylinder applications
