Filter-Regulator 1/4in Female NPT (Inlets/Outlets), 7.25-135 PSI Adjustable Range, Manual Drain, Single Gauge For Air Prep Components 40 μ (AFR2000).
Regular price
$17.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Dimensions
[caption id="attachment_10325" align="aligncenter" width="512"]
AFR2000 DRAWING[/caption]Description

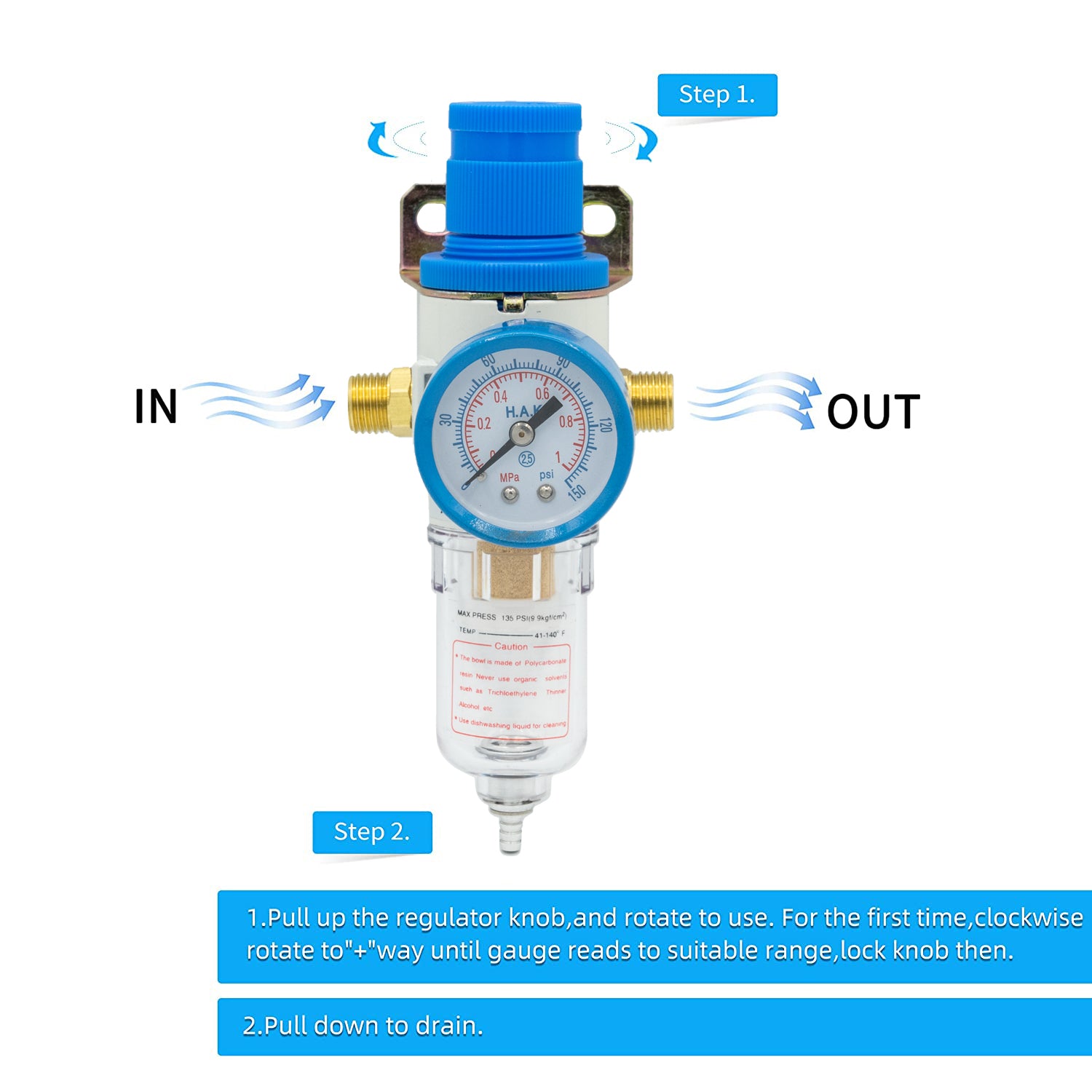

Filter: It Can Effectively Filter Impurities, Dust, Moisture and Particles in the AirRegulating Function: With Pressures Ranging from 7.25 ~ 135 PSI , You Can Pull the Blue Button on the Filter and Rotate It to Reduce the Pressure.Specification
| Model | AFR2000 | |
|---|---|---|
| Operating Fluid | Air | |
| Port Size | 1/4″ | |
| Filter Precision | 40 μ | |
| Range of Adjustable Pressure | 7.25 ~ 135 PSI | |
| Max. Adjustable Pressure | 140 PSI | |
| Proof Pressure Resistance | 150 PSI | |
| Operating Temperature Range | 5～60 ℃ | |
| Capacity of Filter Cup | 15 cc | |
| Capacity of oil Cup | 25 cc | |
| Recommended Lubricant | ISO VG 32 or Same Grade Oil | |
| Weight | 0.20 KG | |
| MATERIAL | BODYContainer CupProtective Cover | Aluminum Alloy Die-casting FormingPCIRON |
