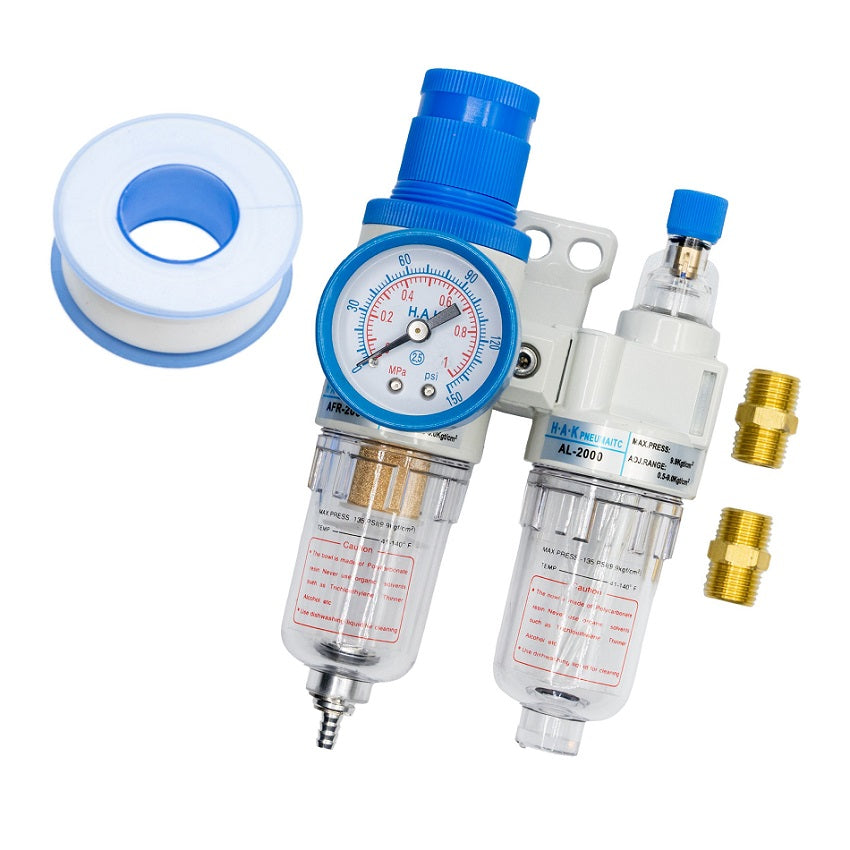

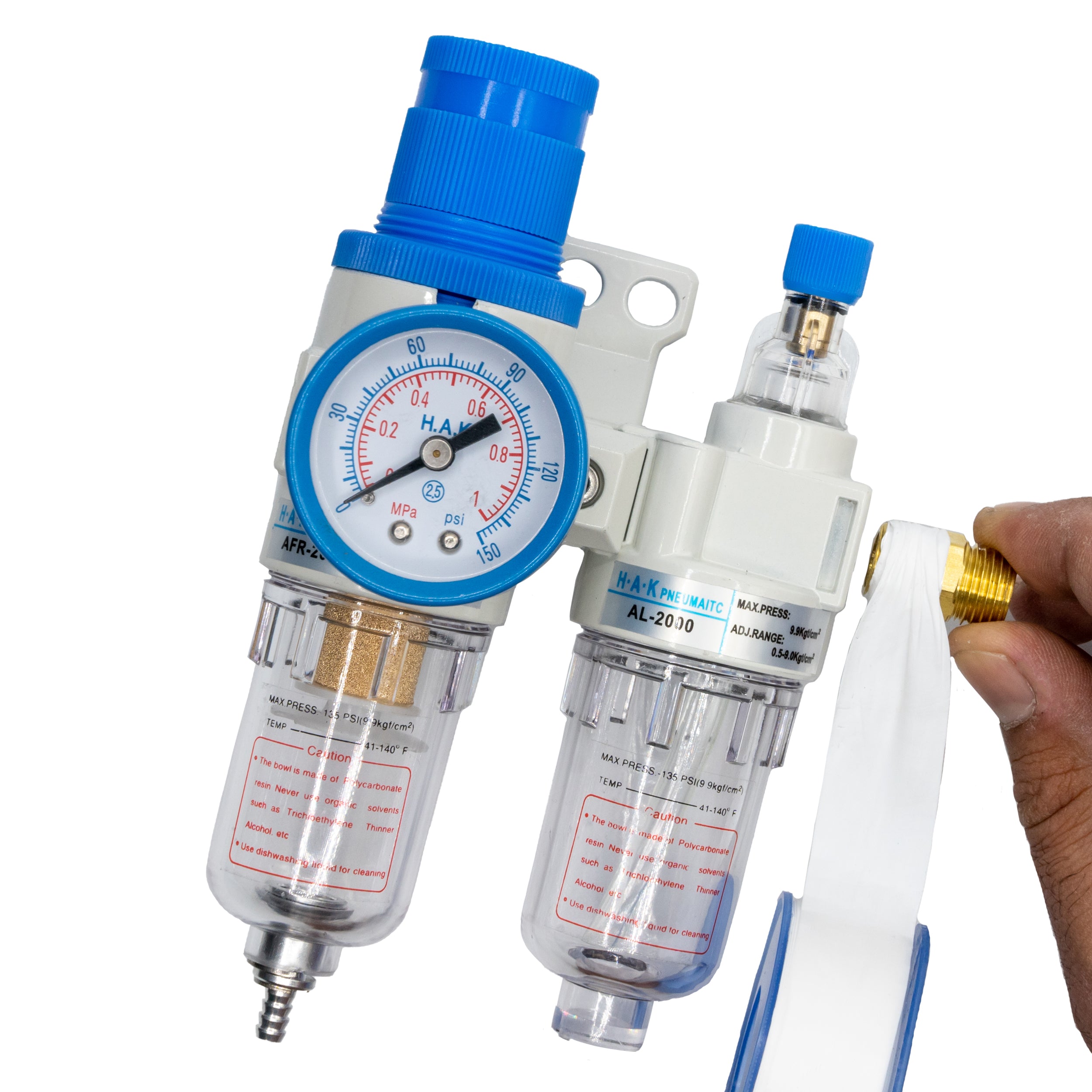

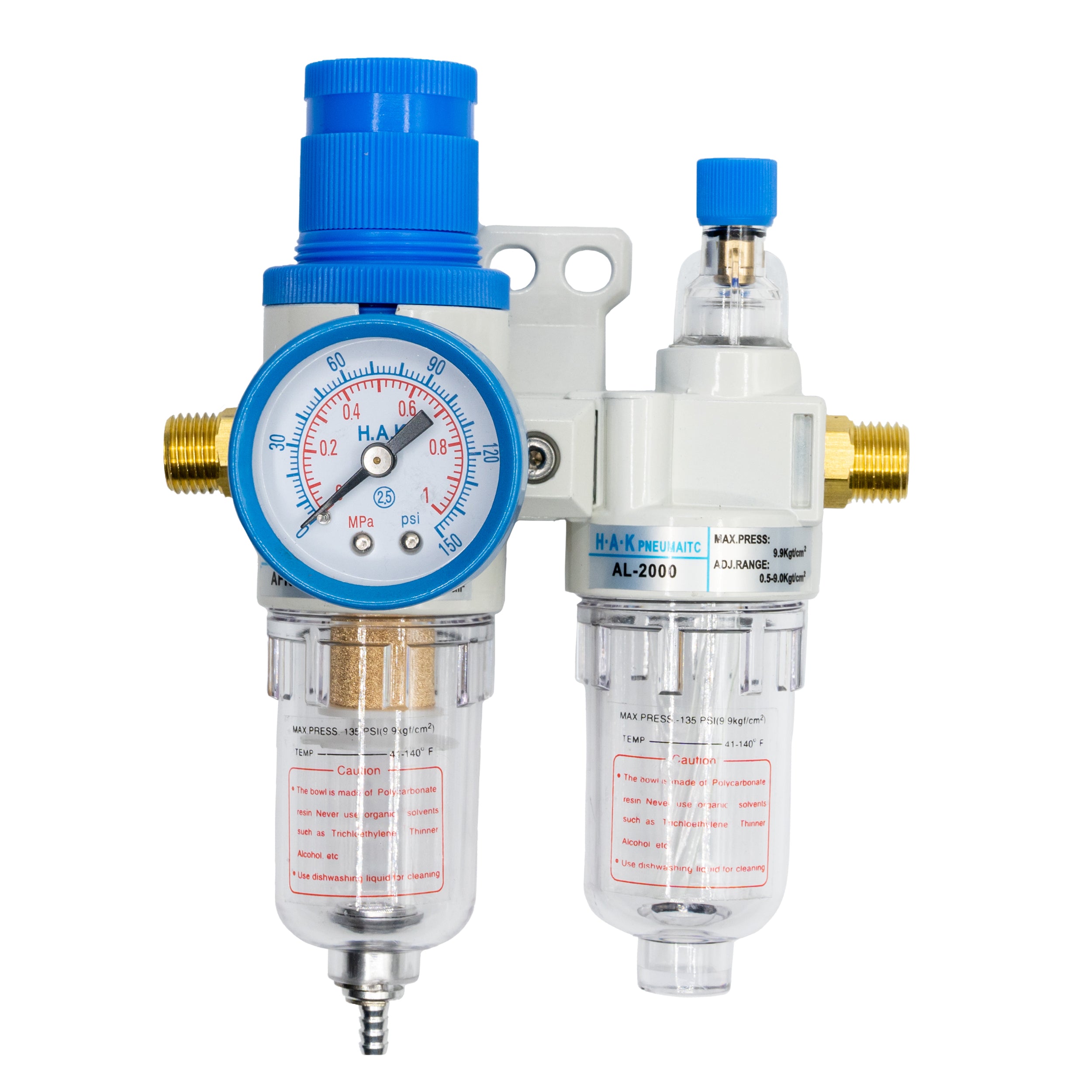

FRL 1/4in Female NPT (Inlets/Outlets), 7.25-135 PSI Adjustable Range, Manual Drain, Single Gauge For Air Prep Components 40 μ (AFC2000).

$13.81
Sale $16.67 $13.81

✅ In Stock – Ready to Ship From Canada

Use this text to encourage communication or promote sharing on social networks.

You can also add links

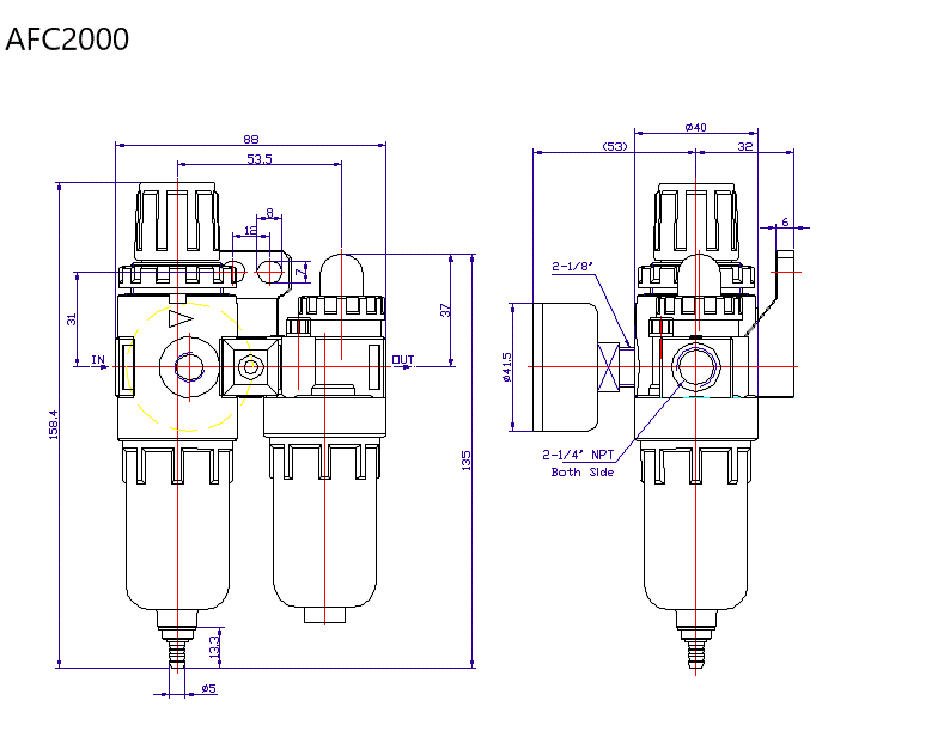

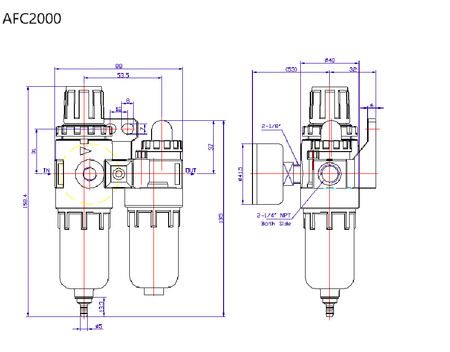

Dimensions

AFC2000

Description

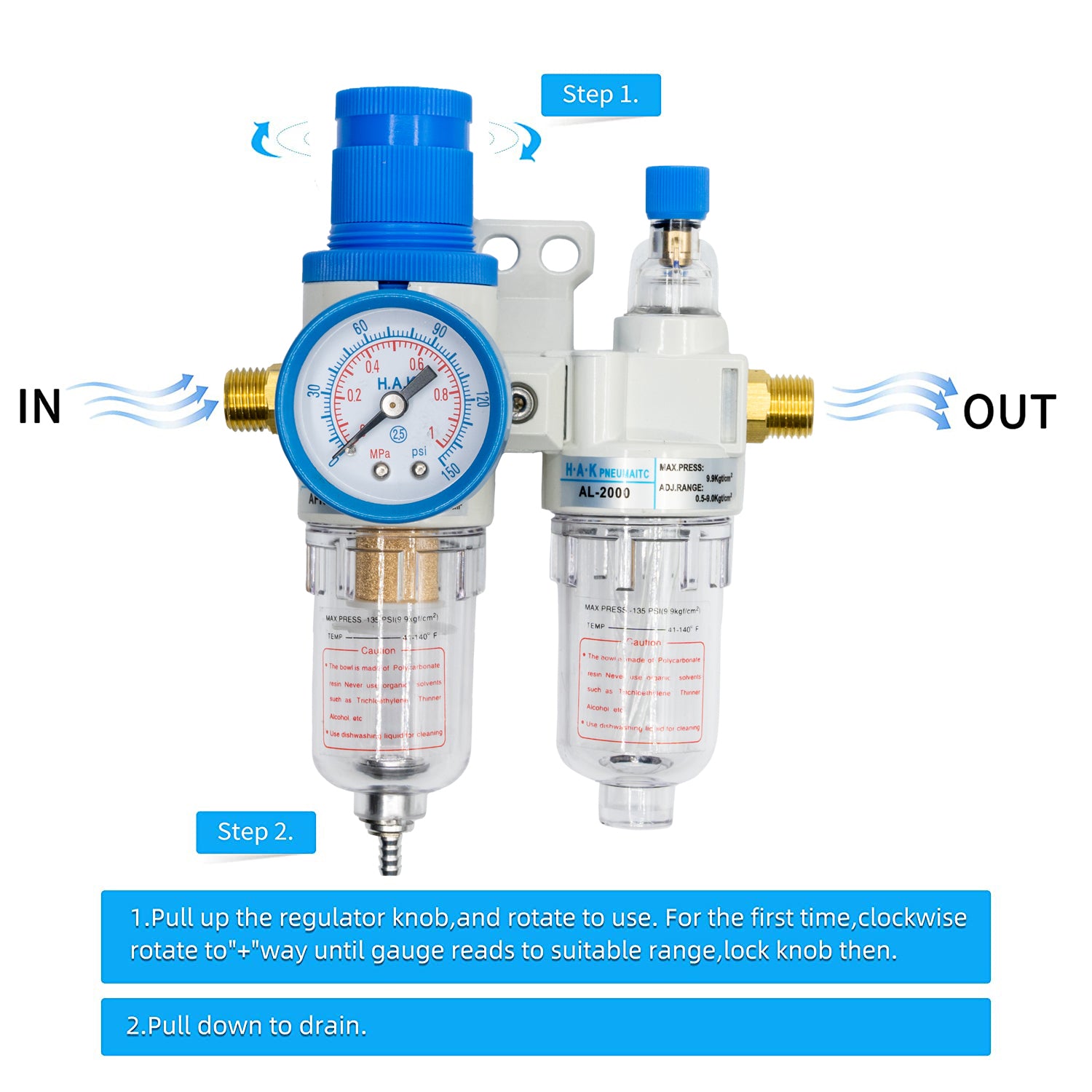

Filter: It Can Effectively Filter Impurities, Dust, Moisture, and Particles in the air. Regulating Function: With Pressures Ranging from 7.25-135 PSI, You Can Pull the Blue Button on the Filter and Rotate It to Reduce the Pressure. Lubrication: Add Oil into the Oil Cup from the Oil Filling Screw (half a cup). When the Air unit Is Working, the Oil will be automatically delivered to the Parts and Elements of the Air Tools to Lubricate and keep them working well.

Specification

Edit
Model AFC2000
Operating Fluid Air
Port Size 1/4″
Filter Precision 40 μ
Range of Adjustable Pressure 7.25-135 PSI
Max. Adjustable Pressure 140 PSI
Proof Pressure Resistance 150 PSI
Operating Temperature Range 5～60 ℃
Capacity of Filter Cup 15 cc
Capacity of an oil Cup 25 cc
Recommended Lubricant ISO VG 32 or Same Grade Oil
Weight 0.5 KG
MATERIAL BODYContainer CupProtective Cover
Components Filter RegulatorLubricator
