HAK Pneumatic

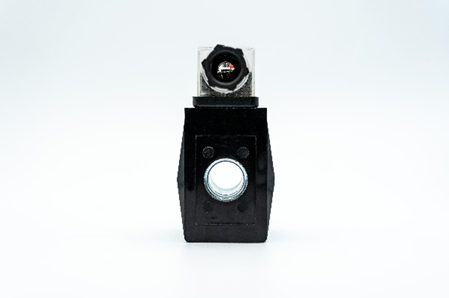

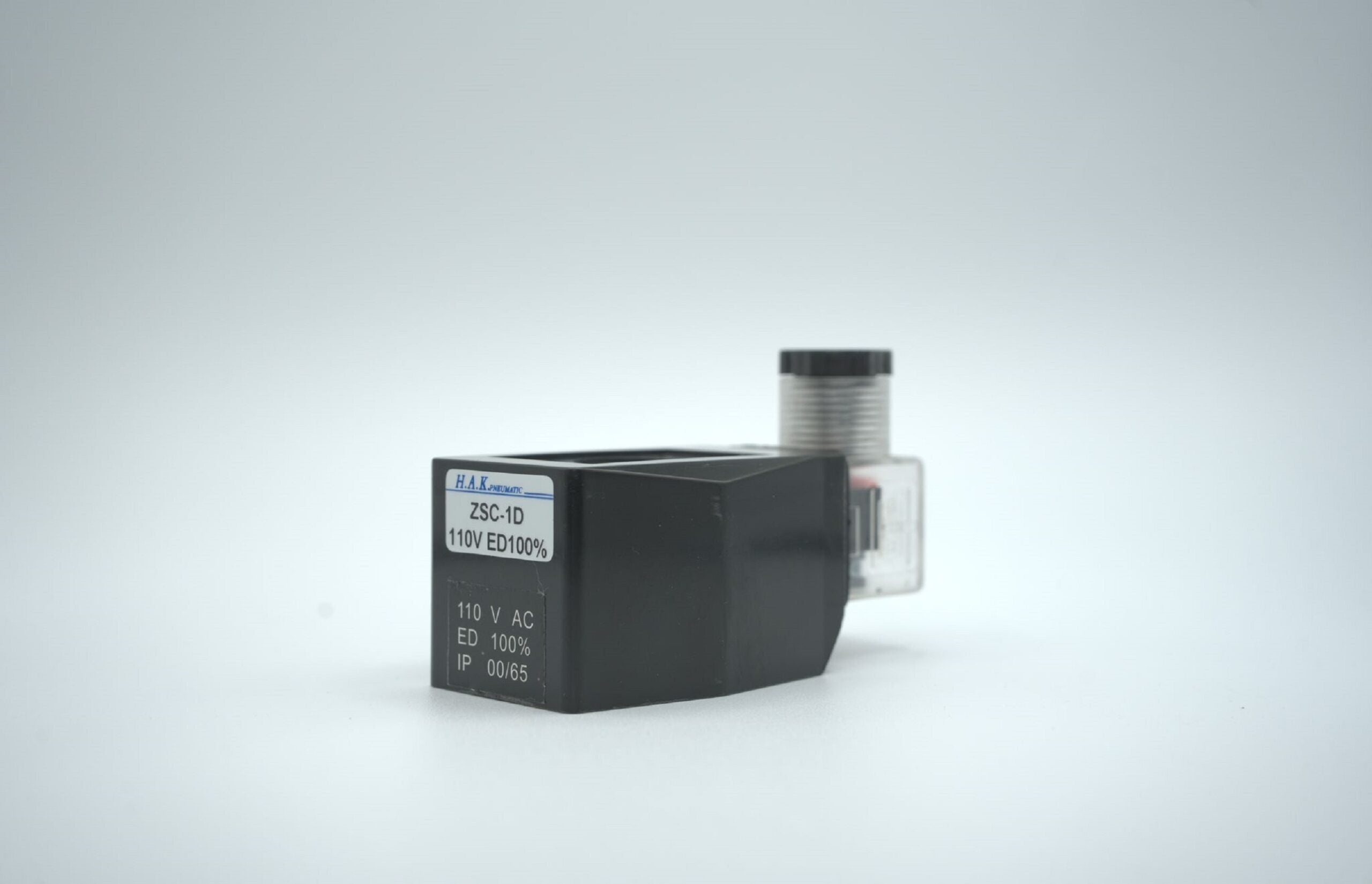

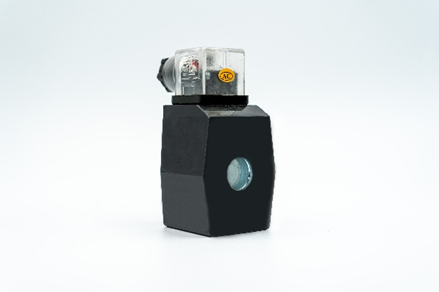

HAK Pneumatic Solenoid Valve 16mm Replacement Coil For 2W/2S series.

SKU: C-2W-16-AC110
$18.89
Voltage

✅ In Stock – Ready to Ship From Canada

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Dimensions

16 mm series

Specification

Edit
Item Number  C-2W-16-(Voltage)
Voltages 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Operation 100% ED
Protection IP65
Insulation F Class
Power AC: 2.8 VA DC: 2.8 W
Wiring Form Connector Type
Voltage Tolerance (-10% To +10%)
orifice 16mm
Working Temperature (-5°C - 30°C)
Applications

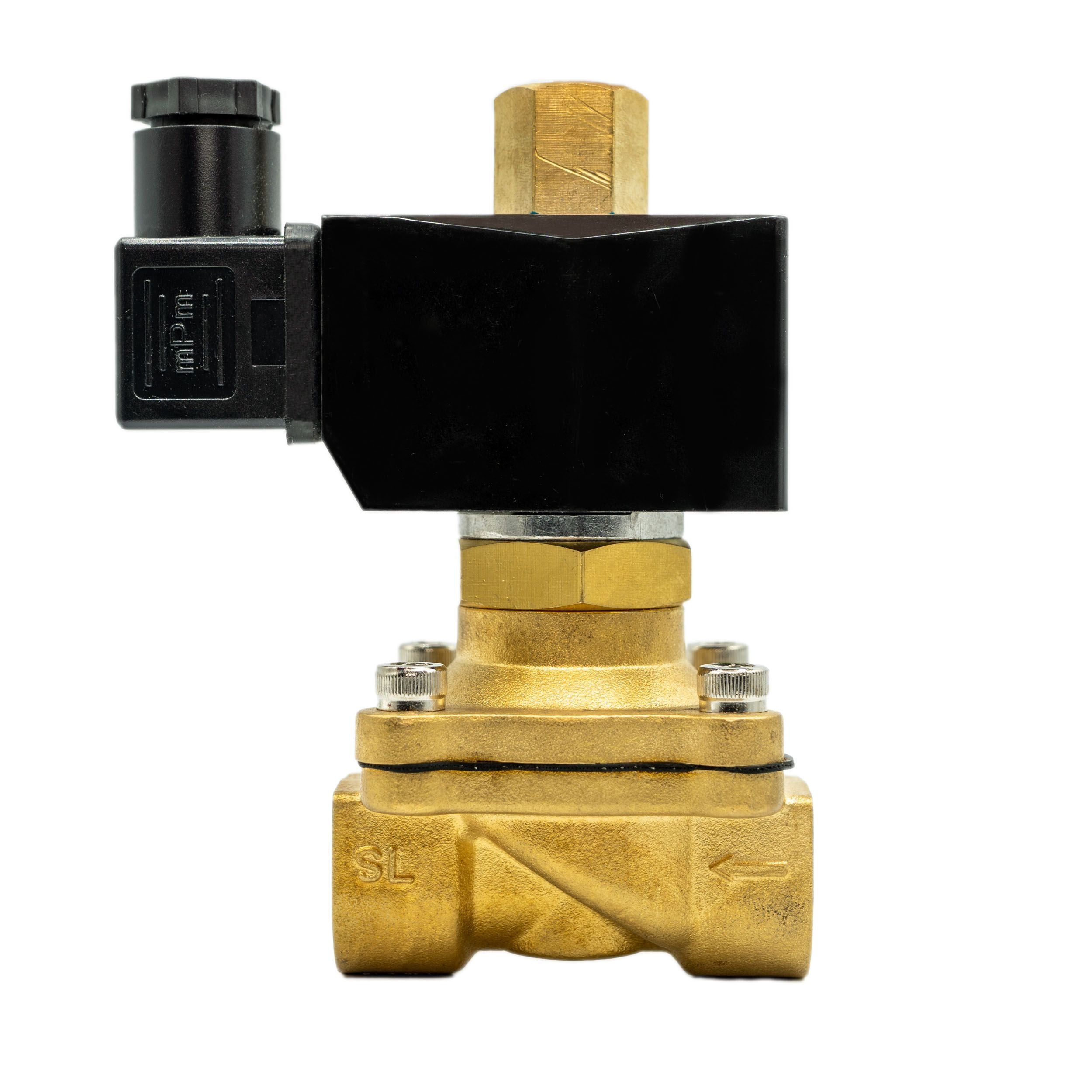

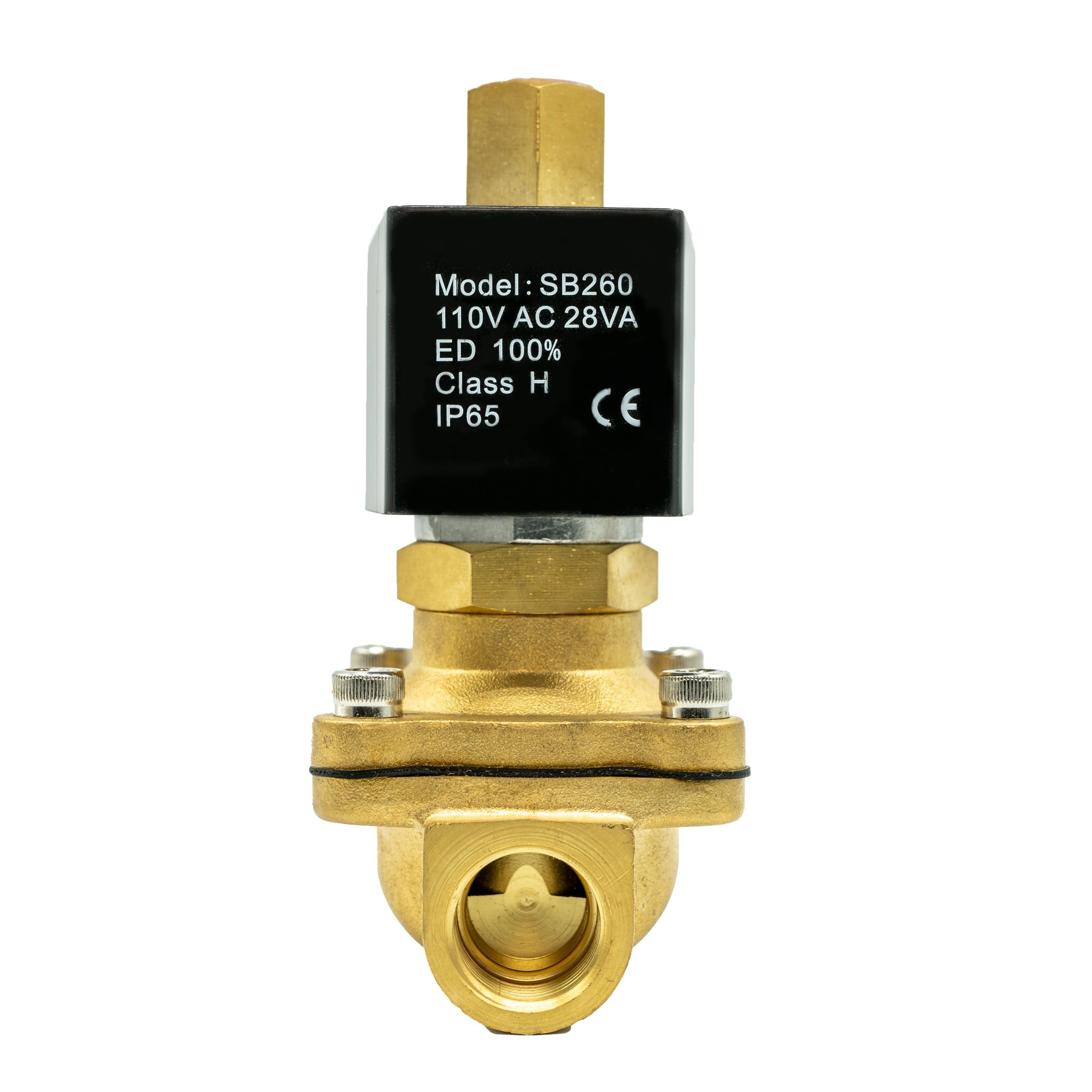

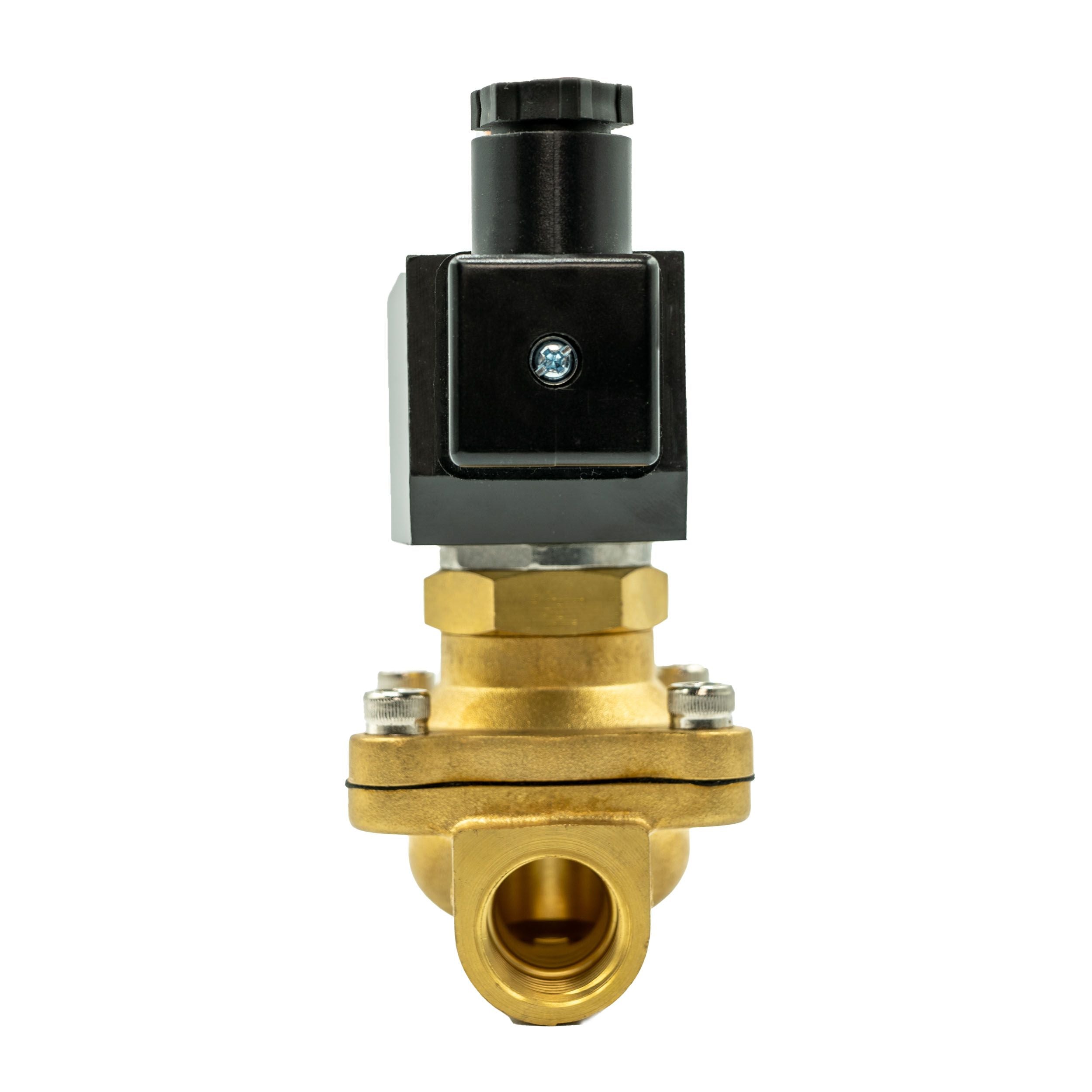

This Coil can be used as a replacement for Brass Solenoid Valves for the listed item numbers.: 2W160-10, 2W160-15, 2W200-20, 2W250-25, 2W160-10-NO, 2W160-15-NO, 2W200-20-NO, and 2W250-25-NO.

This Coil can be used as a replacement for Stainless Steel Solenoid Valves for the listed item numbers. 2S160-10, 2S160-15, 2S200-20, and 2S250-25.
