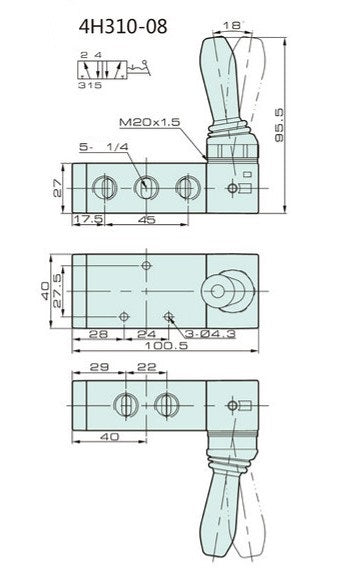

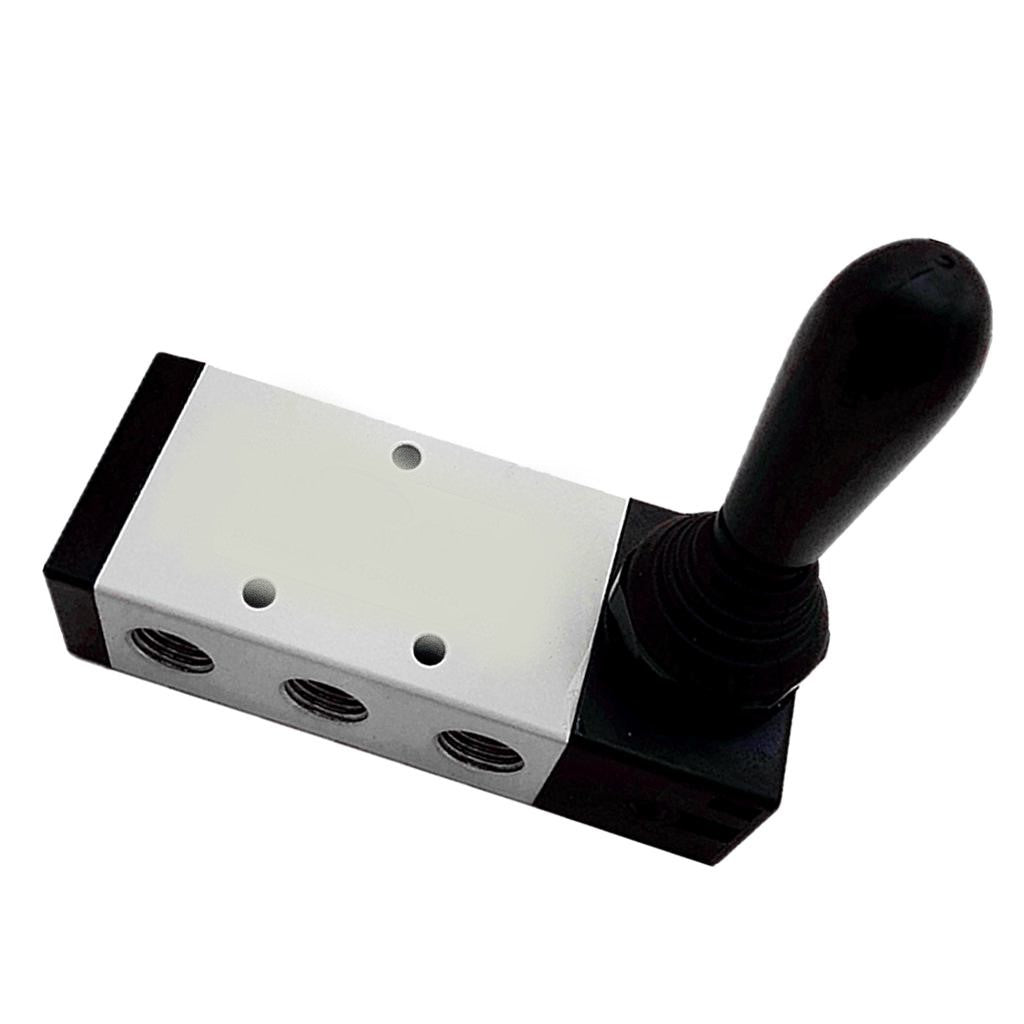

HAK Pneumatic Hand Lever Valve (4 Way / 2 position / 5 port) Detent, NPT 1/4” (4H310-08)
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Description
* Pneumatic Hand Lever Mechanical Valve Type: 5 Port 2 Position Detent.* The high-quality Valve body is made of Aluminum, which has a long service life; the seals were initially imported from Japan.* An anti-friction seal is added at both ends of the valve spool to make it more stable during the switching process and increase its lifetime.* This is a four-way, air-pilot valve with a spool design requiring input pressure to be supplied to port P to actuate. The valve will not actuate when no pressure is applied.* This type of valve is designed for AIR FLOW ONLY. Using filtered lubricated air will prolong the life of the valve & its internal components.
Parts
| Number | Name | Number | Name |
|---|---|---|---|
| 1 | BACK COVER | 6 | DIRT-PROOF BOOT |
| 2 | VALVE BODY | 7 | LOCK NUT |
| 3 | FLAT RING | 8 | GASKET |
| 4 | VALVE SPOOL | 9 | TOP COVER |
| 5 | HANDLE | 10 | SET SCREW |
Specification
| Item Number | 4H310-08 |
|---|---|
| Working Medium | 40 Micron Filtered Air |
| Operation | Direct |
| Effective Cross Section Area | 25 mm² (CV = 1.4) |
| Port Size | Inlet, Outlet, Exhaust Port ＝ 1/4″ NPT |
| Working-pressure | 21.75～116 PSI |
| Working Tempreture | -20～ 70℃ |
