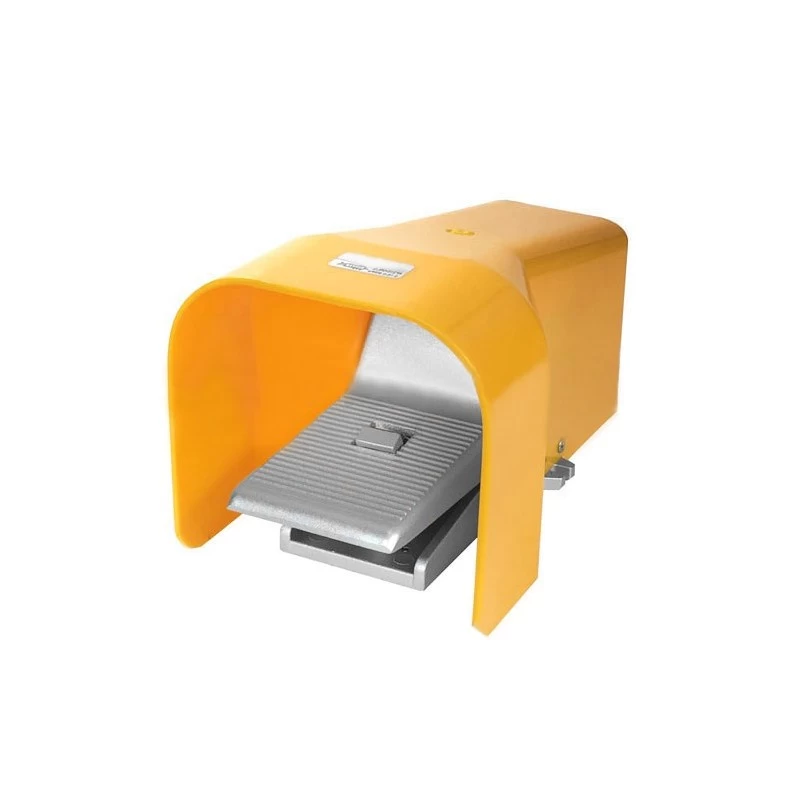

HAK pneumatic (4 Way / 5 Port / 2 Position) Locking pneumatic Foot Valve, NPT 1/4" (4F210-08L)
Regular price
$61.65
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Description
* Pneumatic Mechanical Foot Valve With Lock Type: 5 Port 2 Position.* A High-Quality Valve body is made of Aluminum material, with long-serving life; seals initially imported from Japan.* The Anti-friction seal is added at both ends of the valve spool to make the valve spool more stable during the switching process and increase the valve lifetime.* This is a Four-way, air-pilot valve with a spool design requiring an input pressure supplied to port P to actuate. The valve will not actuate when no pressure is applied.* This type of valve is designed for AIR FLOW ONLY. The use of filtered lubricated air will prolong the life of the valve & its internal components.Parts
| Number | Name | Number | Name | Number | Name |
|---|---|---|---|---|---|
| 1 | PEDAL | 4 | HOOK | 7 | SCREW |
| 2 | SPRING | 5 | LOCK | 8 | SLIENCER |
| 3 | SCREW | 6 | VALVE BODY | 9 | VALVE BASE |
Specification
| Model | 4F210-08L |
|---|---|
| Working Medium | 40 Micron Filtered Air |
| Operation | Direct |
| Port Size | Inlet, Outlet, Exhaust Port ＝ 1/4″ |
| Working-pressure | 21.75～116 PSI |
| Working Tempreture | -20～ 70℃ |
| Position Number | 5/2 Way |
