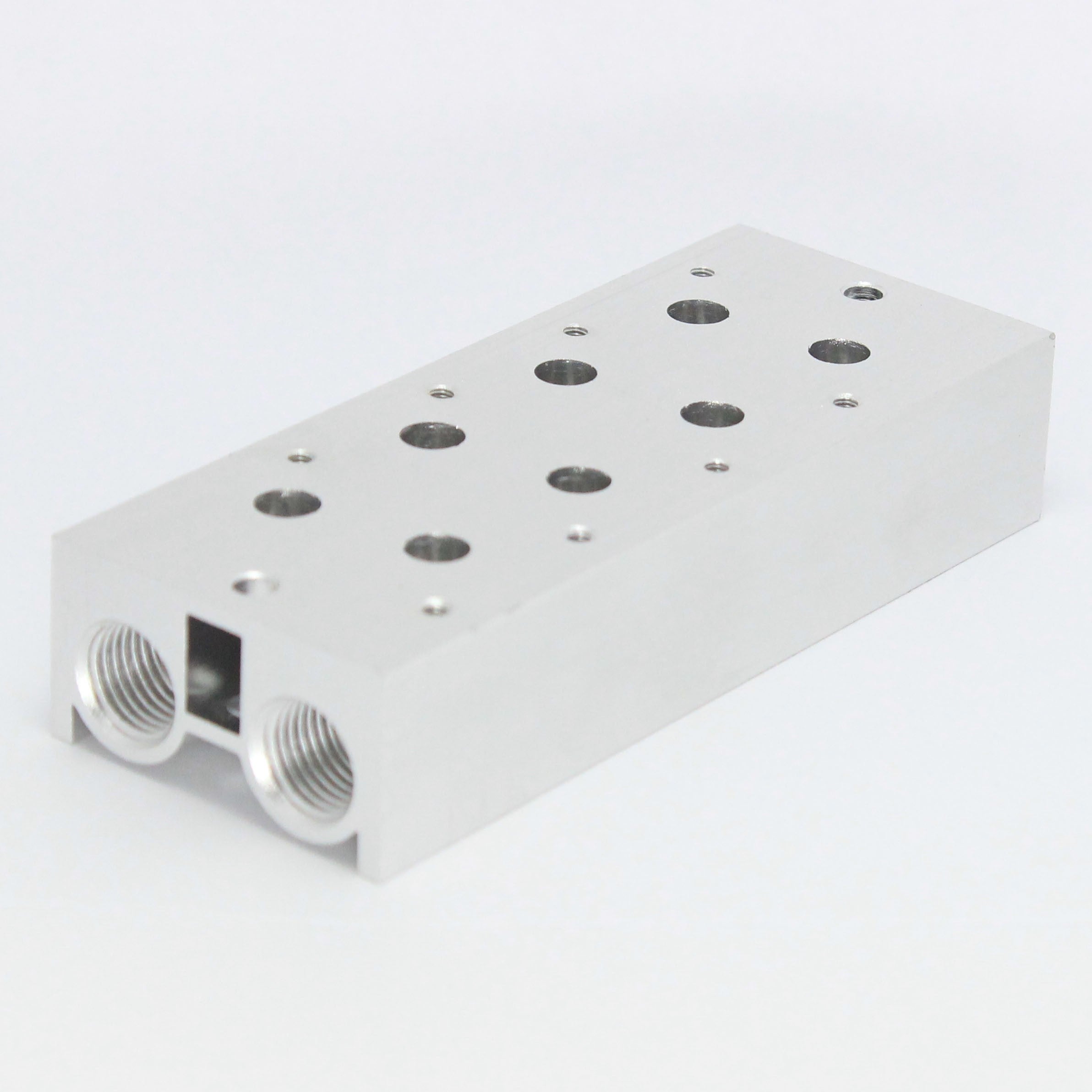

HAK Pneumatic Direct Manifold for 3V200 Valve Series
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Dimensions
[caption id="attachment_10459" align="aligncenter" width="520"]
[/caption]| Inside Dia./ Symbol | A | B | C | E | F | G | K | KA | L | M | Q | R | S | W | X | Y |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3V200 | 45 | 43 | 45 | 22 | 23 | 6 | (n-1)*23+34 | (n-1)*23+46 | 163 4 | NPT 1/4" | 23 | 37 | 90.9 | 24 | 35 | 35 |
