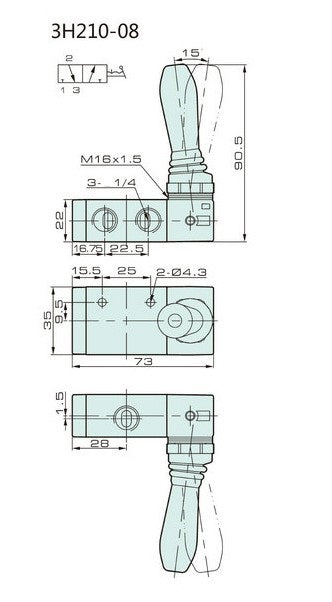

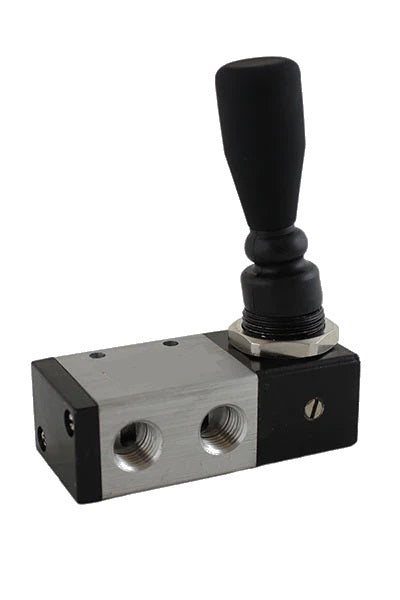

HAK pneumatic (3 Way / 2 position / 3 port) hand Lever valve, NPT 1/4” (3H210-08)
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Description
* Pneumatic Hand Pull Mechanical Valve Type: 3 Port 2 Position Normally closed.* A High-Quality Valve body is made of Aluminium material, with long-serving life; seals initially imported from Japan.* The Anti-friction seal is added at both ends of the valve spool to make the valve spool more stable during the switching process and increase the valve lifetime.* This is a Three-way, air-pilot valve with a spool design requiring an input pressure supplied to port P to actuate. The valve will not actuate when no pressure is applied.* This type of valve is designed for AIR FLOW ONLY. The use of filtered lubricated air will prolong the life of the valve & its internal components.
Parts
| Number | Name | Number | Name |
|---|---|---|---|
| 1 | BACK COVER | 6 | DIRT-PROOF BOOT |
| 2 | VALVE BODY | 7 | LOCK NUT |
| 3 | FLAT RING | 8 | GASKET |
| 4 | VALVE SPOOL | 9 | TOP COVER |
| 5 | HANDLE | 10 | SET SCREW |
Specification
| Item Number | 3H210-08 |
|---|---|
| Working Medium | 40 Micron Filtered Air |
| Operation | Direct |
| Effective Cross Section Area | 16 mm² (CV = 0.89) |
| Port Size | Inlet , Outlet , Exhaust Ports 1/4" NPT |
| Working-pressure | 21.75～116 PSI |
| Working Tempreture | -20～ 70℃ |
