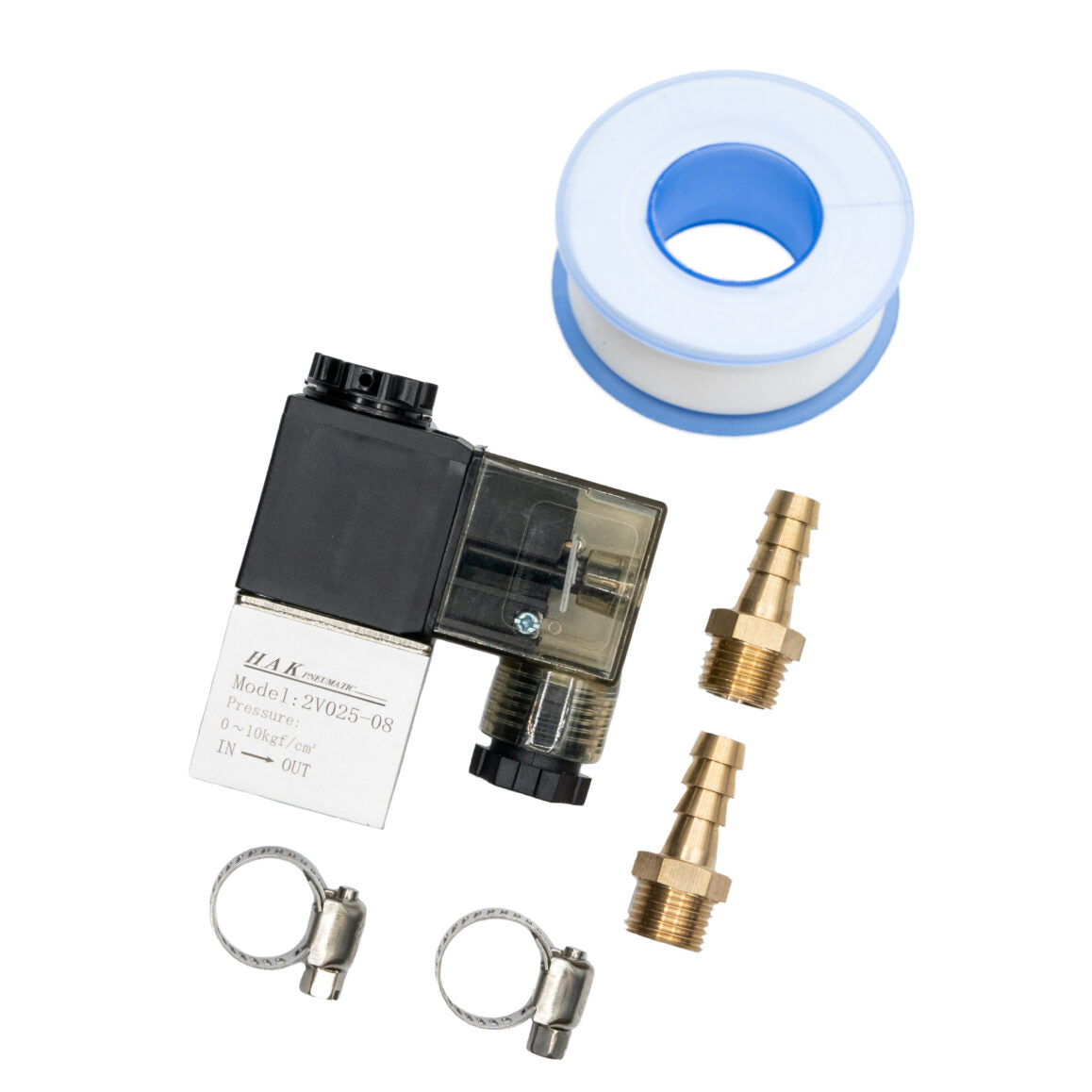

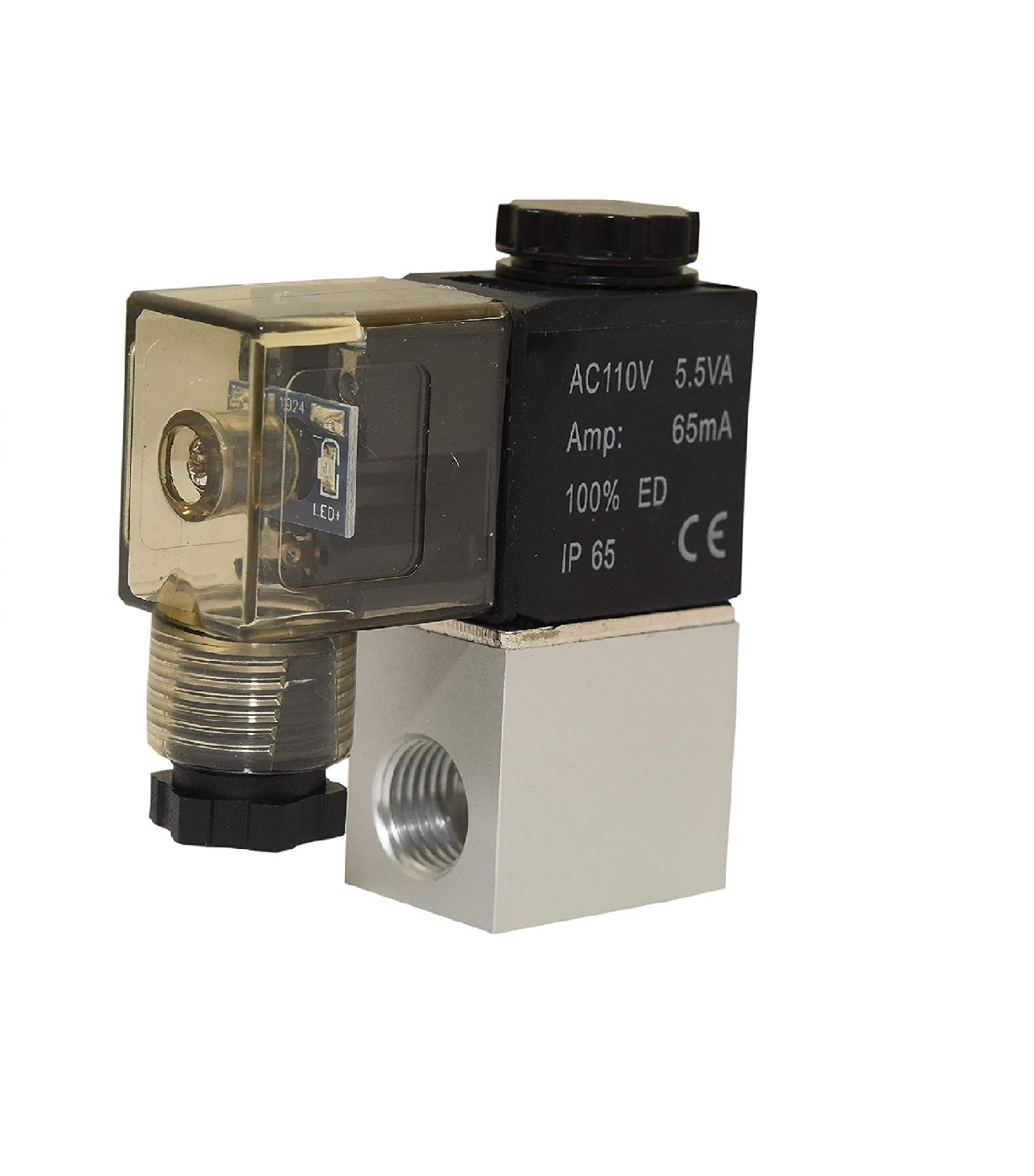

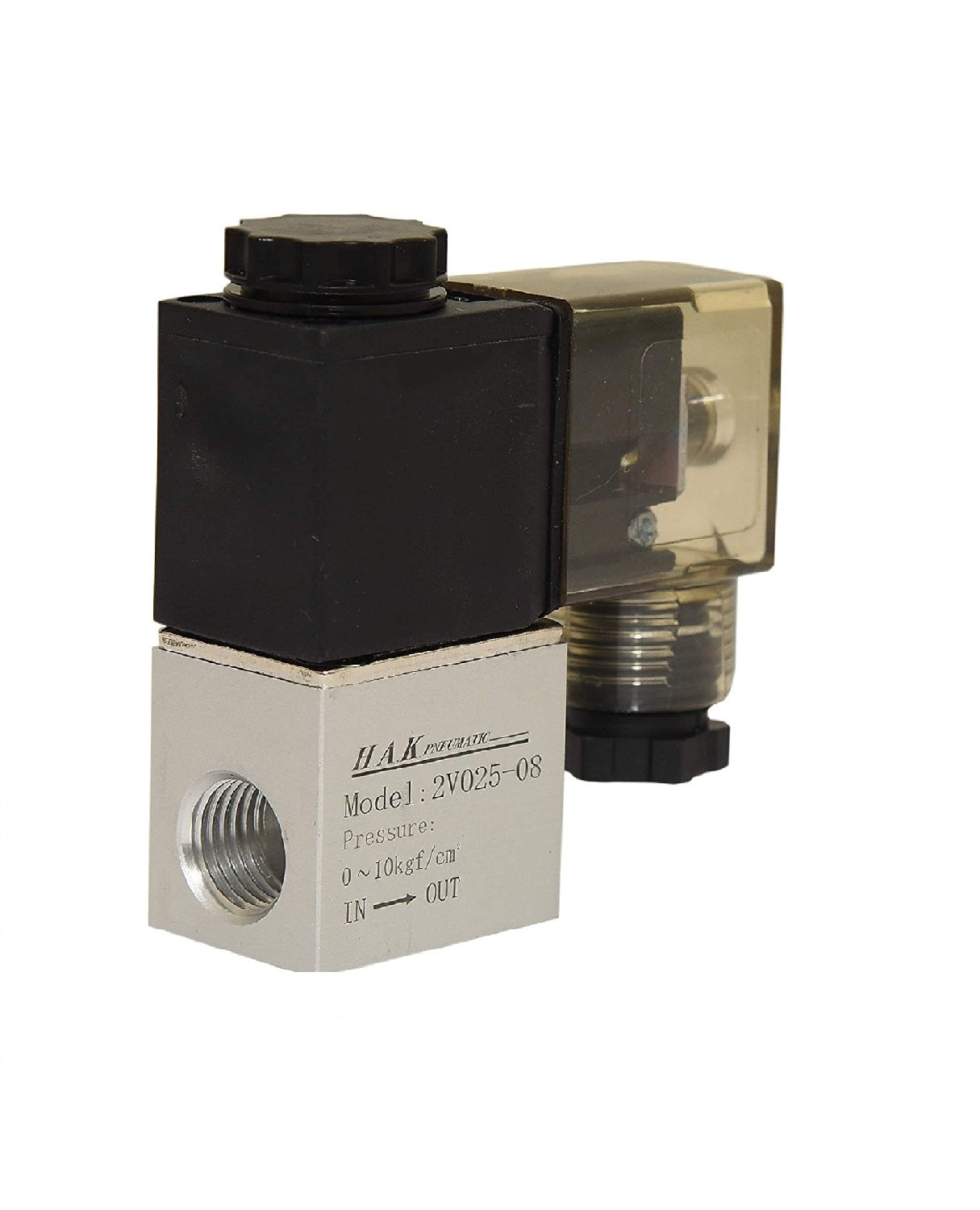

HAK Pneumatic Aluminum Internal Pilot Solenoid Valve (2 Way / 2 Position) N/C, NPT 1/4" (2V025-08)

Description:

• The Internal Pilot Solenoid Valve Type: 2 Port 2 Position Normally closed type;* Voltage:  DC12V / DC24V / AC24V 50/60Hz /  AC110V 50/60Hz /  AC220V 50/60Hz .*The valve body is made of aluminum alloy and has strong pressure resistance. The inner hole is machined by a special process, with low frictional resistance, low starting air pressure, and long service life.*The Internal Pilot Solenoid Valve Has Guide head made of excellent conductor material with high strength and high-frequency response for smoother operation.*The Internal Pilot Solenoid Valve coil is easy to disassemble, Removable core nut, coil damage can be replaced at any time.*The Internal Pilot Solenoid Valve stays close when the coil is D energized- and it opens when energized.*Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
• This valve is supplied with a standard DIN coil. Wire Leads Coil option is also available upon request – please contact us directly for details.

Dimensions

Specification
