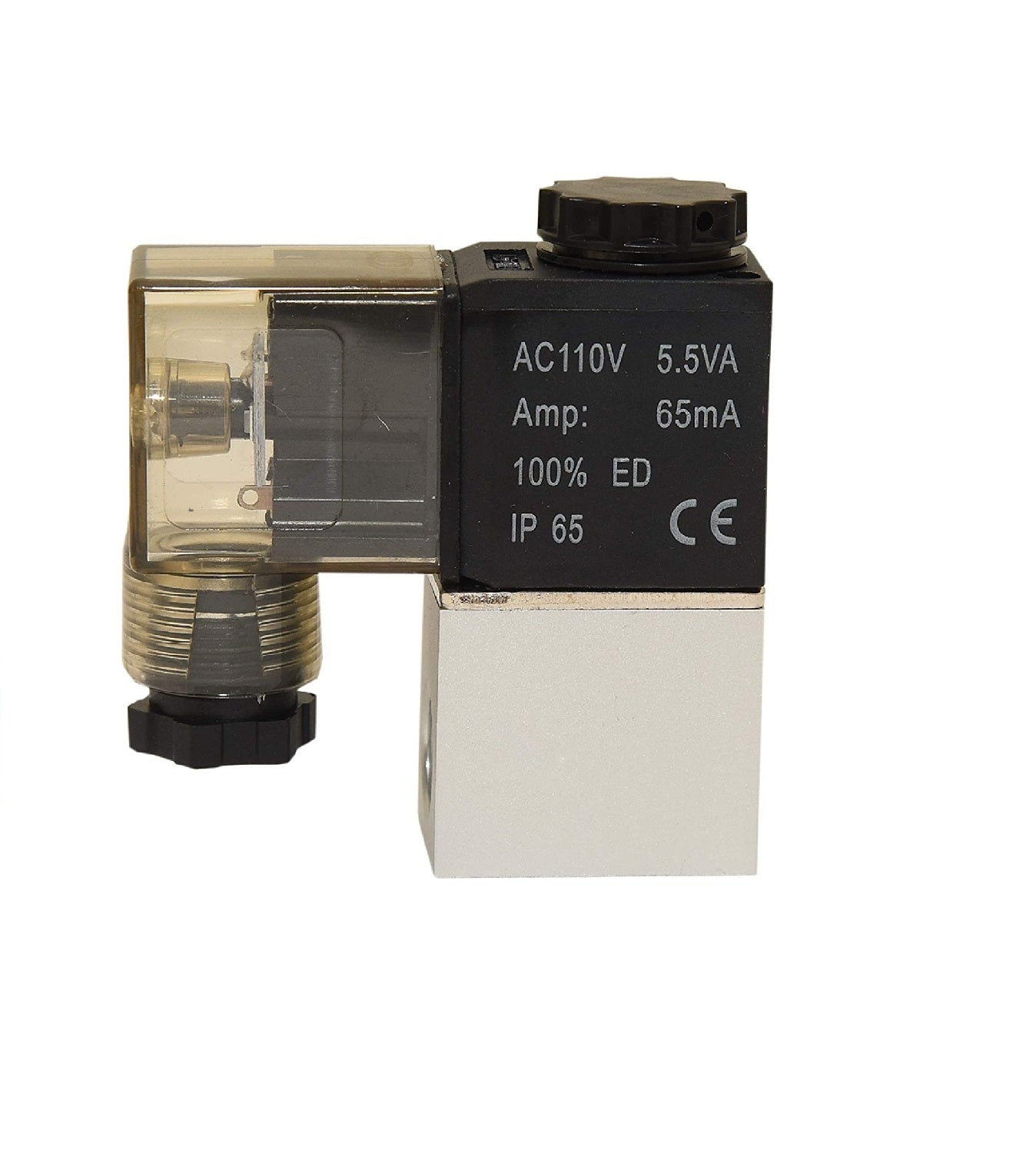

HAK Pneumatic Aluminum Electric Internal Pilot Solenoid Valve (2way / 2 Position) Normally Close, NPT 1/8" (2V025-06)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Description:
- The Internal Pilot Solenoid Valve Type: 2 Port 2 Position Normally closed type;* Voltage: DC12V / DC24V / AC24V 50/60Hz / AC110V 50/60Hz / AC220V 50/60Hz .*The valve body is made of aluminum alloy and has strong pressure resistance. The inner hole is machined by a special process, with low frictional resistance, low starting air pressure, and long service life.*The Internal Pilot Solenoid Valve Has Guide head made of excellent conductor material with high strength and high-frequency response for smoother operation.*The Internal Pilot Solenoid Valve coil is easy to disassemble, Removable core nut, coil damage can be replaced at any time.*The Internal Pilot Solenoid Valve stays close when the coil is D energized- and it opens when energized.*Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
- This valve is supplied with a standard DIN coil. Wire Leads Coil option is also available upon request – please contact us directly for details.
Dimensions
Specification
| Item Number | 2V025-06 |
|---|---|
| Working Medium | Air, Water, Oil |
| Operation | Direct |
| Type | Normal Close |
| Orifice | 2.5 mm |
| CV Value | 0.23 |
| Port Size | 1/8″ NPT |
| Operation Fluid Viscosity | Below 20 CST |
| Working-pressure | 7.25～100 PSI |
| Max. Test Pressure | 140 PSI |
| Max. Ambient Temperature | -10～80 ℃ |
| Operating Voltage Tolerance | ± 10% |
| Protect Class | IP 65 |
| Power Consumption | AC: 6.5 VA DC: 6.5 W |
| Insulation | F Class |
| Material of Body | Aluminum |
| Material of Oil Seal | NBR / VITON |
| Response Time | 0.05 Sec. |
