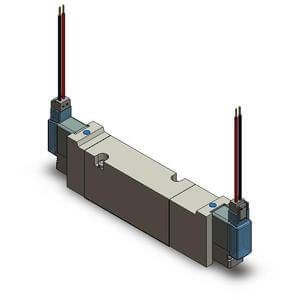

25A-VQZ1000, 5-port Solenoid Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ body ported solenoid valves combine flexibility with high performance and long life in an inline body style.
- Fluid: air, inert gas
- Operating pressure range: 0.1 - 0.7MPa
- Effective area mm 2 (Cv):
rubber seal body ported: 3.1 (0.17) - 16.2 (0.9); base mounted rubber seal 3.6 (0.2) - 21.6 (1.2) - Coil rated voltage: 12, 24VDC;
100, 110, 200, 220VAC - Response time (ms) standard 1W, high pressure 1.5W: rubber seal 30 or less
- Ambient & fluid temperature: -10 to 50¡C
