25A-VQ1000/2000 Separate Type Double Check Block
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

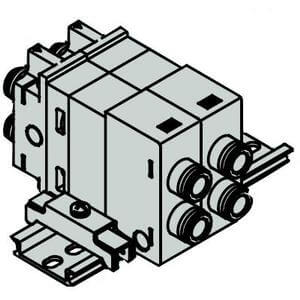

SMC's double check block for the separated type VQ1000/2000 can be used on the outlet side piping to keep a cylinder in the intermediate position for a long time. Combining the double check block with a built-in pilot type double check valve and a 3 position exhaust center solenoid valve, will enable the cylinder to stop in the middle or maintain its position for an extended period of time.
- Double check block for separated type VQ1000 & VQ2000
- Max operating pressure: 0.8MPa
- Min. operating pressure: 0.15MPa
- Ambient & fluid temp: -5 to 50¡C
- Series 25A-VQ is compatible with secondary battery applications
