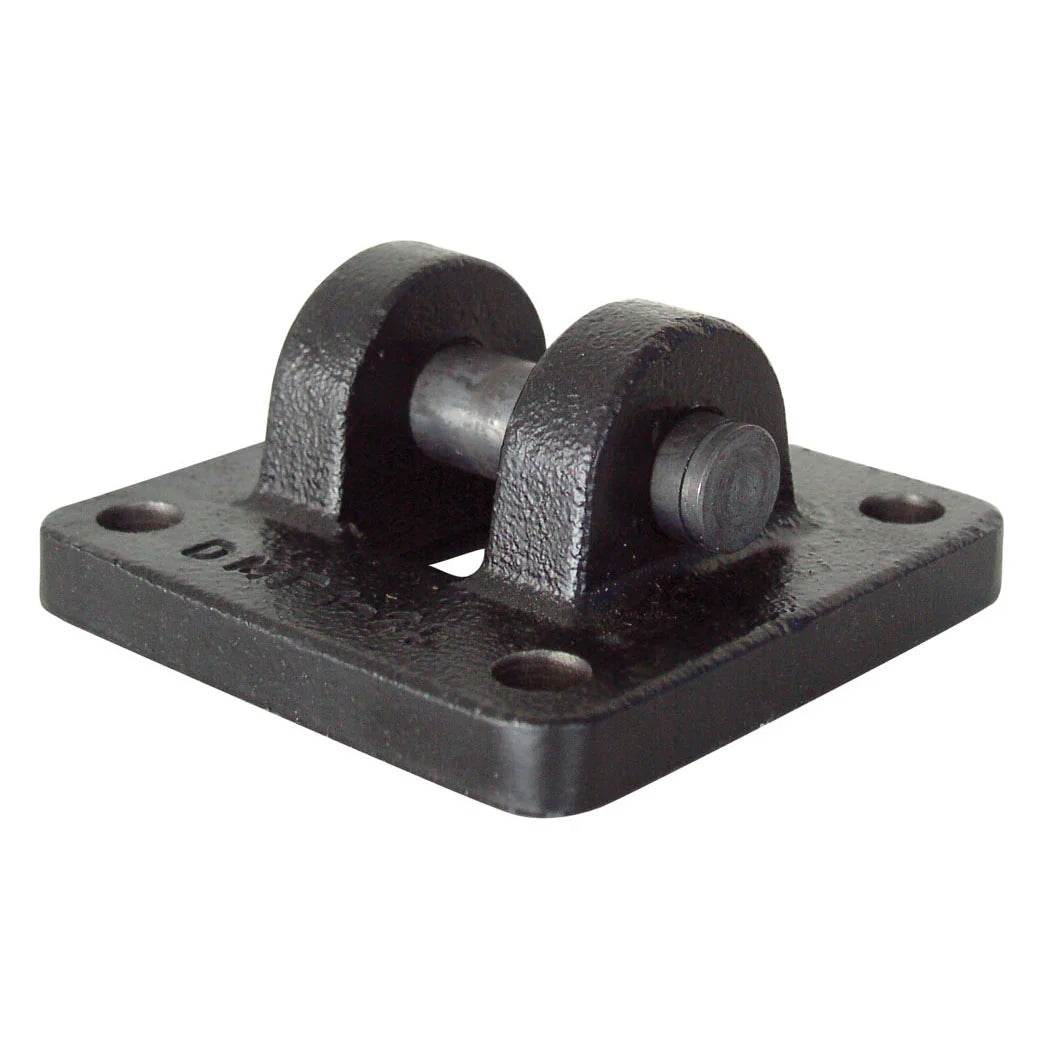

HAK Pneumatic Mounting Bracket For NFPA Series Air Cylinder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Overall Dimensions
| CYL DIAMETER | E | F | M | R | CB | CD | CW | DD | FL | MR | TF | UF | PART NO. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 3/8 | 1/2 | 1.63 | 3/4 | 1/2 | 1/2 | 3/8 | 5/8 | 5/8 | 2 3/4 | 3 1/2 | |
| 2 | 2 1/2 | 3/8 | 1/2 | 1.63 | 3/4 | 1/2 | 1/2 | 3/8 | 5/8 | 5/8 | 2 3/4 | 3 1/2 | |
| 2 1/2 | 2 1/2 | 3/8 | 1/2 | 1.63 | 3/4 | 1/2 | 1/2 | 3/8 | 5/8 | 5/8 | 2 3/4 | 3 1/2 | |
| 3 1/4 | 3 1/2 | 5/8 | 3/4 | 2.55 | 1 1/4 | 3/4 | 5/8 | 1/2 | 7/8 | 7/8 | 3 3/4 | 4 3/4 | |
| 4 | 3 1/2 | 5/8 | 3/4 | 2.55 | 1 1/4 | 3/4 | 5/8 | 1/2 | 7/8 | 7/8 | 3 3/4 | 4 3/4 | |
| 5 | 3 1/2 | 5/8 | 3/4 | 2.55 | 1 1/4 | 3/4 | 5/8 | 1/2 | 7/8 | 7/8 | 3 3/4 | 4 3/4 | |
| 6 | 4 1/2 | 7/8 | 1 | 3.25 | 1 1/2 | 1 | 3/4 | 5/8 | 1 1/4 | 1 1/4 | 4 1/2 | 5 3/4 | |
| 8 | 4 1/2 | 7/8 | 1 | 3.25 | 1 1/2 | 1 | 3/4 | 5/8 | 1 1/4 | 1 1/4 | 4 1/2 | 5 3/4 |
