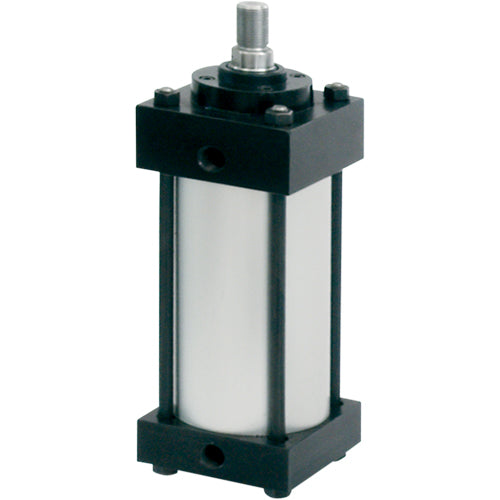

HAK Pneumatic NAS-O Series Aluminum Cylinder with Oversize Rod Diameters(NFPA Standard)

Use this text to encourage communication or promote sharing on social networks.

You can also add links

NAS-O Series Cylinders Internal Structure

Screenshot 2024 11 21 223331
Edit
NUMBER NAME NUMBER NAME
A HEAD & CAP: BLACK ANODIZED, PRECISION MACHINED ALUMINUM I BEARING RETAINER: WAVE BAND CLIP ALLOWS FOR EASY REMOVAL
B PISTON: PRECISION MACHINED (6061-T6) SOLID ALUMINUM WITH MAGNET - PERMANENT LUB. GROOVE G BEARING SEAL: STANDARD BUNA NITRILE
C CYLINDER TUBE: ALUMINUM (6063-T6) PORT HOLE EXTRUDED, CLEARCOAT ANODIZED I.D. K PISTON SEALS: STANDARD BUNA NITRILE PRESSURE ENERGIZED WEARCOMPENSATING LOW FRICTION
D TIE RODS: # 303 STAINLESS STEEL L CUSHION SEALS: HEAVY DUTY PRESS FIT EXTRA LONG LIFE
E PISTON ROD: CHROME PLATED (1045) MATERIAL .005 PER SIDE, 50-55 ROCKWELL 75,OOO P.S.I. YIELD M ADJUSTING SCREWS: ONE PIECE FULL THREAD NEEDLE
F ROD BEARING: PRECISION MACHINED (93200) BEARING BRONZE, DOUBLESEAL CAPABILITY N SOCKET NUT: (4) ROD END ONLY HEAT TREATED & BLACK OXIDED
G ROD WIPER: STANDARD BUNA NITRILE, DUAL FUNCTION WIPER -SECONDARY ROD SEAL O END SLEEVE: CAPSCREW RETAINED PISTON ASSEMBLY EASILY REMOVED
H ROD SEAL: STANDARD BUNA NITRILE PRIMARY SEALPRESSURE ENERGIZED P RETAINER FOR 6” BORE OVERSIZED ROD AND 8” BORE ALL ROD SIZES

How to Order a Cylinder

Edit
Series Bore Size(inch) X Stroke(inch) S Cushioning Mount Rod Diameter Rod End Thread
NAS-O 4" X 15" Magnet Check Cushioning Types NFPA MF2 Check MM Chart in Overall Dimensions Check Rod End Type Chart

Standard Stroke:

Edit
Bore Size(inch) Standard Stroke(inch)
1 1/2" 1",2",3",4",5",6",7",8",9",10",11",12",13",14",15",16",17",18",19",20",21",22",23",24"
2" 1",2",3",4",5",6",7",8",9",10",11",12",13",14",15",16",17",18",19",20",21",22",23",24"
2 1/2" 1",2",3",4",5",6",7",8",9",10",11",12",13",14",15",16",17",18",19",20",21",22",23",24"
3 1/4" 1",2",3",4",5",6",7",8",9",10",11",12",13",14",15",16",17",18",19",20",21",22",23",24"
4" 1",2",3",4",5",6",7",8",9",10",11",12",13",14",15",16",17",18",19",20",21",22",23",24"
5" 1",2",3",4",5",6",7",8",9",10",11",12",13",14",15",16",17",18",19",20",21",22",23",24"
6" 1",2",3",4",5",6",7",8",9",10",11",12",13",14",15",16",17",18",19",20",21",22",23",24"
8" 1",2",3",4",5",6",7",8",9",10",11",12",13",14",15",16",17",18",19",20",21",22",23",24"

Cushioning

NN - No cushions  / AA - Cushioned both ends / NA - No cushion rod end, cushion blind end​ / AN - Cushion rod end, no cushion blind end

Note: The cushion is not available at the head end on the 1 1/2" Bore

Overall Dimensions

dimentions 1 road
Edit
BORE A B R C DD E EE F G J KK LB MM P RM V Y ZB
1 1/2" 1 1/8 1 5/16 1.43 5/8 1/4 - 28 2 1/4 -- 1 1/2 1 3/4-16 3 5/8 1 2 3/16 -- 3/4 2 9/32 5
2" 1 1/8 1 1/2 1.84 5/8 5/16-24 2 1/2 3/8 -- 1 1/2 1 3/4-16 3 5/8 1 2 3/16 -- 3/4 2 9/32 5
2 1/2" 1 1/8 1 1/2 2.19 5/8 5/16-24 3 3/8 -- 1 1/2 1 3/4-16 3 3/4 1 2 5/16 -- 3/4 2 9/32 5 1/8
3 1/4" 1 5/8 2 2.78 3/4 3/8 - 24 3 3/4 1/2 -- 1 3/4 1 1/4 1-14 4 1/4 1 3/8 2 5/8 -- 7/8 2 11/16 5 7/8
4" 1 5/8 2 3.32 3/4 3/8 - 24 4 1/2 1/2 -- 1 3/4 1 1/4 1-14 4 1/4 1 3/8 2 5/8 -- 7/8 2 11/16 5 7/8
5" 1 5/8 2 4.12 3/4 1/2 - 20 5 1/2 1/2 -- 1 3/4 1 1/4 1-14 4 1/4 1 3/8 2 7/8 -- 7/8 2 11/16 6 1/8
6" 2 2 3/8 4.88 3/4 1/2 - 20 6 1/2 3/4 19/32 2 1 1/2 1 1/4-12 5 1 3/4 3 1/8 3.875 .5312 3 1/16 6 7/8
8" 2 2 3/8 6.44 3/4 -- 8 1/2 3/4 19/32 2 1 1/2 1 1/4-12 5 1/8 1 3/4 3 1/4 3.875 .5312 3 1/16 7
Note:  Hex nuts apply to 8.00” only / Round Cartridge Retainer Plate / (RM DIM) on 6" OVERSIZE AND 8" Bore All Rod Diameters.

Rod End Type

road types
Edit
ROD DIA A C D V CC FF KK
1 1 1/8 5/8 7/8 3/4 7/8-14 1-14 3/4-16
1 3/8 1 5/8 3/4 1 3/16 7/8 1 1/4-12 1 3/8-12 1-14
1 3/4 2 3/4 1 1/2 1.125 1 1/2-12 1 3/4-12 1 1/4-12
Note: 6” Bore and 8” Bore F + V= 1.125

NAS-O-D Series Cylinders Double Rod End Dimensions

dimentions
Edit
BORE F G LD ZM K
1 1/2 -- 1 1/2 4 1/8 6 7/8 --
2 -- 1 1/2 4 1/8 6 7/8 --
2 1/2 -- 1 1/2 4 1/4 7 --
3 1/4 -- 1 3/4 4 3/4 8 --
4 -- 1 3/4 4 3/4 8 --
5 -- 1 3/4 5 8 1/4 --
6 19/32 2 5 1/2 9 1/4 --
8 19/32 2 5 5/8 9 3/8 9/16
Note: 8.00” LD + Stoke + Fx2

Specification

Edit
Available Stroke 1"~ 24"
Working Medium Air
Working Pressure Range 14.5 ~ 145 PSI
Insured Pressure Resistance 195 PSI
Operating Temperature Range (-50~70°C)
Operating Speed Range 50~800 mm/s
Cylinder Type Adjustable Cushion
Motion Pattern Double Acting


NAS Series Cylinder Mounting Types

Detachable Eye Mount with pin (NFPA MP4)

Detachable Eye Mount with pin (NFPA MP4)
Edit
BORE CB CD FL L M XD
1 1/2 3/4 1/2 1 1/8 3/4 5/8 6 1/8
2 3/4 1/2 1 1/8 3/4 5/8 6 1/8
2 1/2 3/4 1/2 1 1/8 3/4 5/8 6 1/4
3 1/4 1 1/4 3/4 1 7/16 1 1/4 7/8 7 3/4
4 1 1/4 3/4 1 7/16 1 1/4 7/8 7 3/4

Clevis Mount with pin (NFPA MP1)

Clevis Mount with pin (NFPA MP1)
Edit
BORE CB CD CW L M XC
1 1/2 3/4 1/2 1/2 3/4 5/8 5 3/4
2 3/4 1/2 1/2 3/4 5/8 5 3/4
2 1/2 3/4 1/2 1/2 3/4 5/8 5 7/8
3 1/4 1 1/4 3/4 5/8 1 1/4 7/8 7 1/8
4 1 1/4 3/4 5/8 1 1/4 7/8 7 1/8
5 1 1/4 3/4 5/8 1 1/4 7/8 7 3/8
6 1 1/2 1 3/4 1 1/2 1 1/8 8 3/8

Detachable Clevis Mount with pin (NFPA MP2)

Detachable Clevis Mount with pin (NFPA MP2)
Edit
BORE CB CD CW FL L M XD
1 1/2 3/4 1/2 1/2 1 1/8 3/4 5/8 6 1/8
2 3/4 1/2 1/2 1 1/8 5/8 5/8 6 1/8
2 1/2 3/4 1/2 1/2 1 1/8 3/4 5/8 6 1/4
3 1/4 1 1/4 3/4 5/8 1 7/8 1 1/4 7/8 7 3/4
4 1 1/4 3/4 5/8 1 7/8 1 1/4 7/8 7 3/4
5 1 1/4 3/4 5/8 1 7/8 1 1/4 7/8 8
6 1 1/2 1 3/4 2 1/4 1 1/2 1 1/8 9 1/8

Detachable Clevis Mount with pin (NFPA MP1)

Detachable Clevis Mount with pin (NFPA MP1)
Edit
BORE CB CD CW L M XC K
8 1 1/2 1 3/4 1 1/2 1 1/8 8 1/4 9/16

Detachable Clevis Mount with pin (NFPA MP2)

Detachable Clevis Mount with pin (NFPA MP2)
Edit
BORE CB CD CW L M XD K FL
8 1 1/2 1 3/4 1 1/2 1 1/2 9 1/4 9 2 1/4

Head Trunnion Mount (NFPA MT1)

Head Trunnion Mount (NFPA MT1)
Edit
BORE E TD TL UT XJ XG
1 1/2 2 1 1 4 4 1/2 --
2 2 1/2 1 1 4 1/2 4 1/2 2 1/8
2 1/2 3 1 1 5 4 5/8 2 1/8
3 1/4 3 1/4 1 1 5 3/4 5 1/4 2 1/2
4 4 1/2 1 1 6 1/2 5 1/4 2 1/2
5 5 1/2 1 1 7 1/2 6 1/2 2 1/2
6 6 1/2 1 3/8 1 3/8 9 1/4 6 1/8 2 7/8
8 8 1/2 2 1/2 1 3/8 11 1/4 6 1/4 2 7/8

Intermediate Trunnion Mount (NFPA MT4)

Intermediate Trunnion Mount (NFPA MT4)
Edit
BORE E BD TD TL TM UM UV X1
1 1/2 2 1 1/4 1 1 2 1/2 4 1/2 2 1/2 PURCHASER TO SPECIFY
2 2 1/2 1 1/2 1 1 3 5 3 PURCHASER TO SPECIFY
2 1/2 3 1 1/2 1 1 3 1/2 5 1/2 3 1/2 PURCHASER TO SPECIFY
3 1/4 3 3/4 2 1 1 4 1/2 6 1/2 4 1/4 PURCHASER TO SPECIFY
4 4 1/2 2 1 1 5 1/2 7 1/4 5 PURCHASER TO SPECIFY
5 5 1/2 2 1 1 6 1/4 8 1/4 6 PURCHASER TO SPECIFY
6 6 1/2 2 1/2 1 3/8 1 3/8 7 5/8 10 3/8 7 PURCHASER TO SPECIFY
8 8 1/2 2 1/2 1 3/8 1 3/8 9 3/4 12 1/2 9 1/2 PURCHASER TO SPECIFY

Rear Flange Mount (NFPA MF2) /Front Flange Mount (NFPA MF1)

Rear Flange Mount
Edit
BORE B F FB R TF UF V W ZF ZB
1 1/2 1 5/16 3/8 5/16 1.43 2 3/4 3 3/8 1/2 1 5 5
2 1 1/2 3/8 3/8 1.84 3 3/8 4 1/8 1/2 1 5 3/8 5
2 1/2 1 1/2 3/8 3/8 2.19 3 7/8 4 5/8 1/2 1 5 1/2 5 1/8
3 1/4 2 5/8 7/16 2.76 4 11/16 5 1/2 3/8 1 6 1/2 5 7/8
4 2 5/8 7/16 3.32 5 7/6 6 1/4 3/8 1 6 1/2 5 7/8
5 2 5/8 9/16 4.10 6 5/8 7 5/8 3/8 1 6 3/4 6 1/8
6 2 3/8 3/4 9/16 4.88 7 5/8 8 5/8 3/8 1 1/8 7 5/8 6 7/8

Integral Head Mount (NFPA ME3) / Integral Head Mount (NFPA ME4)

Integral Head Mount
Edit
BORE E G J K EB TE
8 8.5 2 1.50 0.625 0.625 7.57

Bottom Tap Mount (NFPA MS4)

MS4
Edit
BORE NT TK TN SN XT ZB
1 1/2 1/4-20 3/8 5/8 2 1/4 1 15/16 4 5/8
2 5/16-18 1/2 7/8 2 1/4 2 5/16 4 5/8
2 1/2 3/8-16 5/8 1 1/4 2 3/8 2 15/16 4 3/4
3 1/4 1/2-13 3/4 1 1/2 2 5/8 2 7/16 5 5/8
4 1/2-13 3/4 2 1/16 2 5/8 2 7/16 5 5/8
5 5/8-11 1 2 11/16 2 7/8 2 7/16 5 7/8
6 3/4-10 1 1/8 3 1/4 3 1/8 2 13/16 6 5/8
8 3/4-10 1 1/8 4 1/2 3 1/4 3 1/16 7

Angle Mount (NFPA MS1)

MS1 angle
Edit
BORE AB AH AL AO AT S SA XA
1 1/2 7/16 1 3/16 1 3/8 1/8 1 1/4 5 5/8 5 5/8
2 7/16 1 7/16 1 3/8 1/8 1 3/4 5 5/8 5 5/8
2 1/2 7/16 1 5/8 1 3/8 1/8 2 1/4 5 3/4 5 3/4
3 1/4 9/16 1 15/16 1 1/4 1/2 3/16 2 3/4 6 3/4 6 3/4
4 9/16 2 1/4 1 1/4 1/2 3/16 3 1/2 6 3/4 6 3/4
5 11/16 2 3/4 1 3/8 5/8 3/16 4 1/4 7 1/4 7 1/4
6 13/16 3 1/4 1 3/8 5/8 1/4 5 1/4 7 3/4 7 3/4
8 13/16 4 1/4 1 13/16 11/16 1/4 7 1/8 8 3/4 8 13/16

Side Lug Mount (NFPA MS2)

Side Lug Mount (NFPA MS2)
Edit
BORE SB SJ SS ST SU SW TS US ZB XS
1 1/2 13/32 5/8 2 7/8 1/2 1 1/8 3/8 2 3/4 3 1/2 4 5/8 1 3/4
2 13/32 5/8 2 7/8 1/2 1 1/8 3/8 3 1/4 4 4 5/8 1 3/4
2 1/2 13/32 5/8 3 1/2 1 1/8 3/8 3 3/4 4 1/2 5 1/8 1 3/4
3 1/4 17/32 3/4 3 1/4 3/4 1 1/4 1/2 4 3/4 5 3/4 5 7/8 2 1/8
4 25/32 3/4 3 1/4 3/4 1 1/4 1/2 5 1/2 6 1/2 5 7/8 2 1/8
5 25/32 9/16 3 1/8 1 1 1/16 11/16 6 7/8 8 1/4 6 1/8 2 5/16
6 25/32 13/16 3 5/8 1 1 5/16 11/16 7 7/8 9 1/4 6 7/8 2 9/16
8 25/32 13/16 3 3/4 1 1 5/16 11/16 9 7/8 11 1/4 7 2 9/16

End Lugs Mount (NFPA MS7)

End Lugs Mount (NFPA MS7)
Edit
BORE EB EF EL EO ET R SE ZE
1 1/2 5/16 1 1/8 3/4 1/4 1/2 1.43 5 1/2 5 5/8
2 3/8 1 5/16 15/16 5/16 3/4 1.84 5 7/8 5 7/8
2 1/2 3/8 1 7/16 1 1/16 5/16 3/4 2.19 6 1/4 6 1/8
3 1/4 7/16 1 1/2 7/8 3/8 1 2.76 6 5/8 6 7/8
4 7/16 1 5/8 1 3/8 1 1/4 3.32 6 7/8 7
5 9/16 1 11/16 1 1/16 1/2 1 1/2 4.10 7 1/4 7 7/16
6 9/16 1 3/4 1 1/8 1/2 1 1/2 4.88 7 3/4 8 1/8
8 11/16 1 3/4 1 1/8 5/8 2 1/16 6.44 7 3/8 8 1/2

Tie Roads Extended Both Ends (NFPA MX1)

Tie Roads Extended Both Ends (NFPA MX1)
Edit
BORE AA BB DD F K R
1 1/2 2.02 1.00 1/4-28 -- 7/32 1.428
2 2.60 1.125 5/16-24 -- 17/64 1.838
2 1/2 3.10 1.125 5/16-24 -- 17/64 2.192
3 1/4 4.00 1.375 3/8-24 -- 5/16 2.758
4 4.75 1.375 3/8-24 -- 5/16 3.323
5 5.80 1.750 1/2-20 -- 7/16 4.101
6 6.90 1.750 1/2-20 19/32 7/16 4.879
8 9.10 2.250 5/8-18 19/32 9/16 6.435

Tie Roads Extended Cap End (NFPA MX2)

Tie Roads Extended Cap End (NFPA MX2)
Edit
BORE AA BB DD F K R
1 1/2 2.02 1.00 1/4-28 -- 7/32 1.428
2 2.60 1.125 5/16-24 -- 17/64 1.838
2 1/2 3.10 1.125 5/16-24 -- 17/64 2.192
3 1/4 4.00 1.375 3/8-24 -- 5/16 2.758
4 4.75 1.375 3/8-24 -- 5/16 3.323
5 5.80 1.750 1/2-20 -- 7/16 4.101
6 6.90 1.750 1/2-20 19/32 7/16 4.879
8 9.10 2.250 5/8-18 19/32 9/16 6.435

Tie Roads Extended Head End (NFPA MX3)

Tie Roads Extended Head End (NFPA MX3)
Edit
BORE AA BB DD F K R
1 1/2 2.02 1.00 1/4-28 -- 7/32 1.428
2 2.60 1.125 5/16-24 -- 17/64 1.838
2 1/2 3.10 1.125 5/16-24 -- 17/64 2.192
3 1/4 4.00 1.375 3/8-24 -- 5/16 2.758
4 4.75 1.375 3/8-24 -- 5/16 3.323
5 5.80 1.750 1/2-20 -- 7/16 4.101
6 6.90 1.750 1/2-20 19/32 7/16 4.879
8 9.10 2.250 5/8-18 19/32 9/16 6.435
