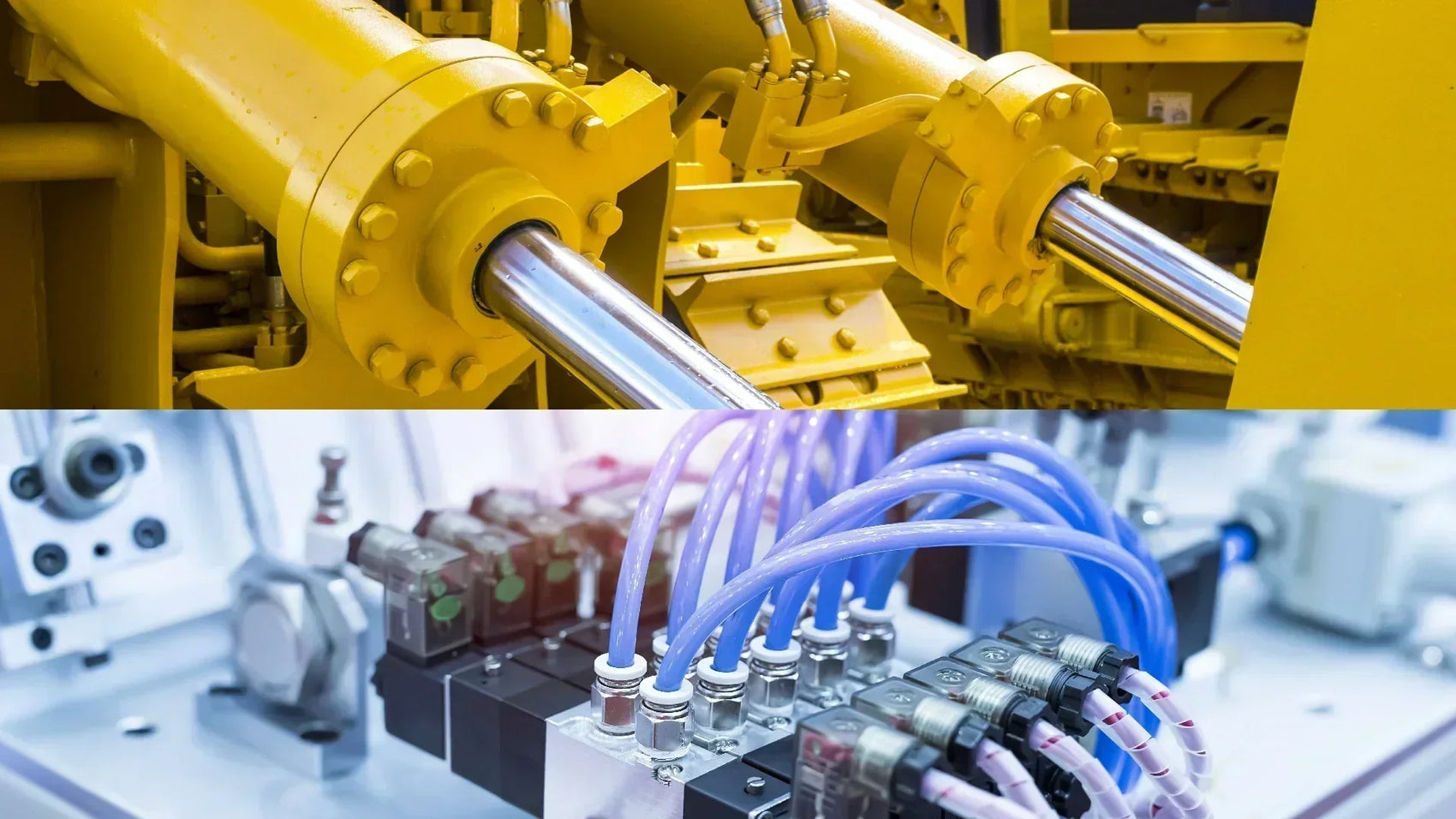

In the world of industrial automation and motion control, both pneumatic and hydraulic systems play vital roles in powering machinery. While they share the common principle of using fluid power to perform mechanical work, they differ significantly in the type of fluid used, system design, performance characteristics, and ideal applications.
So, what exactly sets pneumatic and hydraulic systems apart? Let’s break it down.
Medium Used: Air vs. Liquid
-
Pneumatic systems use compressed air or gas (usually dry air) to transmit power.
-
Hydraulic systems rely on incompressible liquids, typically oil-based fluids, to generate movement.
This fundamental difference in the working medium is the foundation for most of the performance variations between the two.
Pressure and Force Output
-
Hydraulics operate at much higher pressures, often up to 3,000–5,000 psi (or more). This allows them to produce greater force, making them ideal for heavy-duty applications like lifting, pressing, and forming.
-
Pneumatics, by contrast, typically function at 80–120 psi, limiting the force output but offering speed and responsiveness.
Use Case Insight: If you need to move a large industrial press, go hydraulic. If you want fast, repetitive movement for lightweight parts, go pneumatic.
Speed and Precision
-
Pneumatic systems are generally faster due to the low viscosity and compressibility of air, making them perfect for quick, repetitive tasks in packaging, assembly, and automation.
-
Hydraulic systems offer greater control and precision, especially at low speeds, because liquids don't compress, allowing smoother motion and consistent force.
Cleanliness and Safety
-
Pneumatics are cleaner—since air exhaust can be vented into the atmosphere with minimal filtration, there’s little risk of contamination.
-
Hydraulics, if not properly maintained, can leak fluid that’s hazardous or damaging in sensitive environments.
Industry Fit: Pneumatics are a natural choice for food, pharmaceutical, and electronics industries, while hydraulics dominate construction, automotive, and heavy machinery sectors.
System Size and Components
-
Pneumatics generally have a more compact system footprint, lighter components, and simpler piping.
-
Hydraulic components are bulkier and heavier, due to the need to handle higher pressures and manage fluid reservoirs and cooling systems.
