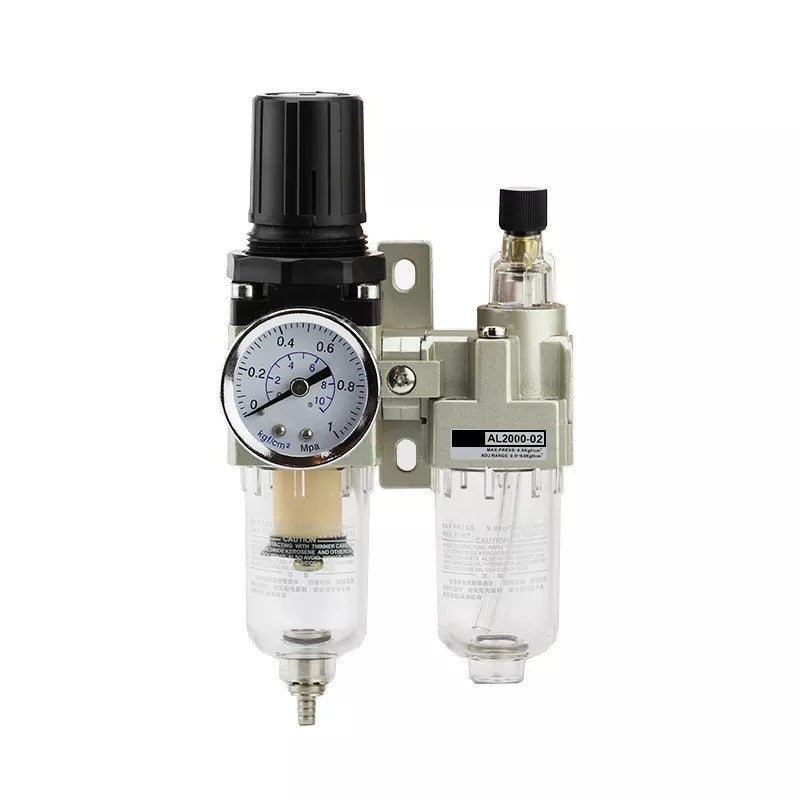

HAK Pneumatic 2 PC Filter Regulator Lubricator Combination FRL Unit 1/8" NPT (Inlets/Outlets), 5-125 PSI Adjustable Range, With Pressure Gauge For Air Prep Components 25 μ (AC2010-01).
Regular price
$71.66
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Dimensions
| Model | Flow Rate CFM | Port | Gauge Port | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Bracket | Weight kg (LB) | Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC2010-01(Manual Drain) | 18 | 1/8" NPT | 1/8" NPT | 164.5 | 78 | 45 | 90 | 56.8 | 30 | 40 | 24 | Y20T | 0.66 (1.45) | GE-1 1/2-160 |
Description
Filter: It Can Effectively Filter Impurities, Dust, Moisture, and Particles in the AirRegulating Function: With Pressures Ranging from 5-125 PSI, You Can Pull the Blue Button on the Filter and Rotate It to Reduce the Pressure.Lubrication: Add Oil into the Oil Cup from the Oil Filling Screw (Half cup), when the Air unit Working, Automatically the Oil Will Get an Automation Effect and Will Be Sent to the Parts and Elements of Air Tools to Lubricate and Keep Them Work Well.Specification
| Model Series | AC2010-01 |
|---|---|
| Port Size | 1/8" NPT |
| Port Size (pressure Gauge) | 1/8" NPT |
| Regulating Range | 7 - 125PSI (0.5 - 8.5 kgf/cm^2) |
| Max. Operating Pressure | 150PSI / (9.9 kgf/cm^2) |
| Operating Temperature | 40 - 140°F / (5 - 60°C) |
| Filtration | 25 Micron(Standard Sintered Brass Filter |
| Bowl Material | Polycarbonate (Standard) |
| Body Material | Die-Casting Aluminum |
| Construction / Regulator | Relieving Type |
| Seals | NBR |
| Filter Drain | Manual Drain |
| Air Flow Rate CFM | 18 |
| Service | For Air Only |
Filter Regulator Lubricator Flow Charts
