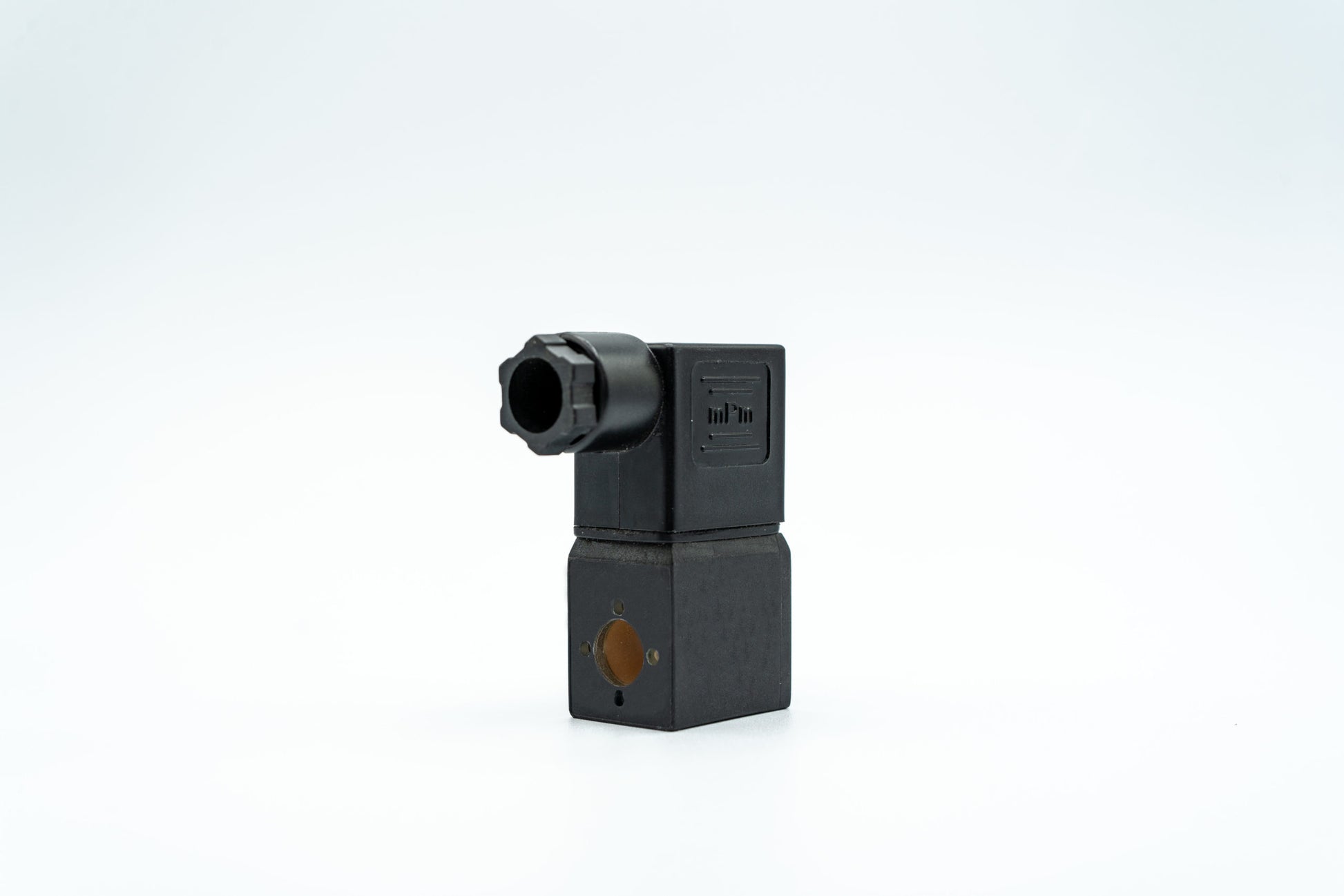

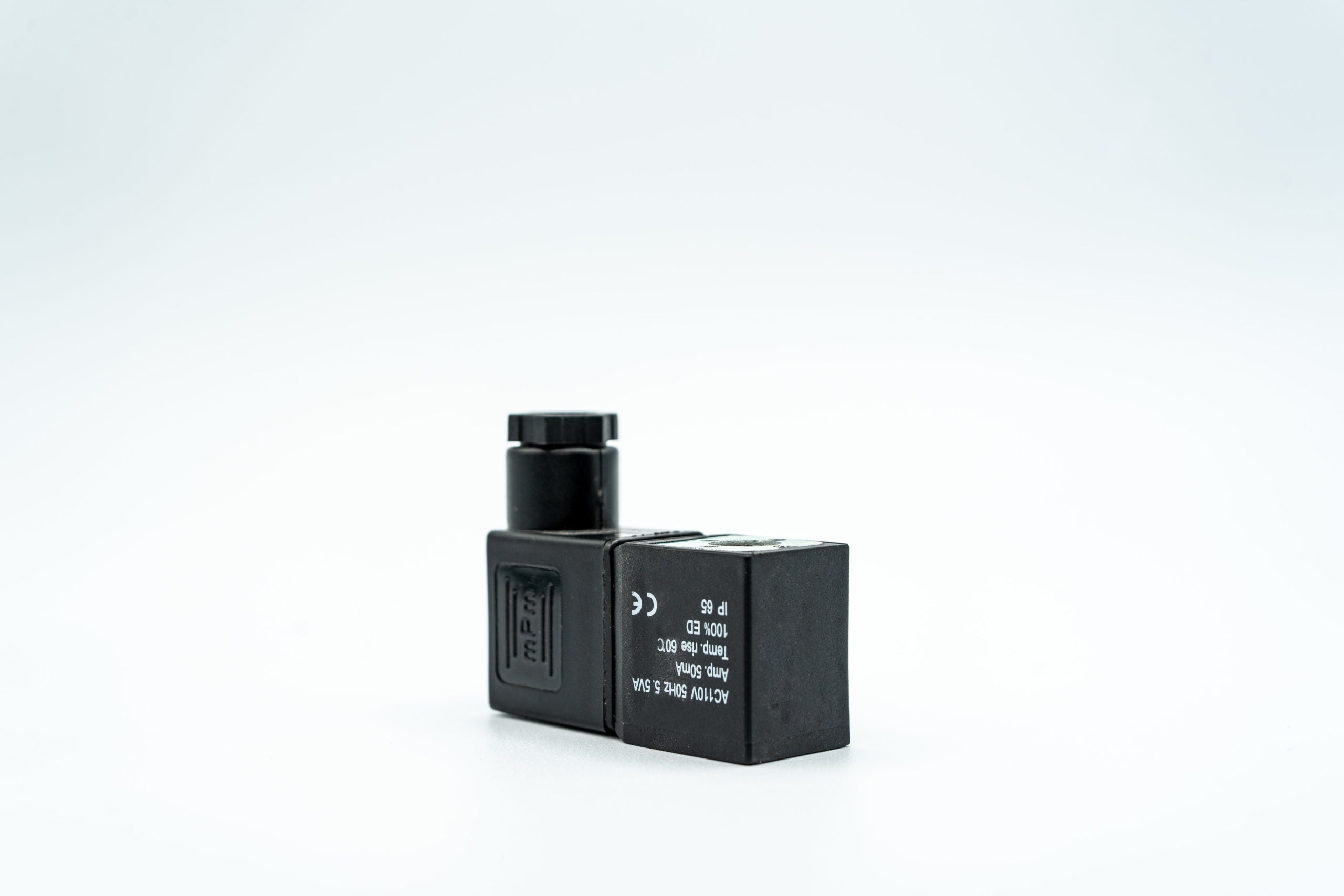

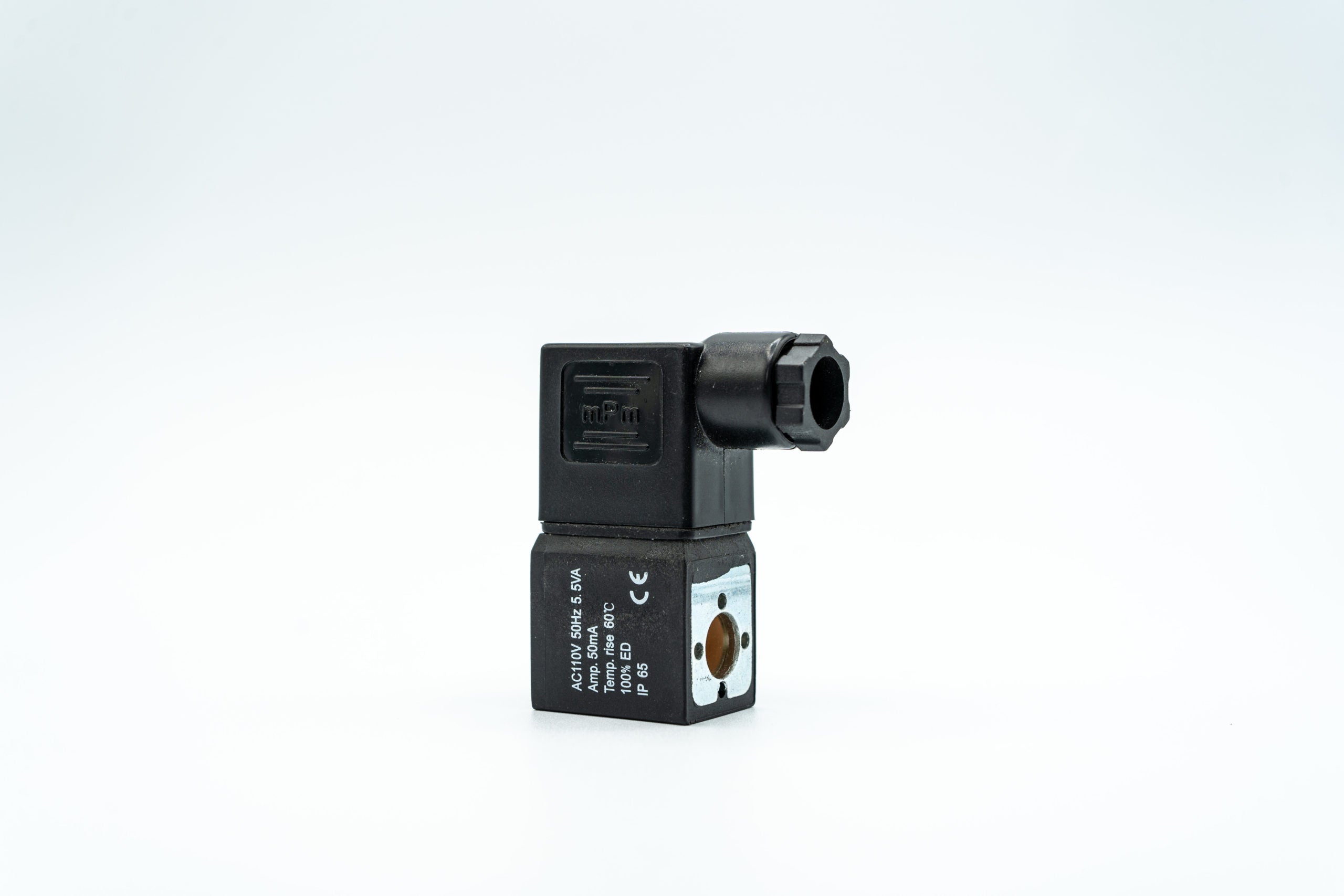

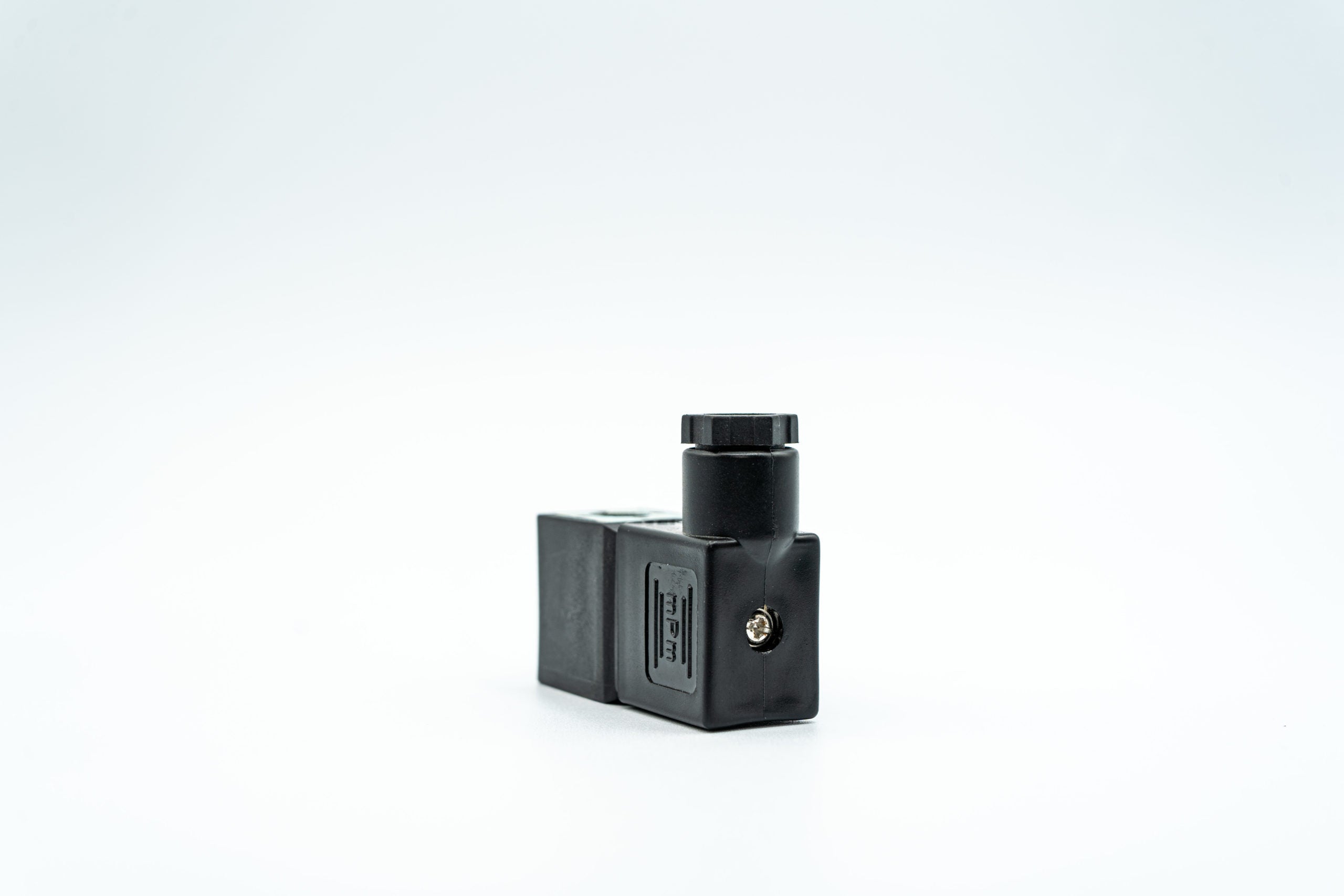

HAK Pneumatic Direct Control Valve 10mm Replacement Coil 100% ED
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Dimensions
[caption id="attachment_12231" align="aligncenter" width="570"]
10mm e1613046650911[/caption]Specification
| MODEL | |
|---|---|
| Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz) |
| Operation | 100% ED |
| Protection | IP65 |
| Insulation | F Class |
| Power | AC: 2.8 VA DC: 2.8 W |
| Wiring Form | Connector Type |
| Voltage Tolerance | (-10% To +10%) |
| orifice | 10mm |
| Application | 4V Series Pneumatic Solenoid Valves, 4V200 , 4V300 and 4V400 series |
| Working Temperature | (-5°C - 30°C) |
